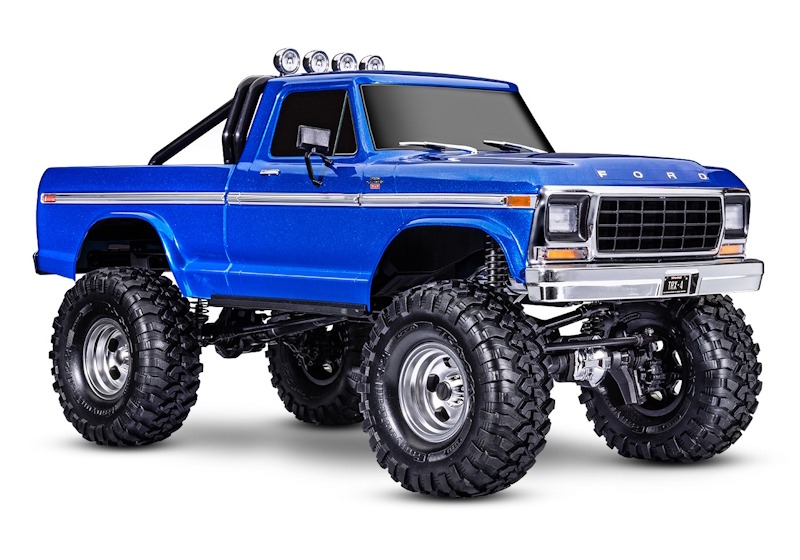

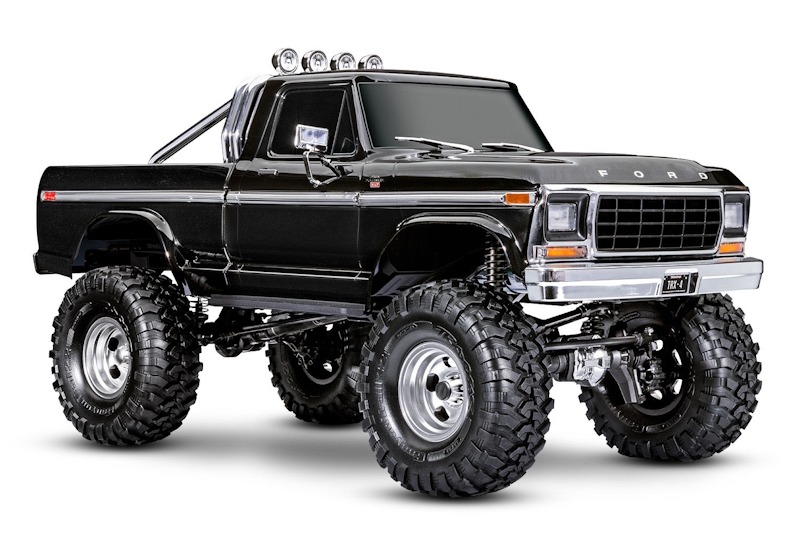

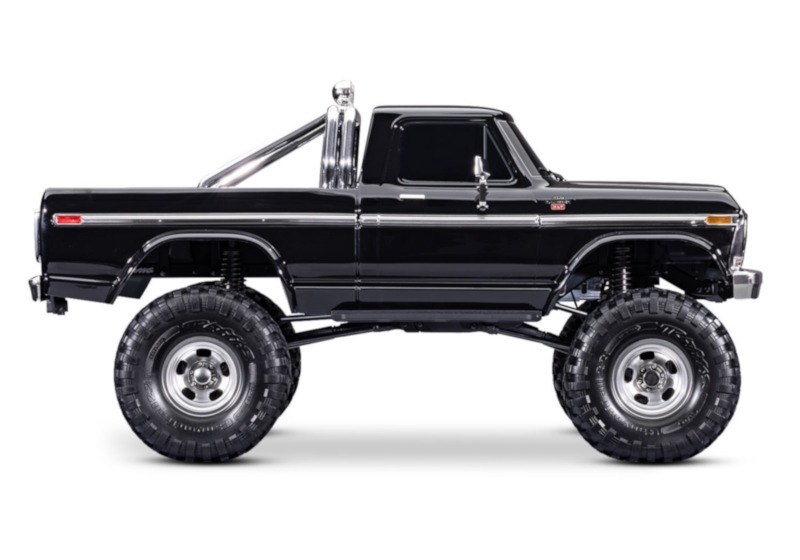

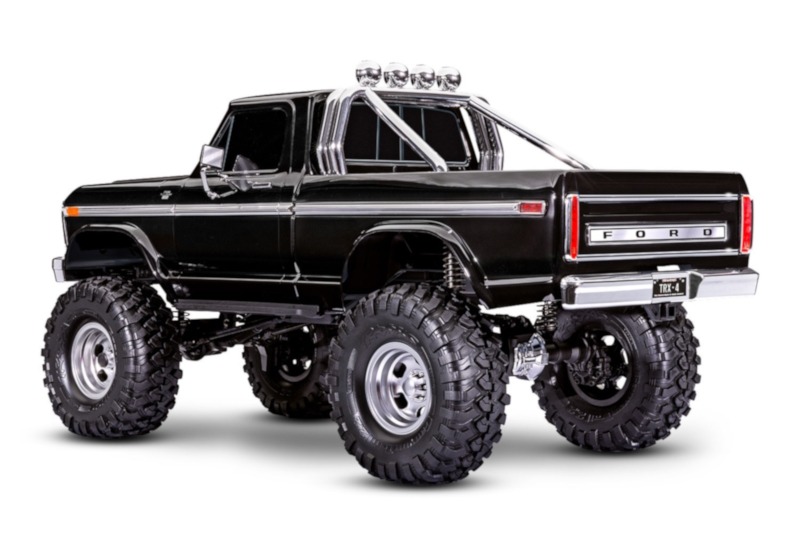

Traxxas – 92046-4 – TRX-4 High Trail Edition with 1979 Ford F-150 Truck Body: 4WD Electric Truck with TQi Traxxas Link Enabled 2.4GHz Radio System.
Scale and Trail®

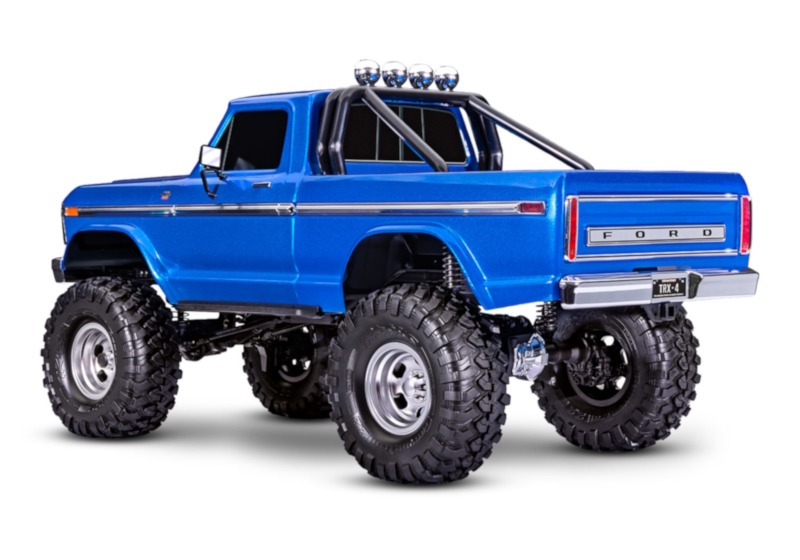

TRX-4® 1979 Ford® F-150® Ranger XLT is the latest truck to receive the High Trail Edition treatment with its striking replica body and high-riding stance. High Trail Edition trucks take adventure to new heights with factory-installed Long Arm Lift Kits and oversize tires to raise ground clearance over an inch higher than standard TRX-4s. The F-150 Ranger’s extended wheelbase further enhances TRX-4’s already legendary off-road capability for even more fun on the trail. TRX-4 F-150 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.

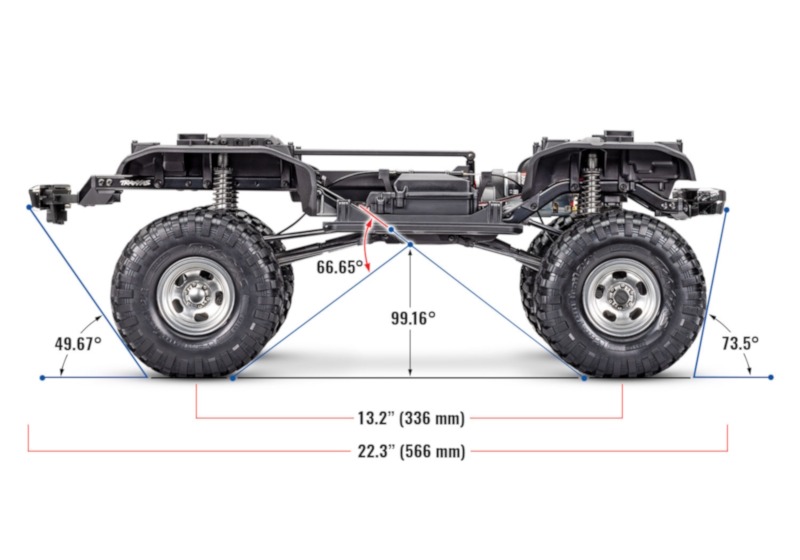

MODEL SPECS:
| Length: | 22.30 inches (566 mm) |
|---|---|
| Front Track: | 10.60 inches (270 mm) |
| Rear Track: | 10.60 inches (270 mm) |
| Center Ground Clearance: | 4 inches (99 mm) |
| Weight (w/o battery): | 7.34 pounds (3.33 kg) |
| Height (overall): | 10.82 inches (275 mm) |
| Wheelbase: | 13.23 inches (336 mm) |
| Approach Angle: | 73.5° |
| Departure Angle: | 49.67° |
| Breakover Angle: | 67° |
| Front Shock Length: | 4.33 inches (110 mm) |
| Rear Shock Length: | 4.33 inches (110 mm) |
| Front Wheels: | 2.2″ x 1.34″ (56 x 34 mm) |
| Rear Wheels: | 2.2″ x 1.34″ (56 x 34 mm) |
| Front Tires: | 5.3″ x 2.14″ (135 x 54 mm) |
| Rear Tires: | 5.3″ x 2.14″ (135 x 54 mm) |
FEATURES:
- Officially Licensed 1979 Ford® F-150® Ranger XLT Body

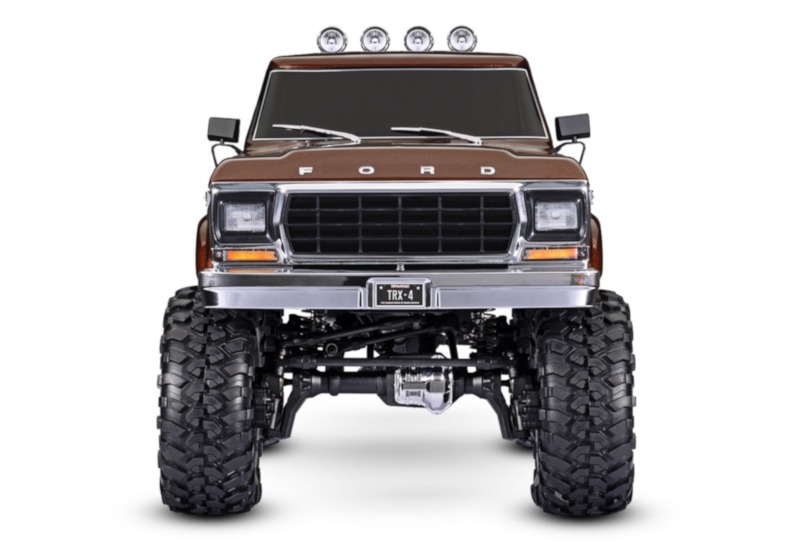

- Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
- LED-ready headlights, tail lights, and roll bar
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
- Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
- Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ – 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1″
- Maintains precise steering geometry
- Accommodates oversize 2.2″ wheels and tires
- TQi™ 2.4 GHz Radio System
- 4-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box with easy-access plug

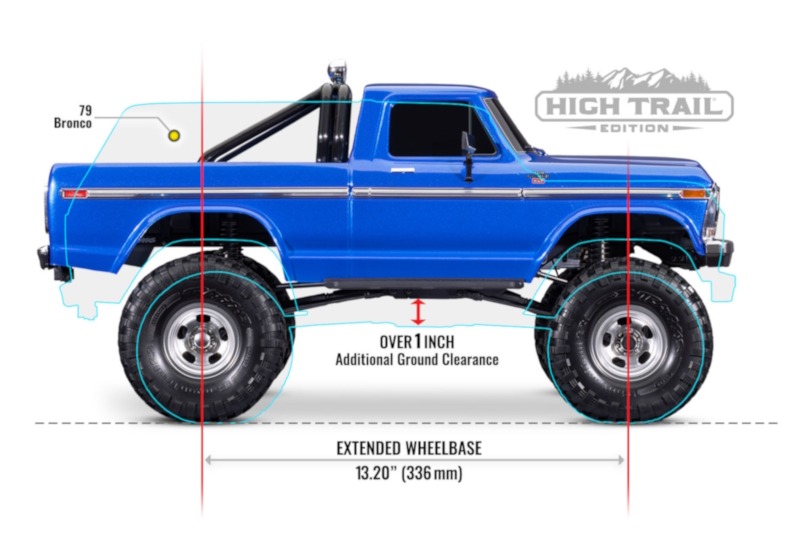

- Extended Wheelbase
- Long 336 mm wheelbase for improved stability

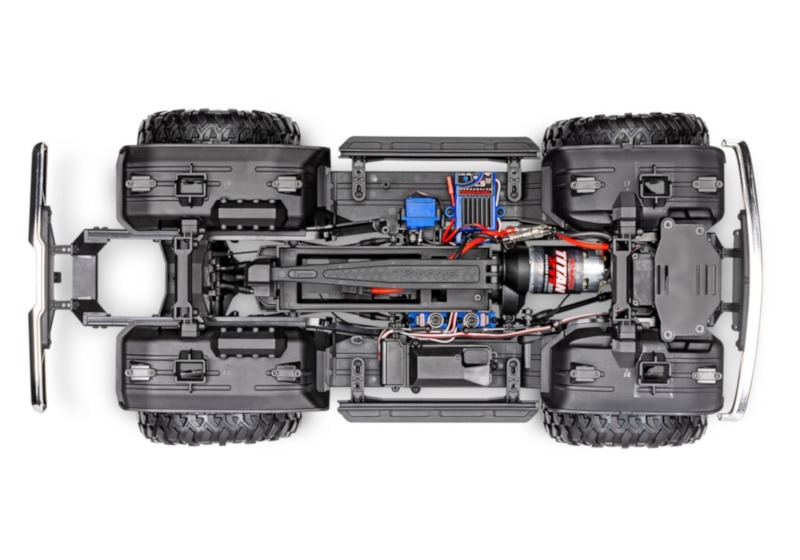

- Full-length 1.5 mm thick steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer

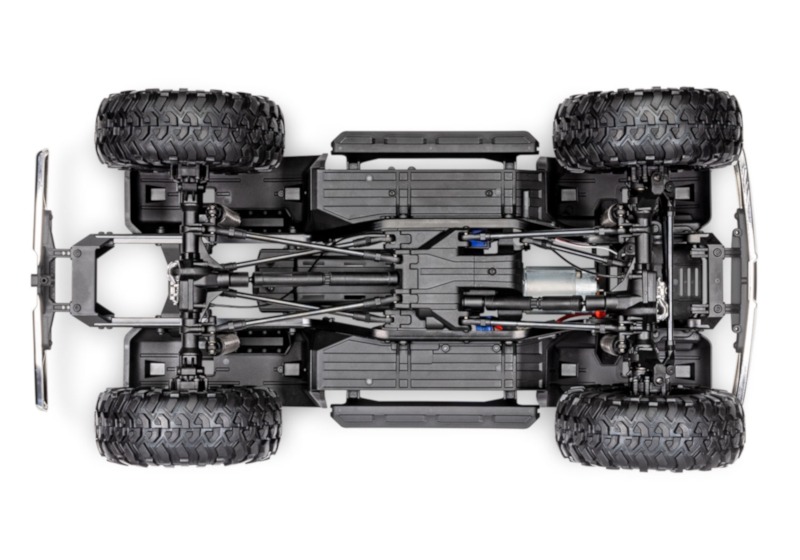

- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
- Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Extra-long aluminum bodies for greater articulation
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Oversize Wheels and Tires
- 2.2″ slotted mag wheels wheels with hub inserts
- Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
WHAT’S INCLUDED:
MODEL 92046-4: TRX-4® Scale and Trail® crawler with 1979 Ford® F-150® truck body and Long Arm Lift Kit: 1/10 Scale 4WD electric truck. Ready-To-Explore®, with TQi™ Traxxas Link™ enabled 2.4 GHz radio system, XL-5™ HV ESC (fwd/rev), and Titan® 550 motor.
What’s In The Box:
- TRX-4 Scale and Trail crawler
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
- Batteries
TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
-
Suitable Charger
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
