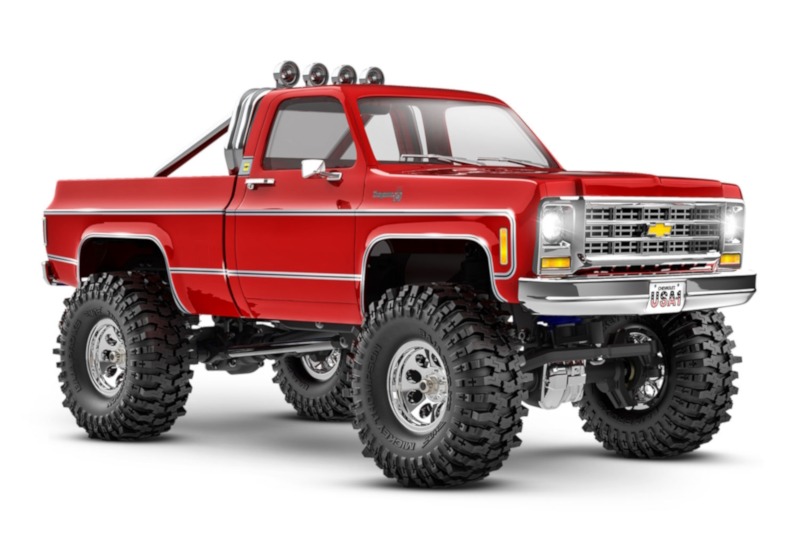

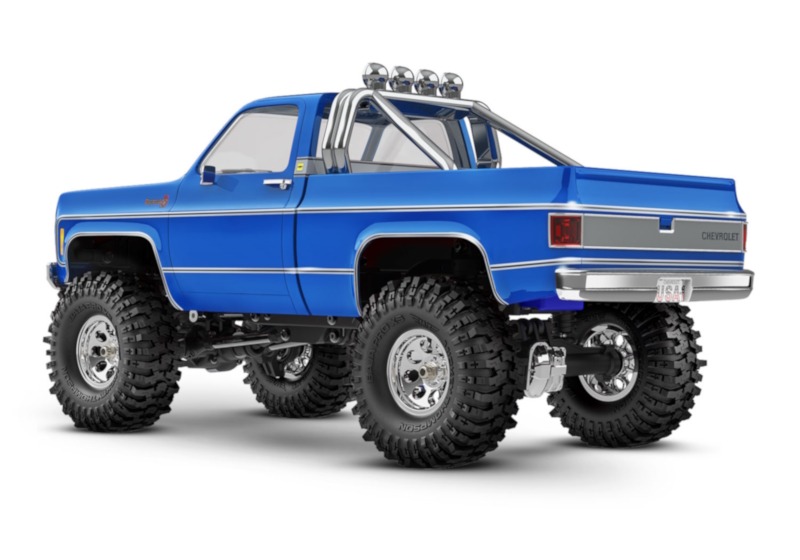

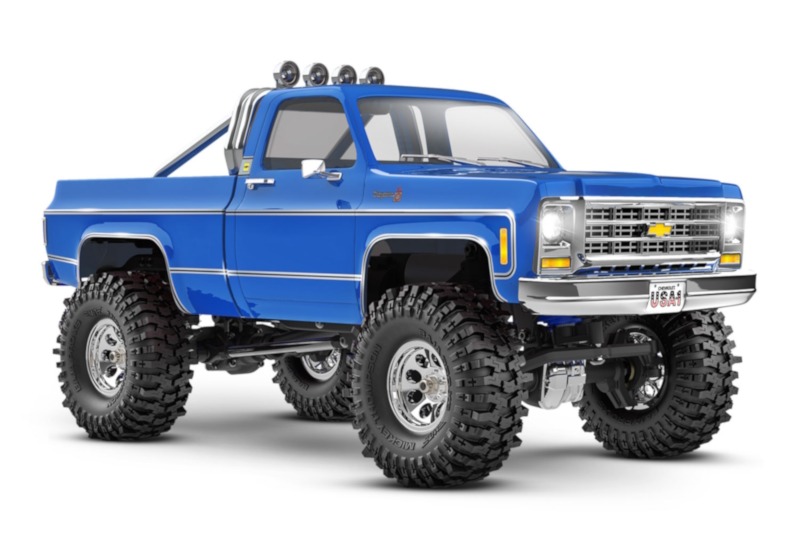

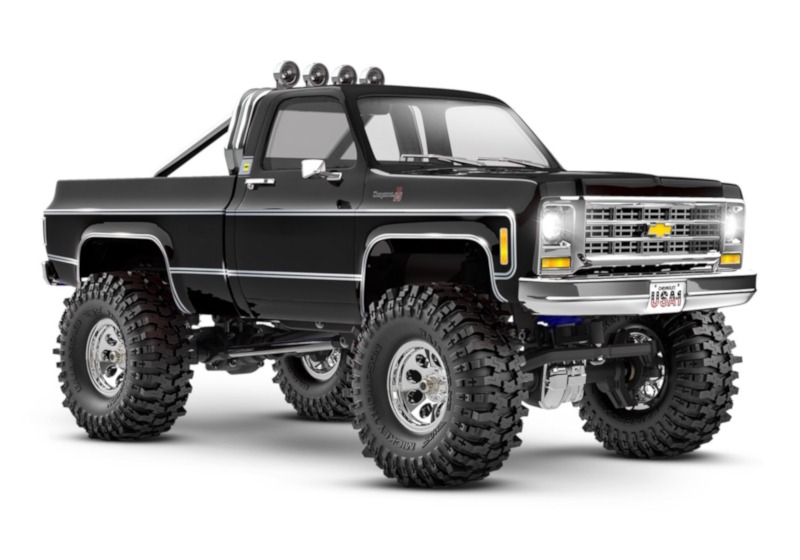

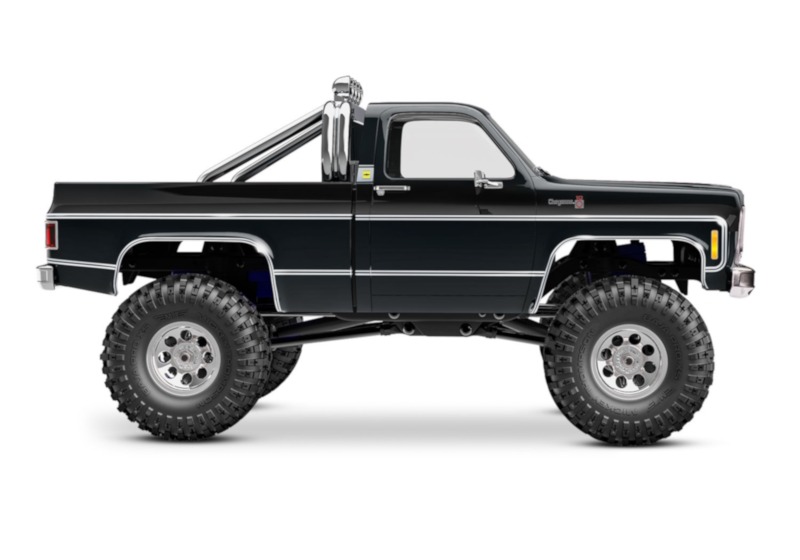

Traxxas – 97064-1 – TRX-4M Chevrolet K10 High Trail Edition
High Trail Performance for TRX-4M®
Small-scale adventure takes a big leap in performance with TRX-4M High Trail™ Edition trucks. Available with either a Chevrolet® K10 or Ford® F-150® body, High Trail trucks offer over 35% more center ground clearance than a standard TRX-4M. Both trucks ride on larger Mickey Thompson® Baja Pro™ XS tires with an extended wheelbase for even more all-terrain capability. From indoor fun to outdoor adventure, TRX-4M High Trail Edition pickups deliver the quality and performance you expect from Traxxas.
MODEL SPECS
| Name: | TRX-4M® Chevrolet® K10 High Trail® Edition |
|---|---|
| Type: | Trail / Crawler |
| Skill Level: | 1 |
| Scale: | 1/18 |
| Weight: | 1.03 lb (468 g) |
| Length: | 10.6 inches (269 mm) |
| Width: | 5.0 inches (127 mm) |
| Front Track: | 5.0 inches (127 mm) |
| Rear Track: | 5.0 inches (127 mm) |
| Height: | 5.0 inches (127 mm) |
MOTOR SPECS
| Name: | Titan 180 |
|---|---|
| Motor Type: | 87-turn brushed motor |
| Weight: | 1.16 ounces (33 g) |
| Length: | 1.66 inches (42 mm) |
| Diameter: | .81 inches (21 mm) |
ESC SPECS
| Name: | ECM 2.5™ |
|---|---|
| ESC Type: | Brushed |
| Case Size: | 1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm) |
| Weight: | .92 ounces ( 26 g) |
FEATURES
- Officially Licensed Chevrolet® K10 Clipless Body
- Highly-detailed ABS hard body
- Molded-in color won’t chip or flake
- Tough fender flares and rock sliders
- Realistic side mirrors, door handles, roll bar, & wipers

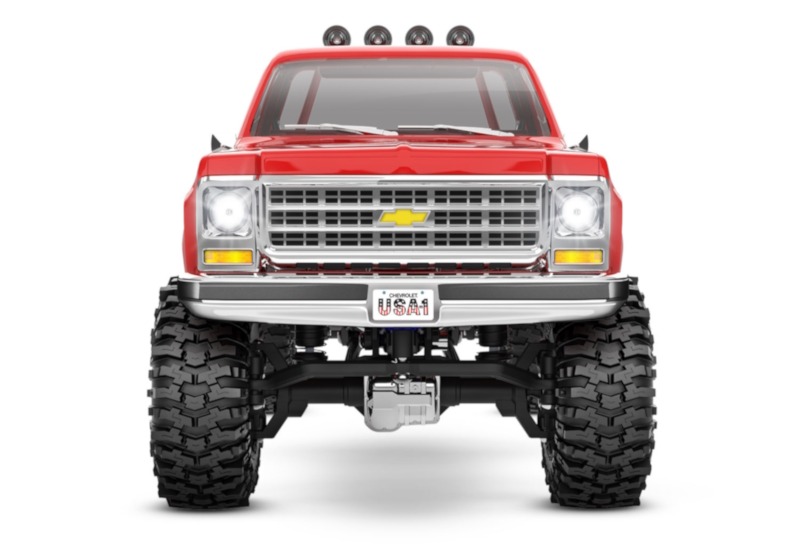

- LED headlights
- Heavy-duty latching clips
- Hold tightly on the trail
- Release in just seconds
- Highly-detailed ABS hard body
- ECM-2.5™ Electronic Control Module
- Incorporates ESC, receiver, and LED controller in one chassis
- Fully waterproof for all-weather fun
- Three drive profiles
- Sport Mode — forward / brake / reverse
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Built-in Pro Scale® LED functionality
- Two stage low voltage protection (LVD)
- Motor overload protection
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

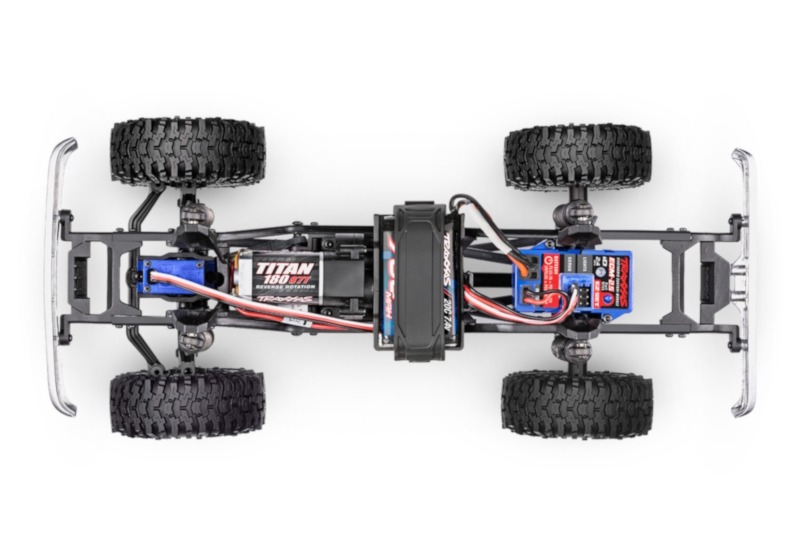

- Titan® 180 87-Turn Brushed Motor
- Fixed gear mesh doesn’t require adjustment
- Forward mounting position for improved crawling dynamics

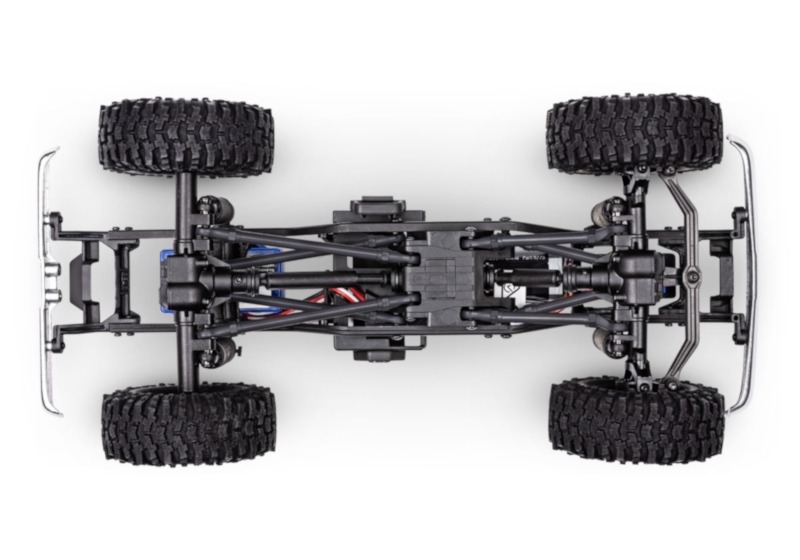

- Extended Heavy-Duty Steel Ladder Frame
- Deep C-channel design
- Thicker center section for maximum rigidity
- Rails run from bumper to bumper
- Driveline
- Full-time shaft-driven 4-wheel drive
- Solid steel axles
- Spool-equipped front and rear axles
- Heavy-duty CV center driveshafts
- Low-CG Battery Tray
- Concentrates weight lower for improved stability
- Wide rubber strap secures battery in place
- Optional Transmission Ratios (sold separately)
- Optional Low Range or Speed Gearing transmissions
- Modular design swaps out in minutes
- Steering
- Heavy-duty 2065T steering servo
- Metal main gear
- Superior 45° steering angle
- Direct steering (no servo saver)
- Heavy-duty 2065T steering servo

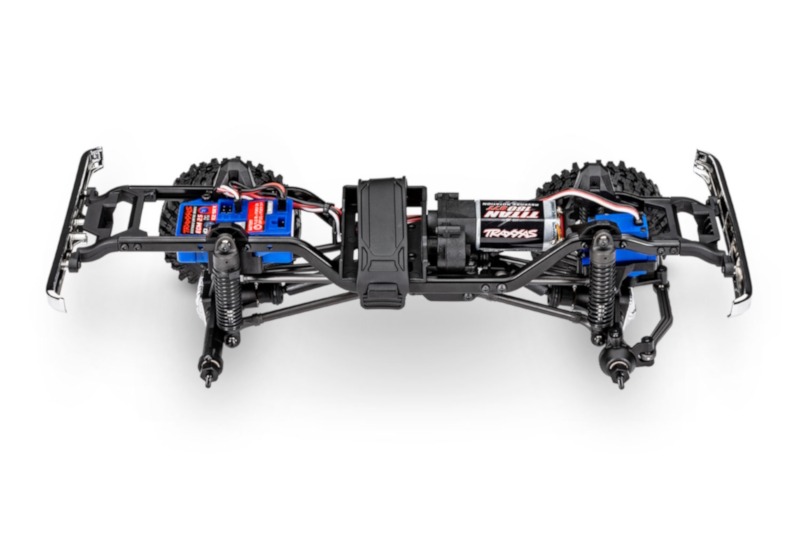

- Lifted High Trail™ Suspension
- Revised shock towers
- Triangulated 4 link front and rear
- Heavy-duty rod ends
- Oil-Filled GTM™ Shocks
- Provides smooth controlled damping
- Realistic driving body movements
- Adjustable pre-load spacers
- Easily refreshed with available rebuild kits
- Wheels and Tires
- 1″ Replica 8-hole chrome mag wheels
- 7 mm hex
- Pre-mounted Mickey Thompson® Baja Pro™ XS tires
- Trail-tuned rubber compound
- 1″ Replica 8-hole chrome mag wheels
- Battery and Charger Included
- High-capacity 2-cell LiPo battery with iD®
- 7.4 volts
- 750 mAh for over an hour of run time
- 2-amp USB-powered charger
- iD® technology for faster, safer charging
- High-capacity 2-cell LiPo battery with iD®
- Low-Maintenance Self-Lubricating Bushings
- Durable Hex hardware
WHAT’S INCLUDED
MODEL 97064-1: TRX-4M® High Trail® Edition Scale and Trail® crawler with Chevrolet® K10 pickup body: 1/18 scale 4X4 trail truck, fully-assembled, Ready-To-Drive®, with TQ™ 2.4 GHz 2-channel transmitter, and ECM-2.5 waterproof electronics.
What’s In The Box:
- TRX-4M High Trail model
- Licensed ABS hard body
- Titan® 180 87-turn motor
- ECM-2.5 Electronic Control Module
- TQ transmitter
- 7.4 volt 750 mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD®
- High quality maintenance tools
What You’ll Need:
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
- USB-A Power Source
2-amp, 5+ volts recommended minimum
