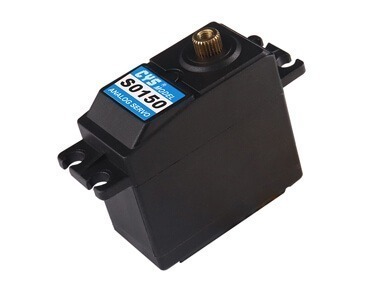

CYS Servo – S0150 Analog STD Metal Gear 15KG Servo

R350.00

Availability: In stock

SKU: CYS-S0150 Category: Tag:
CYS Servo – CYS-S0150 15Kg Analog Metal Gear Servo



Item NO.: CYS-S0150 15Kg standard size servo

Description : 15Kg servo motor for rc car-rc boat-rc plane

Size : 40.5*20*38MM

Torque : 14Kg.cm ~ 15Kg.cm

Speed : 0.17sec ~ 0.15sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 58± 1g



Type Analog
Weight 58g±1g
Size 40.8*20.1*38mm
Control System (+)Pulse Width Control 1500usec Neutral
Operating Voltage 6.0~7.4Volts
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.16sec/60° at no load
Operating Speed (7.4V) 0.14sec/60° at no load
Stall Torque (6.0V) 14kg.cm
Stall Torque (7.4V) 15kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V) 20mA/idle and 200mA no load operating
Current Drain (7.4V) 20mA/idle and 300mA no load operating
Stall Current 2.7A/3.2A
Dead Band Width 4usec
Motor Type Iron core
Bearing Type ball bearing
Horn gear spline 25T
Gear Type Metal
Connector Wire Length 300mm±5mm
Wire info Brown/Black = Negative
Red = Positive
Orange/White = Signal

Brand

CYS Servo

Who we are and What we offer ?

CYS Model Technology Co.LTD – located in Guangdong,Guangdong, which is the high-tech enterprise engaged in designing, manufacturing and selling the professional servo motor such as RC planes servo motor, Robotic servo motor, Industrial servo, high precision gear system and micro DC planetary reducer.

Product Applications

– RC Model: RC car. RC plane. RC boat . Drone. – Smart Robotic: Service robot. Educational robot,Escort robot. – Smart Industrial : Industrial machine arm. – Smart Safeguard Systems – Smart health care – Smart Home : Automatic door. Electronic locks. Automatic windows

With its advanced testing instrument, Automatic CNC machining center, CNC gear hobbing machine, high precision CNC lathes, assembly line, etc. And with the mission” Quality first, Customer first” , we’d like to offer the best even better support and service for customers.

Company Certificates

Quality Management System Certificate ISO 9001 :2015CE(EMC) Certificate
CE(EMC) Certificate-1CE(EMC) Certificate-2
CE(EMC) Certificate-1-1CE(EMC) Certificate-2-1
