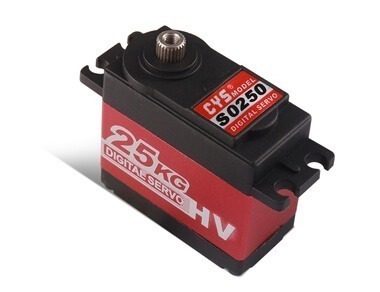

Item NO.: CYS-S0250 Digital servo
Description : 25Kg Digital waterproof servo for 1/10 scale rc car
Size : 40.5*20*38MM
Torque : 22Kg.cm ~ 25Kg.cm
Speed : 0.14sec ~ 0.12sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 62± 1 g
Type:
Digital
Weight: 62g ± 1g
Size: 40.5*20*38mm
Control System: ( )Pulse Width Control 1500usec Neutral
Operating Voltage: 6.0~7.4Volts
Operating Temperature Range: (-)10 to 50 degree C
Operating Speed: (6.0V)0.14sec/60° at no load
Operating Speed: (7.4V)0.12sec/60° at no load
Stall Torque: (6.0V)22kg.cm
Stall Torque: (7.4V)25kg.cm
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain: (6.0V)20mA/idle and 100mA no load operating
Current Drain: (7.4V)20mA/idle and 150mA no load operating
Stall Current2.5A/2.8A
Dead Band Width: 4usec
Motor Type: NdFeB
Bearing Type: Dual ball bearing
Horn gear spline: 25T
Gear Type: Metal
Connector Wire Length: 300mm±5mm
Wire info: Brown/Black = Negative
Red = Positive
Orange/White = Signal
