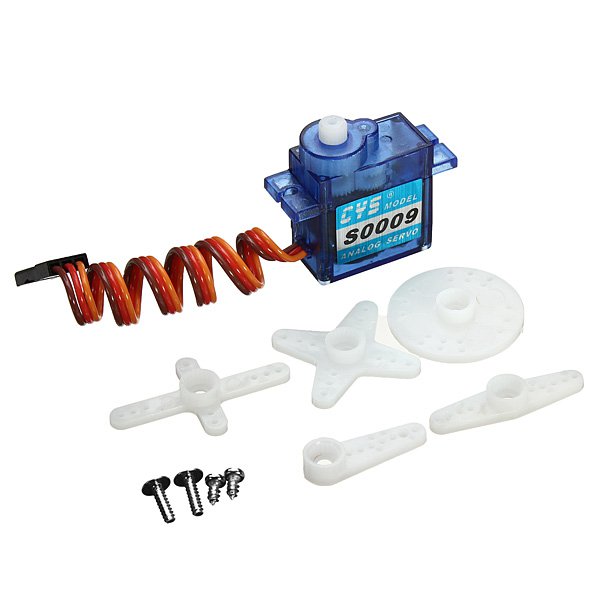

CYS Servo – S0009 1.5kg Servo (9g)

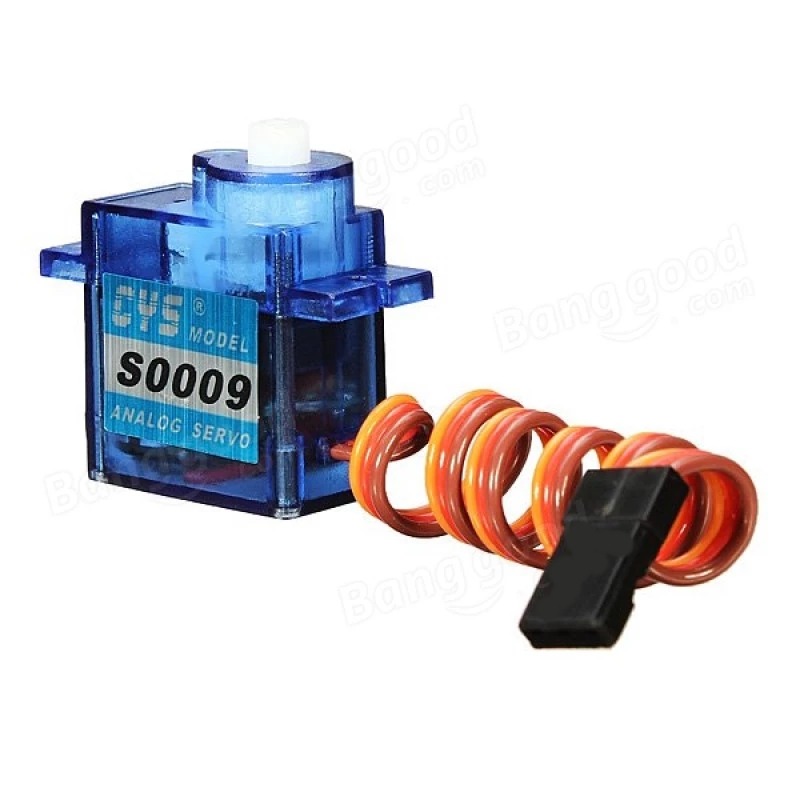

CYS-S0009 9g servo motor

Description : 9g analog plastic gear servo motor
Torque : 1.2Kg.cm ~ 1.5Kg.cm
Speed : 0.12sec ~ 0.10sec/60 degree
Voltage : 4.8 Volts ~6.0Volts
Weight :9± 1g

Type: Analog

Weight: 9g
Size: 22.3*11.8*26.3mm
Control System: ( )Pulse Width Control 1500usec Neutral
Operating Voltage: 4.8~6.0Volts
Operating Temperature Range: (-)10 to 50 degree C
Operating Speed: (4.8V)0.12sec/60° at no load
Operating Speed: (6.0V)0.10sec/60° at no load
Stall Torque: (4.8V)1.2kg.cm
Stall Torque: (6.0V)1.5kg.cm
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain: (4.8V)10mA/idle and 260mA no load operating
Current Drain: (6.0V)10mA/idle and 300mA no load operating
Stall Current: 0.8A/0.9A
Dead Band Width: 4usec
Motor Type: Iron core
Horn gear spline: 21T
Gear Type: Plastic
Connector Wire: Length180mm
Wire info: Brown/Black = Negative
Red = Positive
Orange/White = Signal
