Traxxas – 88086-4 – TRX-6 Flatbed Hauler w/Winch
MODEL SPECS
| Name: | TRX-6 Ultimate RC Hauler |
|---|---|
| Type: | Trail / Crawler |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 10.7 pounds (4.83 kg) |

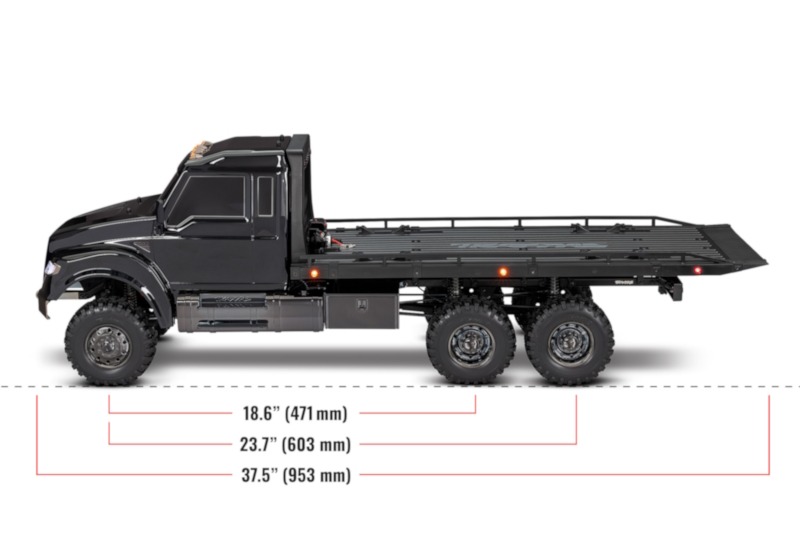

| Length: | 37.5 inches (953 mm) |
| Width: | 9.8 inches (249 mm) |
| Front Track: | 9.8 inches (249 mm) |
| Rear Track: | 9.8 inches (249 mm) |
| Height: | 11.9 inches (303 mm) |
MOTOR SPECS
| Name: | Titan® 550 21T Reverse Rotation |
|---|---|
| Motor Type: | High-torque brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.53 inches (39 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | XL-5™ HV |
|---|---|
| ESC Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| Weight: | 2.6 ounces (74 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
FEATURES
- Large-Scale RC Hauler Rig Body
- Molded black chrome scale details
- Fuel tanks, tool boxes, side rails, unique bumpers
- Molded side mirrors and roll bar
- Authentic decals
- Full Nylon composite wheel wells
- Detailed multi-piece hauler bed with adjustable wheel chocks
- Molded black chrome scale details
- Installed LED Light Kit

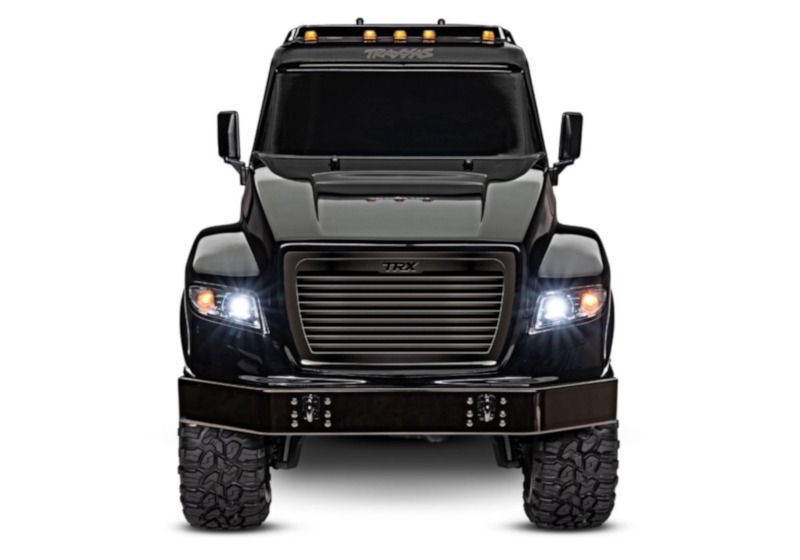

- Molded headlights with amber marker lights

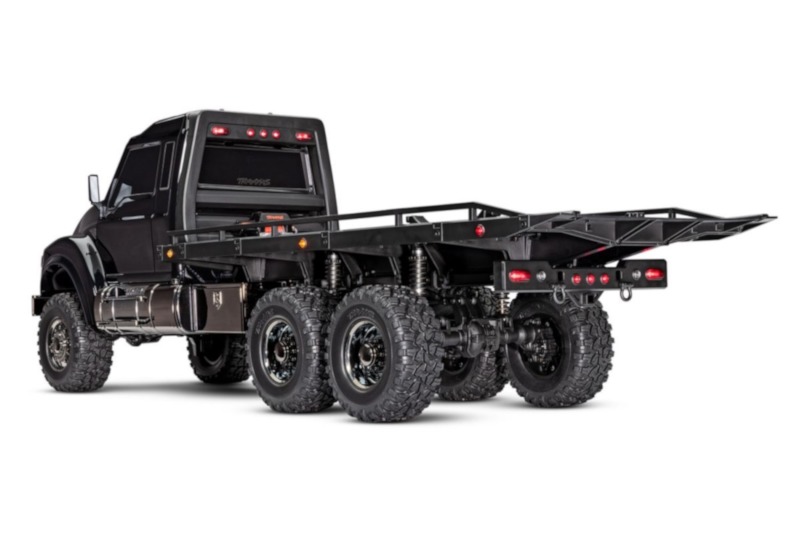

- Clearance and marker lights on roof, roll bar, and hauler bed
- Tail lights integrated into rear bumper
- Sealed waterproof design
- 25 individual LED lights
- Regulated voltage for consistent and reliable power output
- Pro Scale® Winch
- Detailed scale appearance
- Rugged waterproof design
- 10-pound towing capacity
- Included 2-channel remote
- Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ – 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3S LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precise, preset gear mesh adjustments
- Motor retention separate from gear mesh
- TQi™ 2.4 GHz Radio System
- 4-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box with easy-access plug

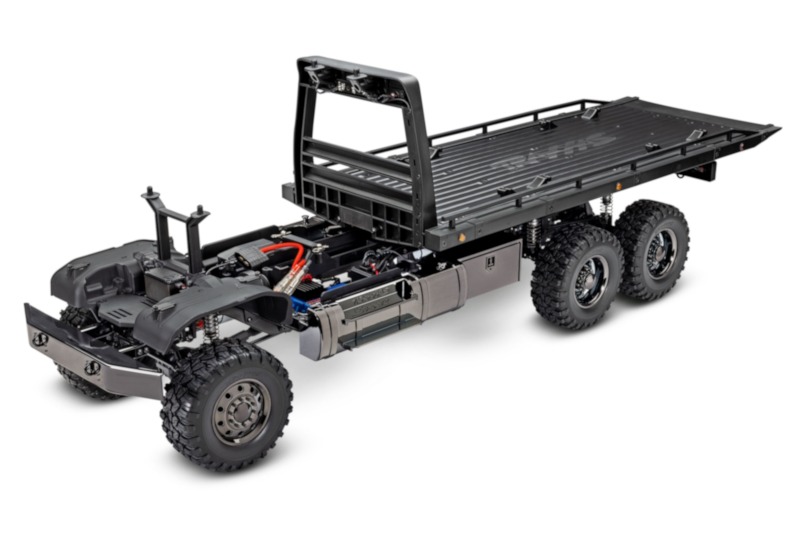

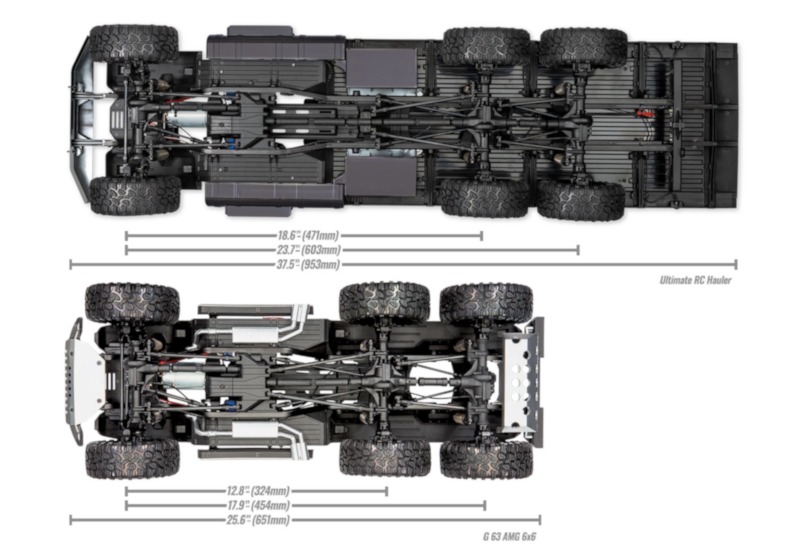

- Extended Chassis Design
- Full-length 30″ steel frame rails
- 1.5 mm thick for increased torsional rigidity
- Rails run from bumper to bumper
- Extended wheelbase for full length tow bed
- Bearing-supported intermediate driveshaft
- Wire management clips integrated into frame rails
- Full-length 30″ steel frame rails

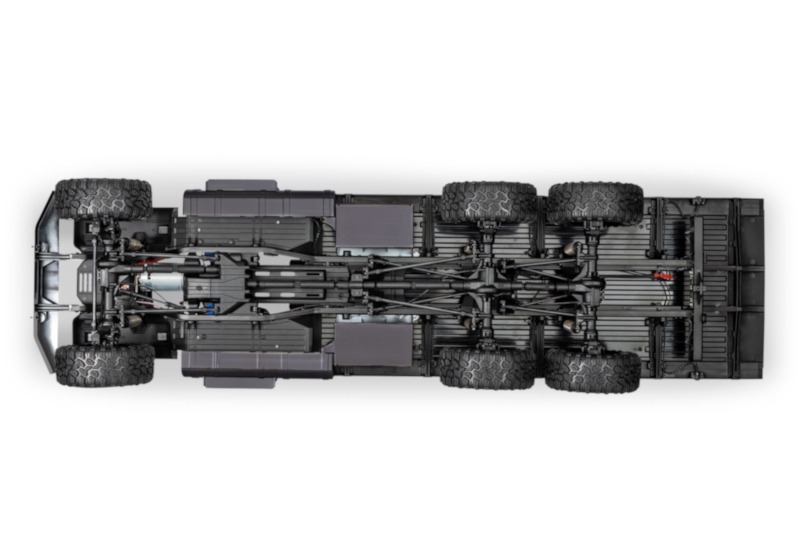

- Drivetrain
- Full-time shaft driven 6-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Dual triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter lower steel link rods with 4 mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- 2.2″ black chrome big rig wheels with hub inserts
- 2.2″ Canyon RT all-terrain tires with foam inserts
- Sticky S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
WHAT’S INCLUDED
MODEL 88086-84: TRX-6® Ultimate RC Hauler: 1/10 scale 6WD electric flatbed truck, Ready-To-Explore®, with TQi™ Traxxas Link™ enabled 2.4 GHz radio system, XL-5™ HV ESC (fwd/rev), Titan® 550 motor, and Pro Scale® winch.
What’s In The Box:
- TRX-6 Ultimate RC Hauler
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
- Batteries
TRX-6 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries and Suitable Charger
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
