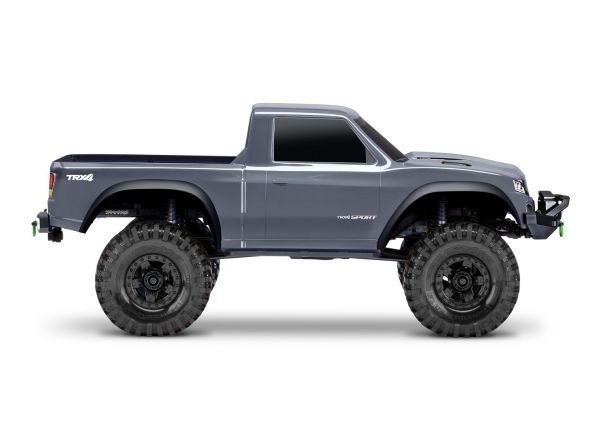

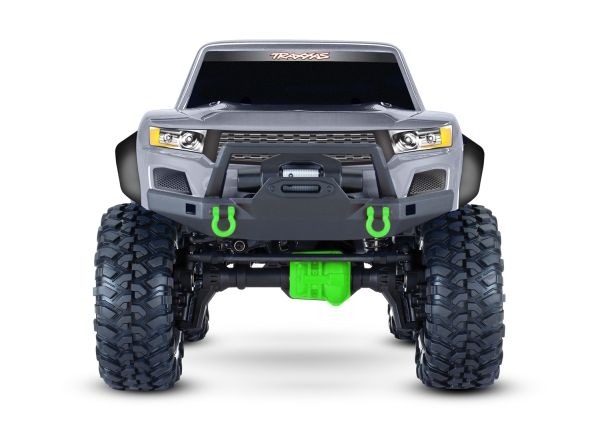

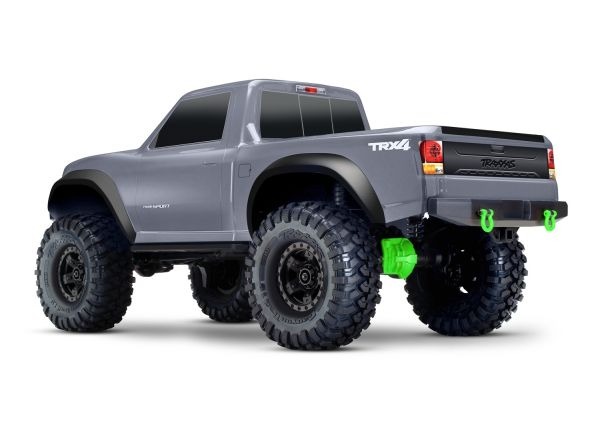

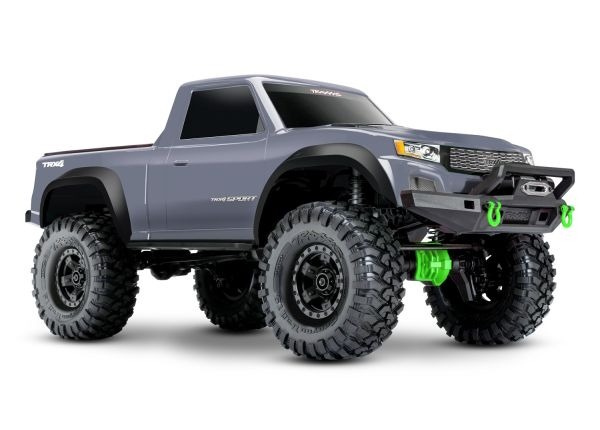

Traxxas – 82224-4 – TRX-4 Sport (Clipless Body)
The Traxxas TRX-4 Sport is built for years of fun, and we’re here to ensure that the experience is exciting and enjoyable from day-one.
This section will help you get up to speed on your new TRX-4’s features, find the hottest accessories for customization, and get help from our online materials and world-class customer support team.
MODEL SPECS
| Name: | TRX-4 Sport Clipless |
|---|---|
| Type: | Trail Truck / Crawler |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 5.79 pounds (2.63 kg) |
| Length: | 21.93 inches (557 mm) |
| Width: | 9.78 inches (249 mm) |
| Front Track: | 9.78 inches (249 mm) |
| Rear Track: | 9.78 inches (249 mm) |
MOTOR SPECS
| Name: | Titan® 21T Reverse Rotation |
|---|---|
| Motor Type: | High-torque brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.53 inches (39 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | XL-5™ HV |
|---|---|
| ESC Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| Weight: | 2.60 ounces (74 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
FEATURES:
- Tough, Clipless Pickup Truck Body
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Low profile bumpers for increased clearance
- Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ – 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh
- TQ™ 2.4 GHz 2-Channel
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry

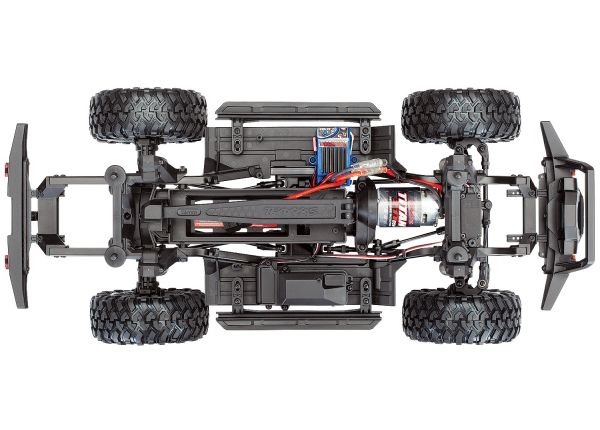

- Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case
- Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- Rugged black 5-spoke wheels
- Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
WHAT’S INCLUDED:
MODEL 82224-4: TRX-4® Sport: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Explore®, with TQ™ 2.4 GHz 2-channel radio system, XL-5™ HV speed control, and painted body.
What’s In The Box:
- TRX-4 trail truck
- XL-5 HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
