Traxxas – 103076-4 – Spartan SR
Extreme Full-Throttle Fun with Self-Righting Security

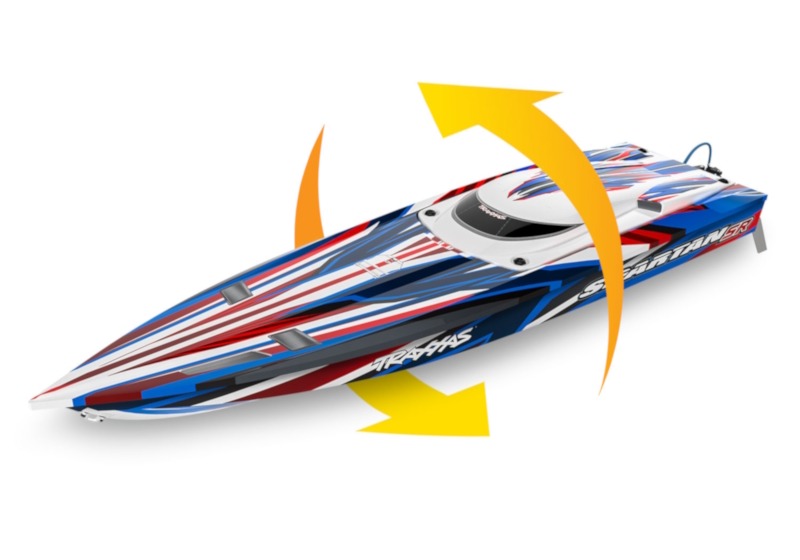

Spartan SR is built for speed and performance. Pull the trigger and Spartan SR immediately jumps on plane and rips across the water to its heart-pounding 50+ mph top speed! There’s nothing else like it and nothing holding you back. If a wave pitches the wrong direction, self righting is on board and within seconds, Spartan SR is back to extreme, full-throttle fun.
MODEL SPECS
| Name: | Spartan SR Race Boat |
|---|---|
| Type: | Boat |
| Speed: | 50+ mph with two 3-cell LiPo batteries |
| Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 5.29 pounds (2.39 kg) |
| Length: | 40.8 inches (1037 mm) |
| Width: | 9.5 inches (243 mm) |
| Height: | 7.2 inches (183 mm) |
| Drive System: | Direct drive, 4.7 mm flex cable |
MOTOR SPECS
| Name: | Velineon® 540XL Marine |
|---|---|
| Motor Type: | Sensorless brushless |
| Weight: | 13.62 ounces (386 g) |
| Length: | 4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length |
| Diameter: | 1.42 inches (36 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | Traxxas 5.5 mm bullet connectors |
ESC SPECS
| Name: | Velineon® VXL-6s Marine |
|---|---|
| ESC Type: | Brushless |
| Case Size: | 2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| Weight: | 7.30 ounces (207 g) |
| Motor Connectors: | Traxxas 5.5 mm bullet connectors |
| Battery Connectors: | Traxxas High Current Connector |
FEATURES
- 36″ Reinforced Deep-V Hull
- Made from lightweight vacuum-formed ABS
- Self-righting flood chamber
- Pre-applied graphics
- Quick-release electronics tray
- Rigid Injection-Molded Clipless Hatch
- Four Twist-Lock® hatch nuts with tool
- Foam seal keeps water out
- Includes optional tool-free wingnuts
- Up to 50 MPH with Dual 3s LiPo Batteries
- VXL-6s™ Marine Electronic Speed Control
- Water-cooled case
- Three drive profiles
- Sport Mode – forward / brake / reverse
- Race Mode – forward / brake
- Training Mode™ – 50% forward / brake / 50% reverse (patented)
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 14 cells (16.8 volts)
- LiPo battery packs: 4-6 cells (14.8 to 22.2 volts)
- Velineon® 540XL Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Efficient, high-speed ball bearings
- 1800 kV
- 5 mm output shaft
- Water-cooled jacket
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz Radio System
- 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Programmable multi-function knob
- Patented waterproof receiver box

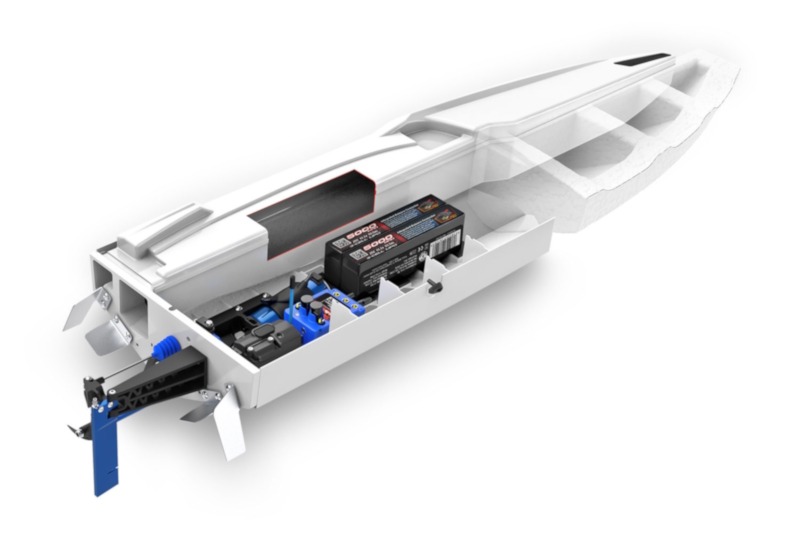

- Extra-Long 218 mm Battery Tray
- Centralizes battery weight
- Allows fore and aft battery positioning
- Accommodates multiple battery configurations
- Secure hook and loop straps
- Driveline
- Heavy duty 4.7 mm diameter flex shaft
- Quick-release motor collet
- Blue-anodized aluminum drive strut
- Low-maintenance bushings
- High performance prop
- Steering
- Waterproof digital 2056 servo
- Blue-anodized aluminum rudder with water pickup
- Precision-Cut Stainless Steel Trim Tabs and Turn Fins
- Stainless Steel Hex Hardware Used Throughout
WHAT’S INCLUDED
MODEL 103076-4: Spartan® SR: 1/10 scale brushless, self-righting, race boat with waterproof electronics. Ready-To-Race® with TQi™ 2.4 GHz 2-channel radio system, VXL-6s™ Marine speed control, Velineon® 540XL Marine brushless motor, and clipless deep-V hull. Requires: batteries and charger.
What’s In The Box:
- Spartan SR with VXL-6s Marine ESC and 1850 Kv motor
- TQi 2.4 GHz radio system
- Boat stand
- Hatch nut tool
- Optional wingnuts
What You’ll Need:
- Batteries
Spartan SR requires dual 7-cell NiMH or dual 2s or 3s LiPo batteries.
- Charger
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
