Traxxas – 102076-4 – MAXX Slash 6S Brushless with TQi Traxxas Link Enabled and TSM (Traxxas Stability Management)
SHORT COURSE SUPREMACY
Traxxas rocked the world 15 years ago with the release of the Slash, launching a short course revolution and a generation of enthusiasts that have propelled Slash to become the best-selling truck in RC. Now, Slash is going even bigger. We MAXXed the Power, Size, Durability, and Excitement!
MODEL SPECS
| Model Name: | Maxx Slash 6s Short Course Truck |
|---|---|
| Model Type: | Short Course Trucks |
| Model Speed: | 70+ mph with Dual 3s LiPo batteries and optional pinion gear (sold separately) |
| Model Skill Level: | 4 |
| Scale: | 1/8 |
| Weight: | 10.34 pounds (4.69 kg) |
| Length: | 26.5 inches (674 mm) |
| Width: | 14.3 inches (363 mm) |
| Front Track: | 14.3 inches (363 mm) |
| Rear Track: | 14.3 inches (363 mm) |
| Height: | 9.64 inches (245 mm) |

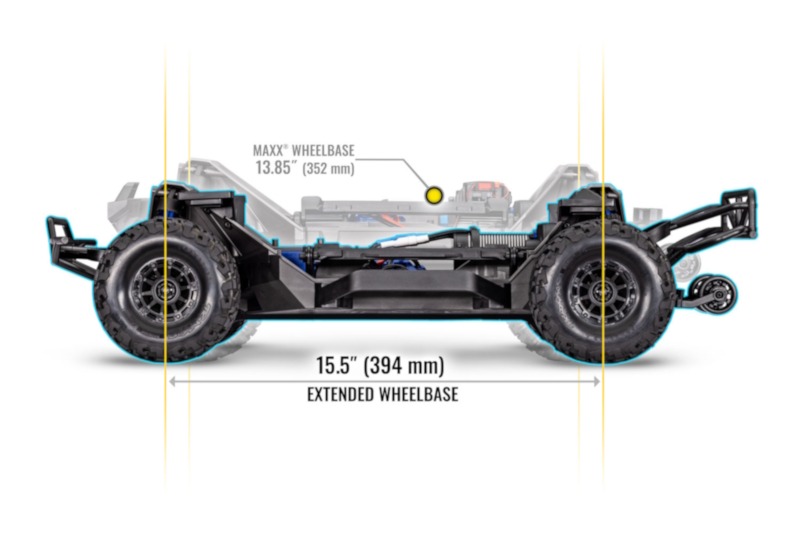

| Wheelbase: | 15.5 inches (394 mm) |
|---|---|
| Center Ground Clearance: | 1.54 inches (39 mm) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Single speed |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Ratio (Internal): | 11.38:1 |
| Gear Pitch: | 1.0 metric pitch |
| Servo(s): | 2090 digital high-torque waterproof (285 oz-in) |
| Radio System: | TQi™ 2.4 GHz transmitter with TSM® receiver |
| Battery Compartment Specs: | 181 mm X 56 mm X 45 mm |
MOTOR SPECS
| Motor Name: | 4-pole 2000 kV |
|---|---|
| Motor Type: | 2000 kV sensorless brushless |
| Motor Weight: | 14.32 oz (406 g) |
| Motor Length: | 2.97 inches (76 mm) |
| Motor Diameter: | 1.65 inches (42 mm) |
| Motor Shaft Size: | 5 mm |
| Motor Connector Type: | Traxxas 6.5 mm bullet connectors |
ESC SPECS
| ESC Name: | VXL-6s |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm) |
| ESC Weight: | 7.30 oz (207 g) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
- VXL-6s™ Waterproof Electronic Speed Control
- 6s LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link™
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
- Integrated protection circuits
- Velineon® 2000 kV Brushless Motor
- 4-pole 2000 kV
- 5 mm output shaft
- Finned can for better heat dissipation
- Fixed-Mesh Motor Cradle
- Supports entire motor length
- Reduces flex for longer gear life
- 70+ mph with Optional Gearing and Two 3s LiPo Batteries (sold separately)
- Traxxas Stability Management®
- Improves straight line acceleration and braking on low-traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Programmable Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- Clipless Body
- Quick and secure installation and removal
- Managed airflow for improved high-speed stability
- Rigid internal frame
- Additional nerf bar side support
- Eliminates body posts and clips
- Molded body reinforcements for tear-through protection

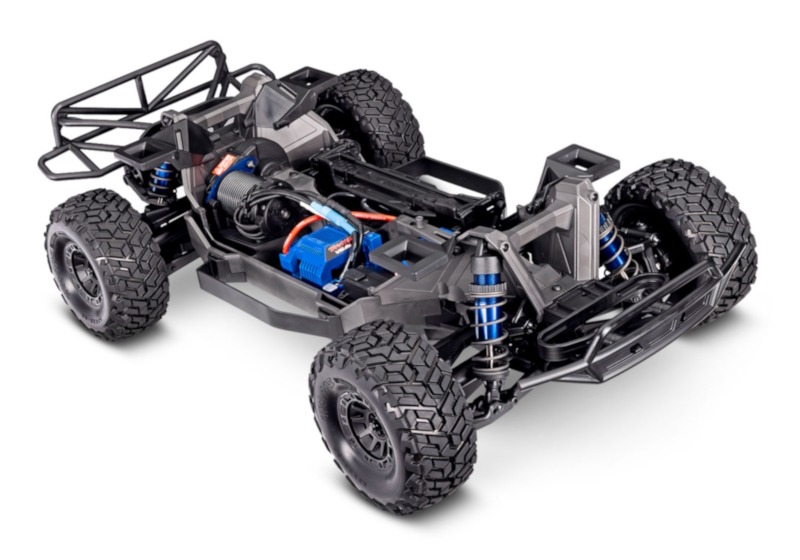

- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive
- Absorbs shocks and distributes power
- Aluminum housing
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Steel pinion and spur gear
- Heavy-duty Cush Drive™
- Steel-Core hybrid telescoping driveshafts
- Splined aluminum center driveshaft

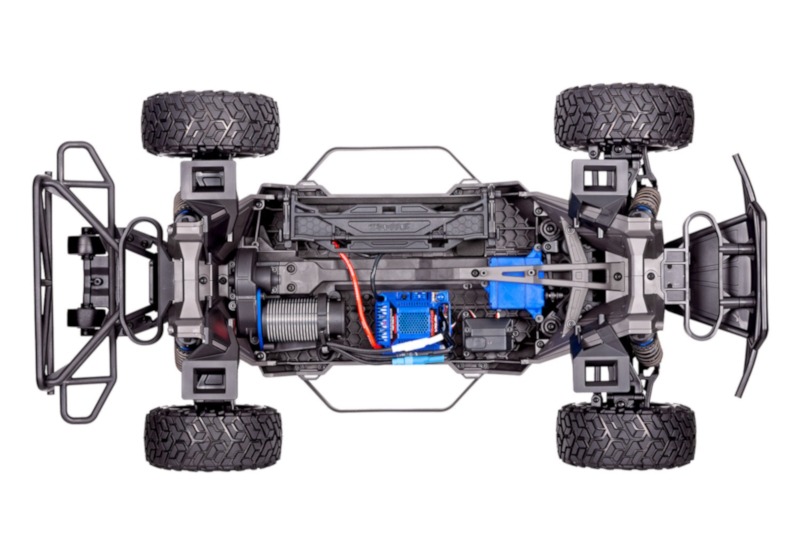

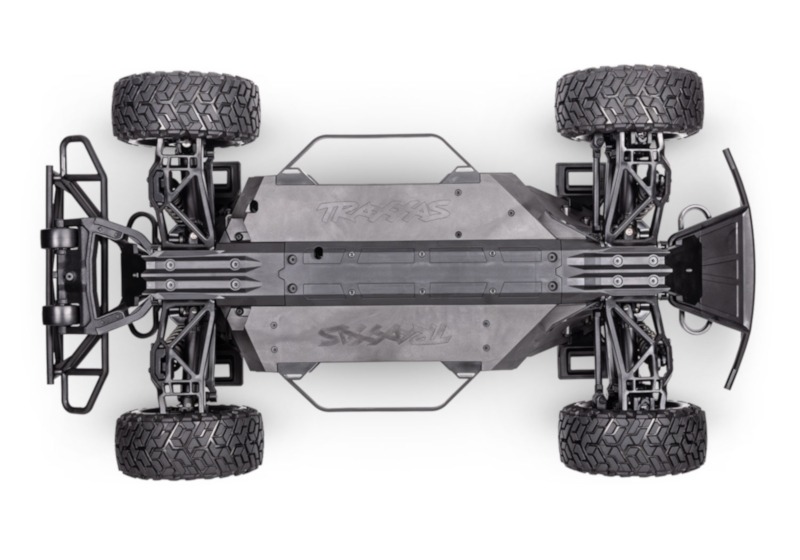

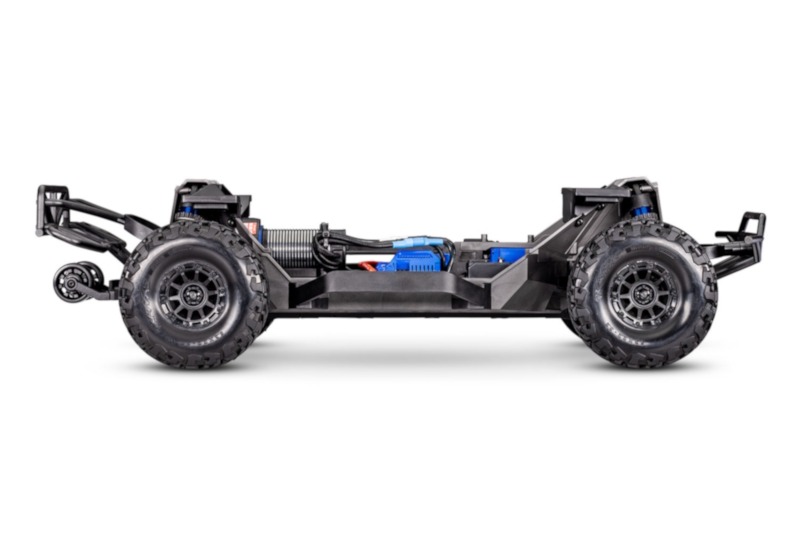

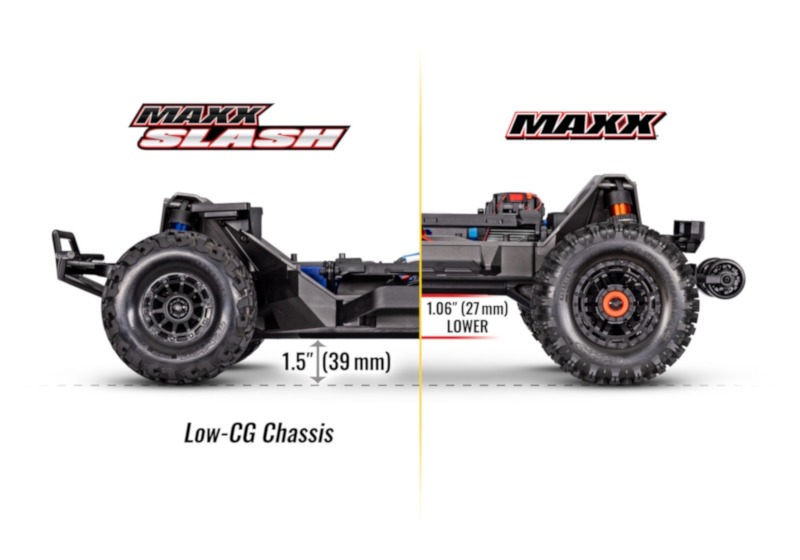

- Modular Low-CG Composite Chassis
- Extended modular chassis design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Molded-in hex reinforcements on flat surfaces
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
- Easy Battery Access
- Large battery compartment with secure snap-lock battery door
- Accepts single 6700 mAh 4-cell LiPo battery or dual 5000 mAh 3s LiPo batteries
- Batteries are protected deep in the chassis
- More secure than conventional retention systems
- Heavy-Duty Steering Bellcranks and Servo
- Large-scale high-output steering servo
- 285 oz-in of torque
- 0.18 sec transit speed
- Triangulated mounting system to fully support case
- Heavy-duty double-shear bellcranks
- Suspension
- Heavy duty double-shear suspension arms
- Tough composite formula resists impact damage, even in cold weather
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- Steel pivot balls
- C-hub and steering block geometry maximizes steering angle
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Heavy duty double-shear suspension arms
- GT-Maxx® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Lower spring perches bolted on
- Bumpers
- Heavy duty energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Adjustable wheelie bar with integrated carry handle
- Wheels & Tires
- Tough dual-profile wheels with keyed 17 mm hex receptor
- Large 5.3″ Maxx SC belted tires
- Limits tire expansion for game-changing performance
- 1-piece foam inserts
- Pre-glued and ready for action

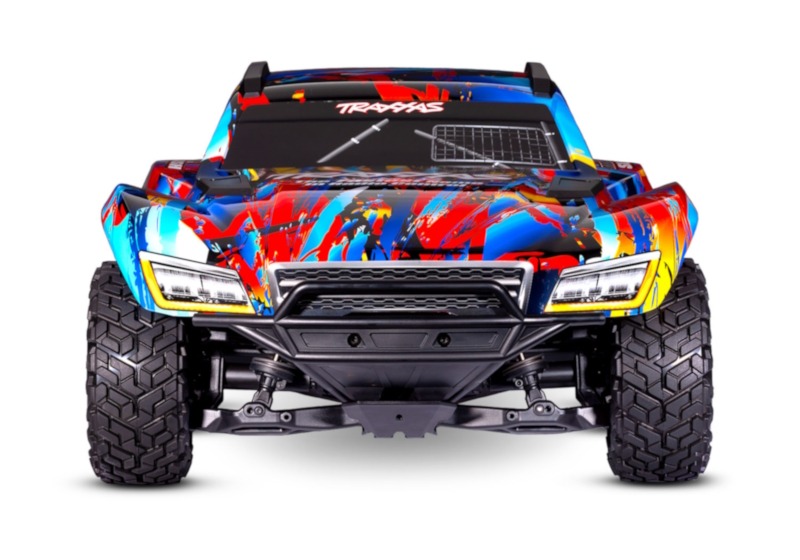

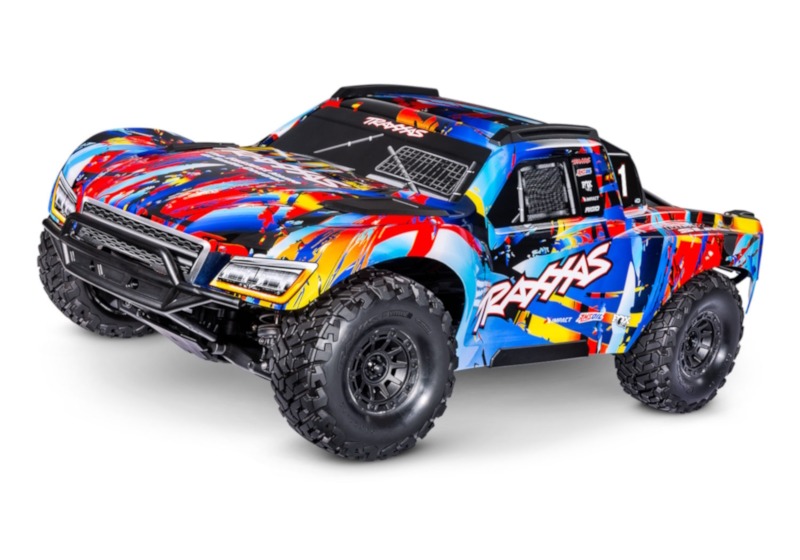

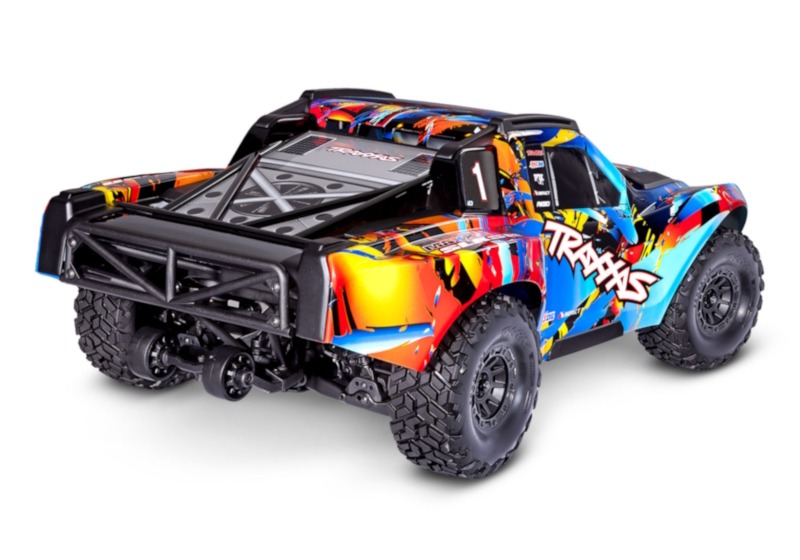

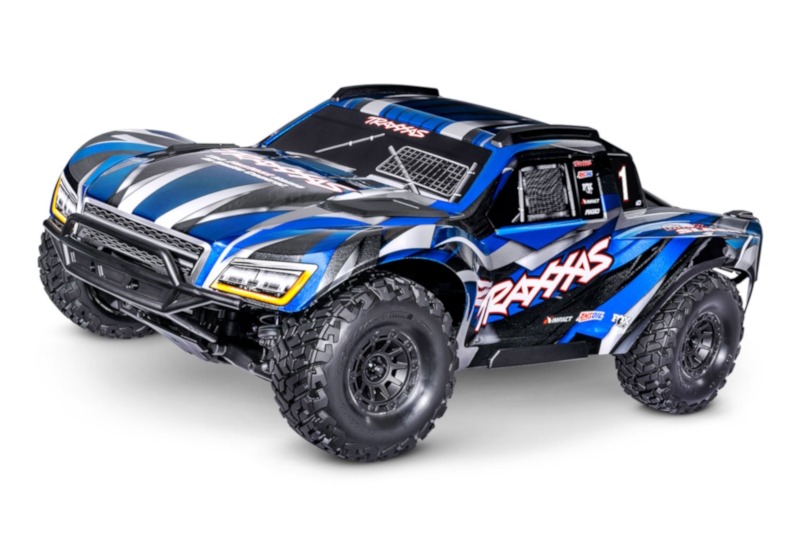

MODEL 102076-4: Maxx Slash 4WD 6s brushless short course truck. Fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz radio system, VXL-6s brushless power system, and ProGraphix® clipless body.
What’s In The Box:
- Maxx Slash, Ready-To-Race short course truck with Traxxas 2000 kV brushless motor
- VXL-6s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
- Jumper plug (for 4s battery use)
What You’ll Need:
- LiPo Batteries
Traxxas recommends dual 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7.4 V LiPo batteries or a single 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- LiPo Balance Charger with iD®
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
