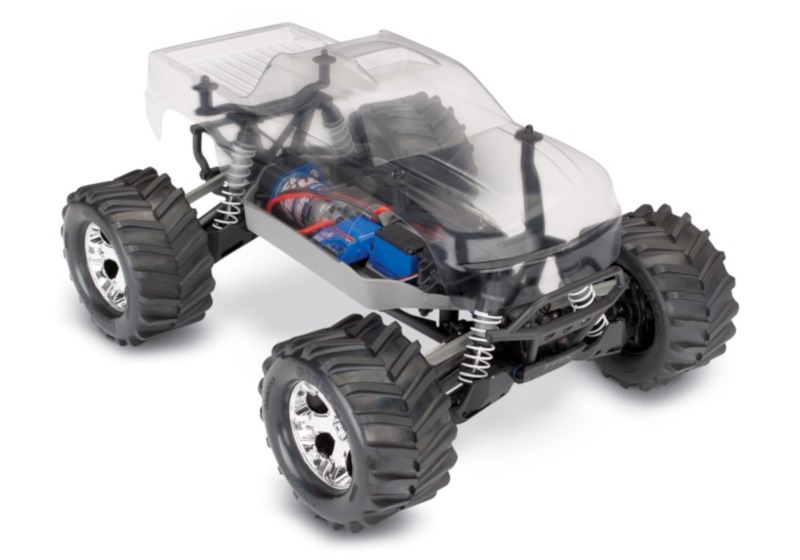

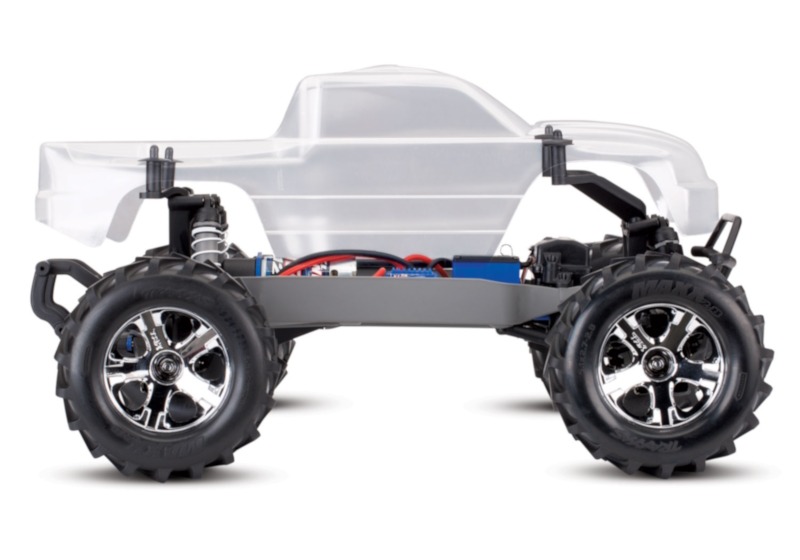

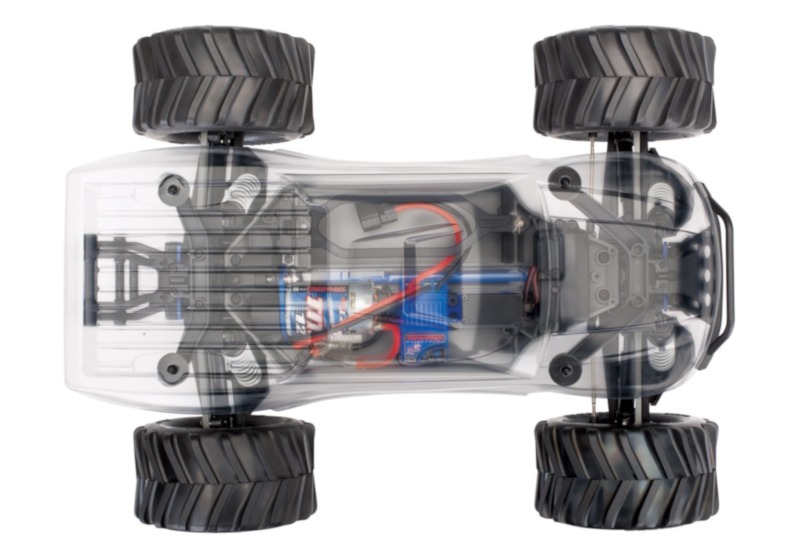

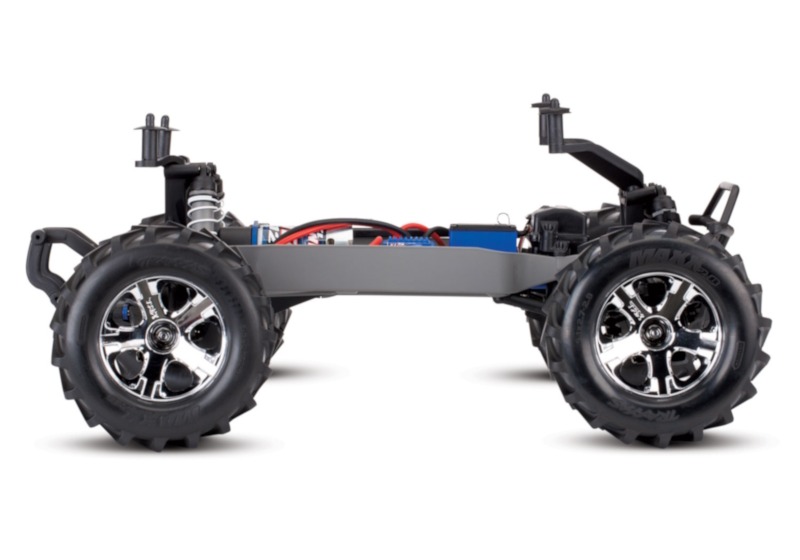

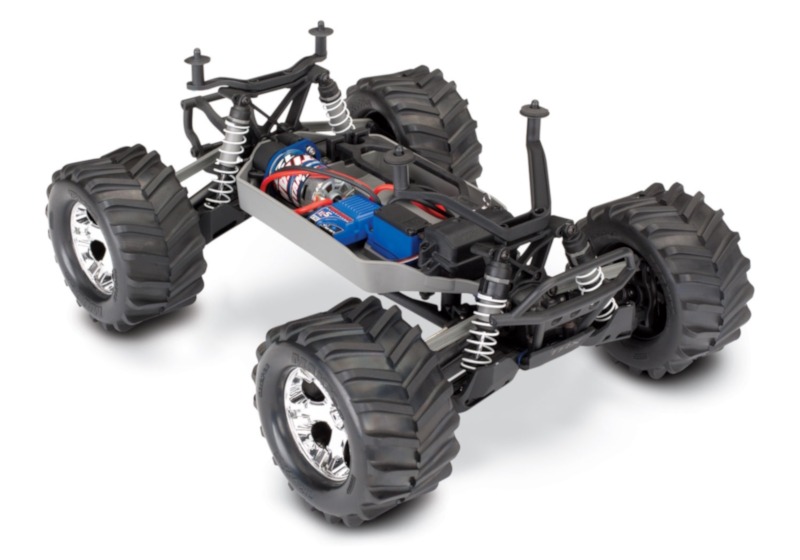

Traxxas – 67014-4 – Stampede 4X4 Unassebled Kit
1/10 Scale High Performance Monster Truck Kit
The Stampede 4X4 Kit is designed Traxxas Tough™ to handle all the 4-wheel drive monster mayhem you can dish out. Its tall ground clearance and long-arm suspension make Stampede 4X4 feel unstoppable. The Stampede 4X4 Assembly Kit combines all the mud-slinging fun of the RTR Stampede with the excitement of building your own truck.
The Stampede 4X4 Assembly Kit adds a fun and exciting dynamic to your RC experience. Build your Stampede from the ground up with all the required parts and electronics included in the box. You’ll get the convenience of a TQ™ 2.4GHz radio system, powerful Titan® electric motor, and waterproof XL-5 electronic speed control. All the parts are organized neatly in labeled bags with a fully illustrated color manual to make building rewarding and fun. The Stampede 4X4 Kit is perfect for drivers of almost any age or skill level. Discover why Stampede 4X4’s off-road capability and toughness are rivaled only by its reputation for pure, no-nonsense fun.
MODEL SPECS
| Model Name: | Stampede 4X4 Kit with Electronics |
|---|---|
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 5.67 pounds (2.57 kg) |
| Length: | 15.63 inches (397 mm) |
| Width: | 13.39 inches (340 mm) |
| Front Track: | 13.39 inches (340 mm) |
| Rear Track: | 13.39 inches (340 mm) |
| Height: | 8.94 inches (227 mm) |
ESC SPECS
| ESC Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm) |
| ESC Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High Current Connector |
| ESC Power Wire: | 14 gauge |
FEATURES
- Easy to Follow Full-Color Assembly Manual
- True-to-scale part illustrations and ruler charts
- Helpful assembly tips and clear illustrations
- Clear Monster Truck Body
- Body comes pre-cut and ready to mount
- Includes window masking and decals
- (Requires polycarbonate paint)
- Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Sport Mode – forward / brake / reverse
- Race Mode – forward / brake
- Training Mode™ – 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Innovative waterproof design
- Titan 550 Motor
- Powerful Titan™ 12T 550 modified motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- TQ™ 2.4GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas #6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry

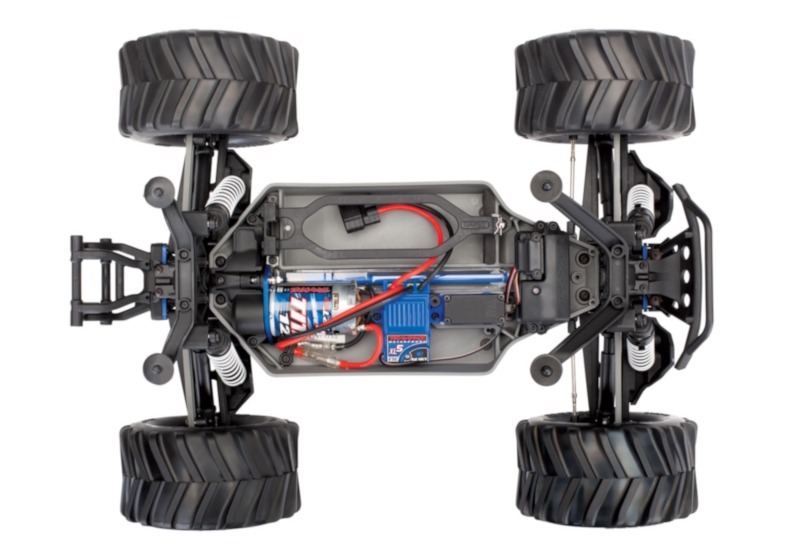

- Tough Fiber-Composite Modular Chassis
- Modular chassis makes maintenance quick and easy
- Easy motor access with single-screw motor plate attachment
- All electronics securely fastened to chassis
- Easy Access Battery Compartment
- Accepts 6-cell flat packs and 7-cell hump packs
- Accepts short form factor 2-cell LiPo batteries
- Transmission and Driveline
- Full-time shaft-driven 4WD
- Torque-Control™ slipper clutch with large 32-pitch gearing
- Sealed, silicone-filled differentials with steel gears
- Heavy-duty telescoping U-joint driveshafts
- Steering
- Waterproof Traxxas #2056 steering servo
- Dual bellcrank steering system with integrated servo saver
- Suspension
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won’t pop off
- Rugged shock guards mounted to suspension arms
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- White powder-coated springs
- Wheels and Tires
- Pre-glued high profile Chevron Maxx™ all-terrain tires with performance foam inserts
- 2.8” Mirror-chrome All-Star™ wheels
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Backed by Unparalleled Traxxas Support and Parts Availability

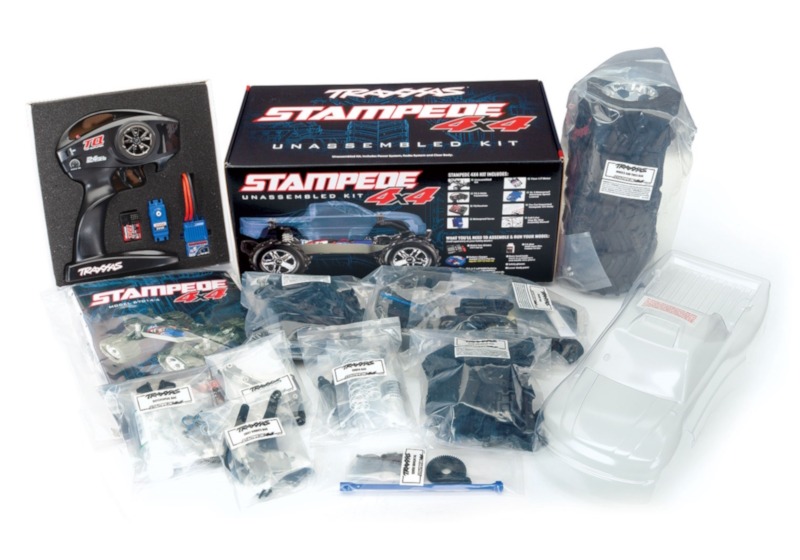

WHAT’S INCLUDED
- Unassembled Stampede 4X4 chassis
- TQ™ 2.4GHz radio system
- Waterproof XL-5™ electronic speed control
- Titan® 12-Turn 550 modified motor
- Waterproof high-torque steering servo
- Sealed, steel-gear front and rear differentials
- Chevron Maxx™ 2.8″ tires, foam inserts, and chrome All-Star™ wheels
- Pre-cut clear Stampede body with decals and window masking
- Full-color step-by-step assembly manual
Easy to Follow Assembly Instructions
The Stampede 4X4 Assembly Kit isn’t just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and in the dirt with the new Stampede 4X4 kit.
- WHAT YOU’LL NEED
- Battery with Traxxas High-Current Connector
- 6 or 7 cell NiMH battery pack
- 2s LiPo battery pack
- Battery charger
- Metric hex drivers
- 1.5 mm, 2.0 mm, 2.5 mm
- Basic hand tools
- Screwdrivers, needle nose pliers
- Traxxas Ultra-Premium Tire Glue (part #6468) or CA glue
- Safety glasses
- Polycarbonate paint
Ready to Assemble
The Stampede 4X4 Kit arrives ready to assemble with a pre-cut clear body and full-color instruction guide to make building rewarding and fun. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support keeps your Traxxas vehicle running strong with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your RC experience is easy and fun.
