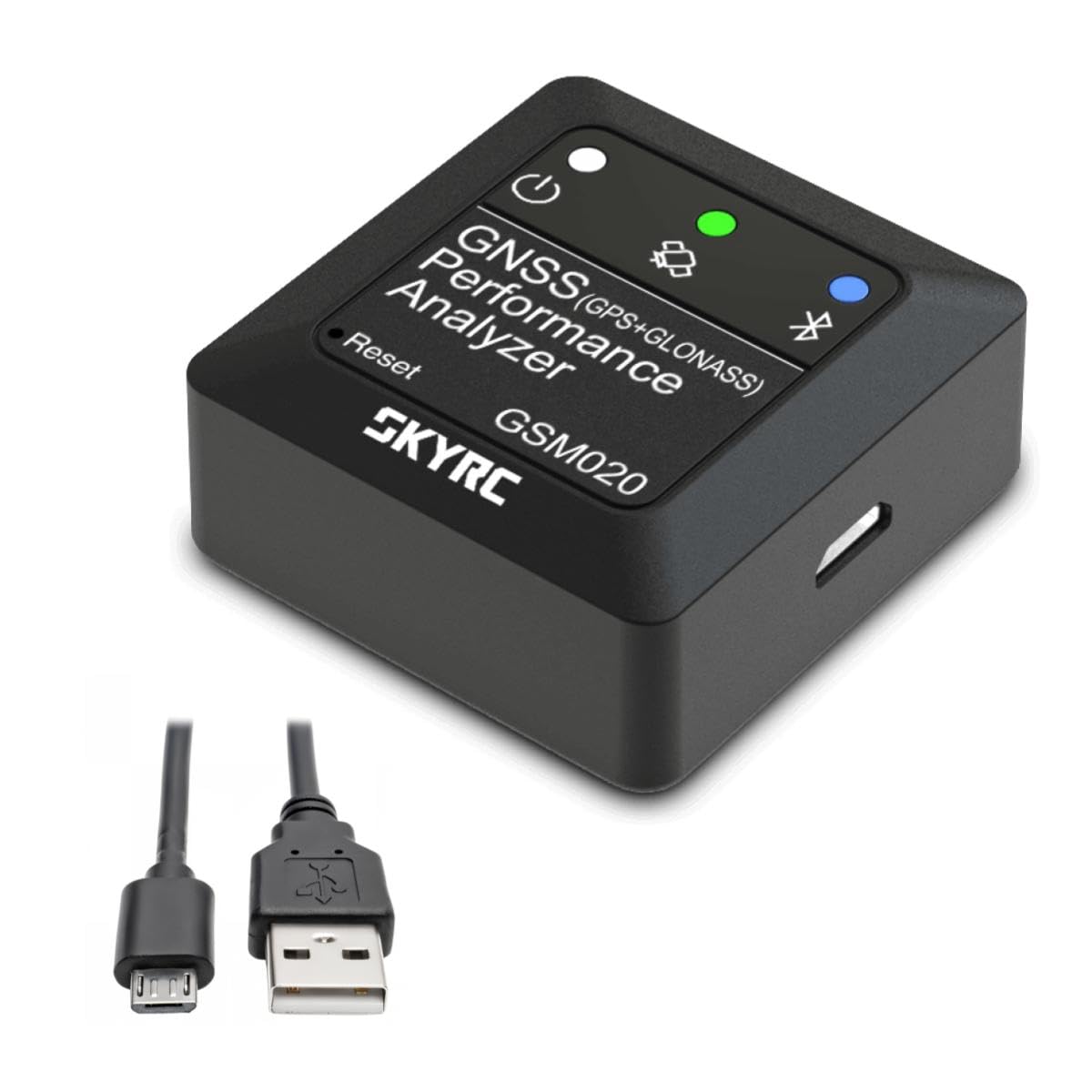

SkyRC – Performance Analyzer GSM020 GNSS

SkyRC – SK-500023-03 – GNSS Performance Analyzer

Study Racing & Flight Performance in a Scientific way

GNSS Performance Analyzer (GSM020) allows you to measure and analyze many aspects of your RC car & airplane’s performance using the latest GNSS engine (GPS, GLONASS) which gives you acceleration, G-force, speed, distance and time. For RC airplanes this device uses a barometric pressure sensor to detect the height above sea-level. It can measure peak altitude up to 29,500 feet (9000m)

How many times have you buddy mocked you were bragging your RC machine goes over 100-blah-blah mph? We’re betting too many times. So there are few ways to prove your RC car or plane is the fastest on earth. Now SkyRC delivers an app-enabled GNSS Performance Analyzer in an affordable and compact design.
RC gurus now have a cutting edge gauge to measure the overall performance of their RC gadgets accurately. Just use an app on your smartphone, strap it to your car, and track the speed. You can mount to almost any RC vehicle, and it does a lot more than just display speed.

Knowledge is power! By knowing the facts before and after modifications, your efforts will not be in vain. GNSS Performance Meter will help you make sense of the improvements and help you make educated decisions to make sure you’re not spinning your wheels. For everyone trying to gauge their performance, here’s an affordable way to do just that. Just got some new mods installed? Get some real feedback, really quickly. This is a professional-grade instrument accessible to enthusiasts. It’s every modeler’s dream. Enjoy!

Improved accuracy by tracking two satellite constellations
The GNSS Performance Analyzer supports GNSS(Global Navigation Satellite System) with GPS and GLONASS system that means more satellites are orbiting the earth. The advantage of this many satellites will definitely improve positional accuracy by tracking two satellite constellations instead of just GPS.

Small but Versatile

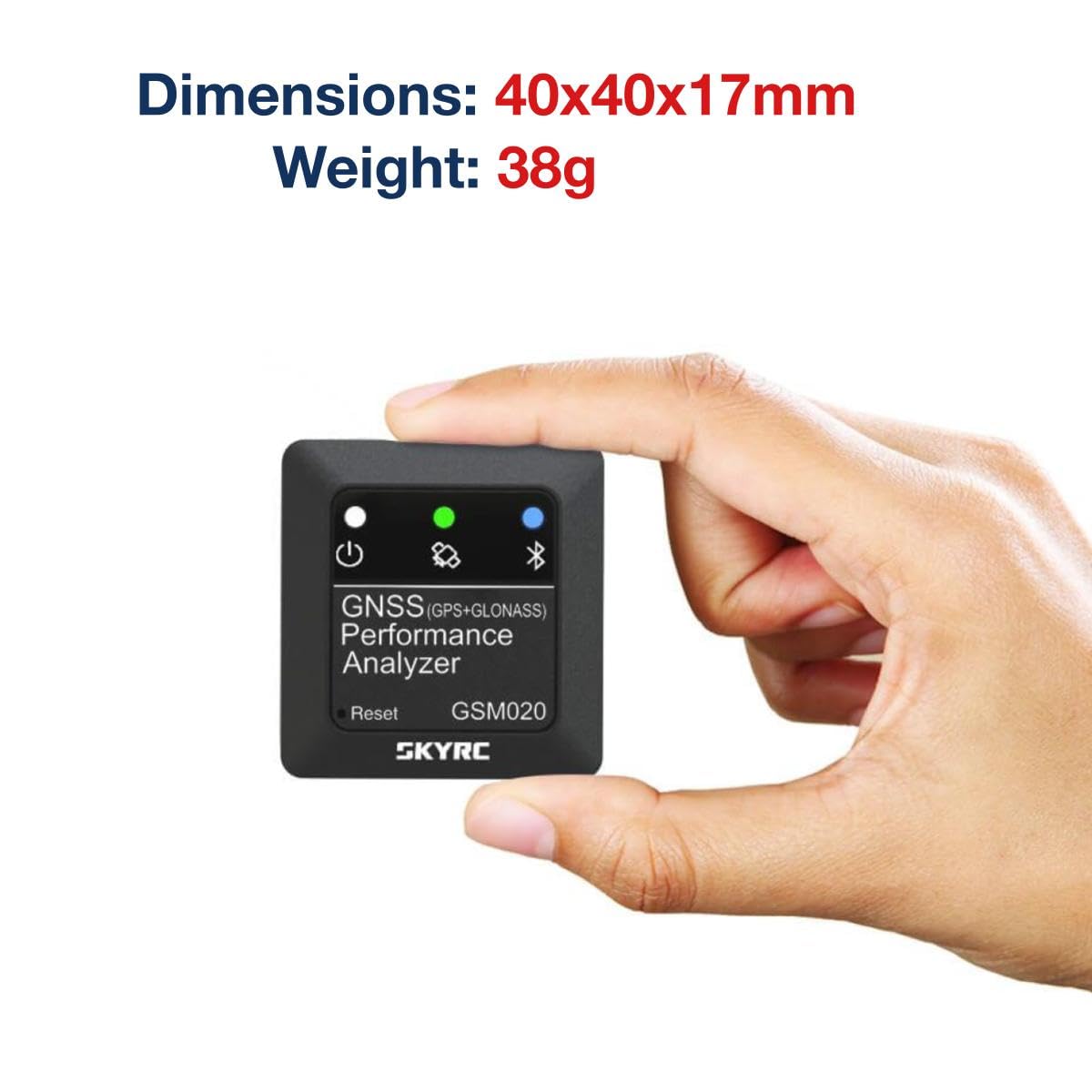

GNSS Performance Analyzer（GSM020) allows you to measure and analyze many aspects of your RC car & airplane’s performance using the latest GNSS engine (GPS, GLONASS) which gives you Acceleration, G-force, Speed, Time, Distance, High and Vertical Velocity. With its compact dimension of 40mm x 40mm x 17mm and internal antenna, it is an ideal choice for mounting on RC vehicles & airplanes.
Case Size: 40 x 39 x 16mm Weight: 38g

Peace of mind with built-in liPo battery
The 5 hours’ up-time on the built-in rechargeable LiPo battery can give enough racing time to RC drivers or pilots in the field! With the micro USB charging port, it is very convenient to connect it to a USB port or another compatible USB power source for charging.

Go mobile with the app

With the free RC Gears App, drivers can track and monitor driving racing speed and remotely from the Android or iOS device.

The built-in Bluetooth 4.0 module makes reading data on the fly in the field. This performance analyzer definitely turns the dull data into helpful analytics to fine-tune for RC hobbyists!

Drag Race
Track Race
Flying Mode
The RC Gears App software automatically charts slope on as time elapses. Saved runs can be read by the App, allowing analyzing of average speed, maximum speed, and acceleration within the given time and defined distance. You can also define your own performance windows for measuring braking time, acceleration (e.g., 0-30 km/h, 10-50 km/h, 10 meters or any custom setting), G-force measurement, Max Speed, Average Speed, Distance, High and Vertical Velocity.
Speed
Please set the start and end speed!
start
0 km/h
~
stop
45 km/h

Distance
Please set the distance between start and end!
start
m
~
stop
m

Visual LED indicator
The GNSS Analyzer is equipped with 3 LED indicators, signaling different operating modes. Open RC Gears on the smartphone, the analyzer’s Bluetooth icon will stay steady blue, reflecting the device is connected the satellite icon will stay steady green after a while of successful GNSS signal acquisition.
Symbol
Color
Status
Bluetooth
Blue
Bluetooth connected
GNSS
Green
GNSS position fixed
Power
White
Working

Off
Stand by

Off
GNSS position not fixed

Off
Bluetooth disconnected

Data Share
With the latest update of the smart phone application, the GNSS Performance Analyzer can support data export and sharing with the format of Excel and screenshot (Excel format is only for Drag Mode).
Built-in 1M Memory
The built-in 1M memory can record up to 50 records. And all the data can be transferred to the smartphone for analyzing! When the Flash is full, the previous record will be replaced automatically. Now you don’t have to think about clearing data all the time or worry about missing the critical tracking data when the memory is full.
Support both Metric and Imperial system of Measurement
The Metric and Imperial systems can be switched easily by the App!
