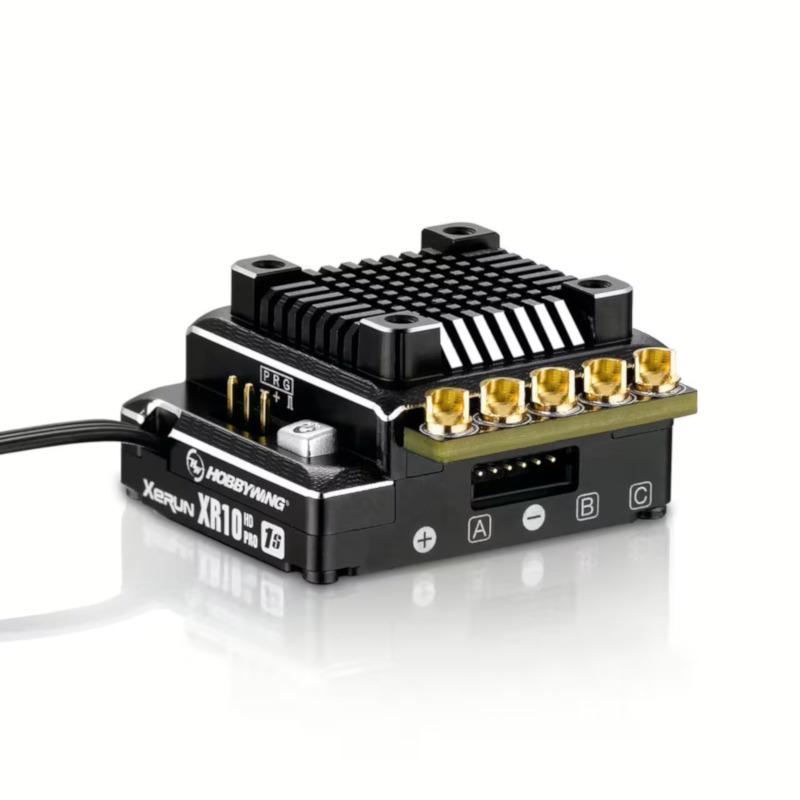

Hobbywing – XERUN XR10 Pro 1S Heavy Duty ESC

Hobbywing – 30112609 – XERUN XR10 Pro Heavy Duty 1S V4.1 1/12 Competition Sensored Brushless ESC

Description:

This is Hobbywing XERUN XR10 Pro Heavy Duty 1S V4.1 1/12 Competition Sensored Brushless ESC.

Feature:

• For: 1/12 RC Car
• Material: Aluminum
• Color: Black
• Word”s Champion”s choice, ROAR APPROVED
• Redesigned new architecture platform
• 40% smaller in volume* (*6mm shorter, 6mm smaller in width)
• 24% lighter in weight (12g lighter than the previous generation)
• Premium MOSFETs (Toshiba MOSFETs)
• Super BEC. Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.
• Built-in electronic switch (with a lifespan of over 50000 on/off cycles, dust-proof and shock-resistant design)
• Built-in capacitor module saves space and weight making the wiring simple and neat.
• PWM Frequency tuning – guarantees precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
• Maximum Cooling performance – Separate Programming/Fan Port
• The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to an LCD program box or WiFi module for ESC programming.

Specification:

• Application: 1/10 – 1/12 Brushless sensored system
• Cont.: 120A
• Peak Current: 830
• Input: 1S LiPo/3-4 Cells NiMH
• BEC output: Switch Mode:6V/3A
• Programmable: Yes
• Firmware update: Yes
• WiFi Module: Enabled
• Dim.: 37.5x31x15.9mm
• Weight: 35.6g 1.26oz

Include:

• Hobbywing XERUN XR10 Pro Heavy Duty 1S V4.1 1/12 Competition Sensored Brushless ESC (1 pc)
