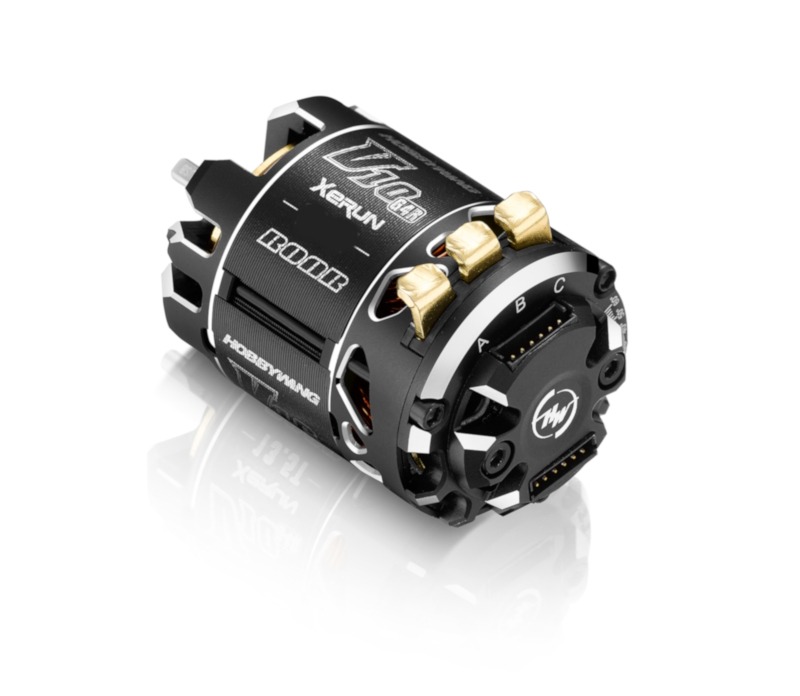

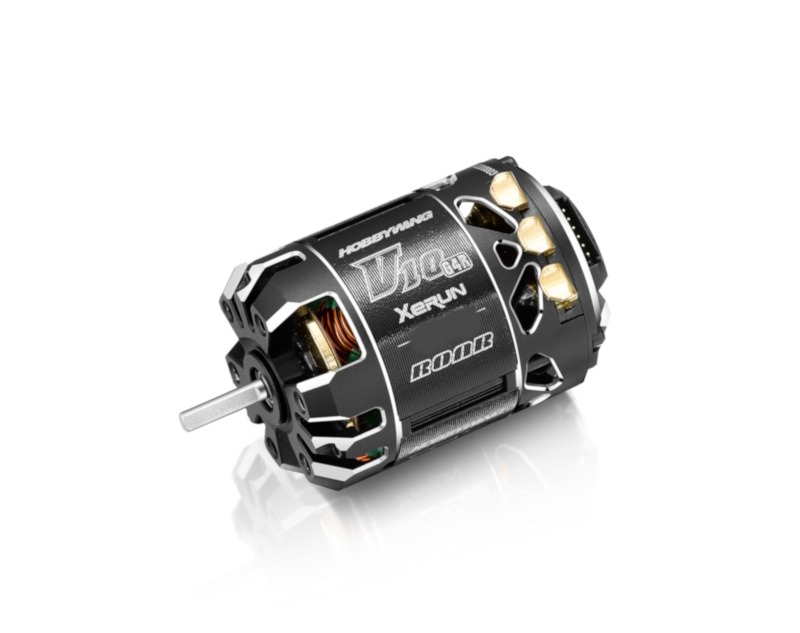

Hobbywing – XERUN V10 17.5T 3150KV G4R – ROAR Competition Sensored Brushless Motor

Hobbywing – 30401745 – XERUN V10 17.5T 3150KV G4R – ROAR Competition Sensored Brushless Motor for 1/10 RC Racing

ROAR Approved Variant

Description:

This is Hobbywing XERUN V10 17.5T 3150kV G4R Competition Sensored Brushless Motor For 1/10 RC Stock Racing. The new G4R stator and winding design reduces the overall internal resistance, while maintaining the requirements for sanctioning spec class rules. The improved motor efficiency reduces the temperature rise to keep internal resistance numbers consistent.

The motor adopts an open core can, and uses an all new Rotor. This allows the heat generated by the stator to be directly cooled by airflow. The can and rotor design allows airflow through the motor to maximize the cooling. Updated nylon mixed shims provide ultra quiet motor operation and provide long lasting consistency. The wear resistance of the gasket is increased by approximately 2 times.

G4R motor windings use the highest temperature rated wiring to date. This allows further resistance to heat, while increasing the overall motor efficiency. Compared to other brands, temperature resistance is up to 40 degrees C higher. Resistance to high temperature damage means the motor can be pushed to its limits and come back for more.

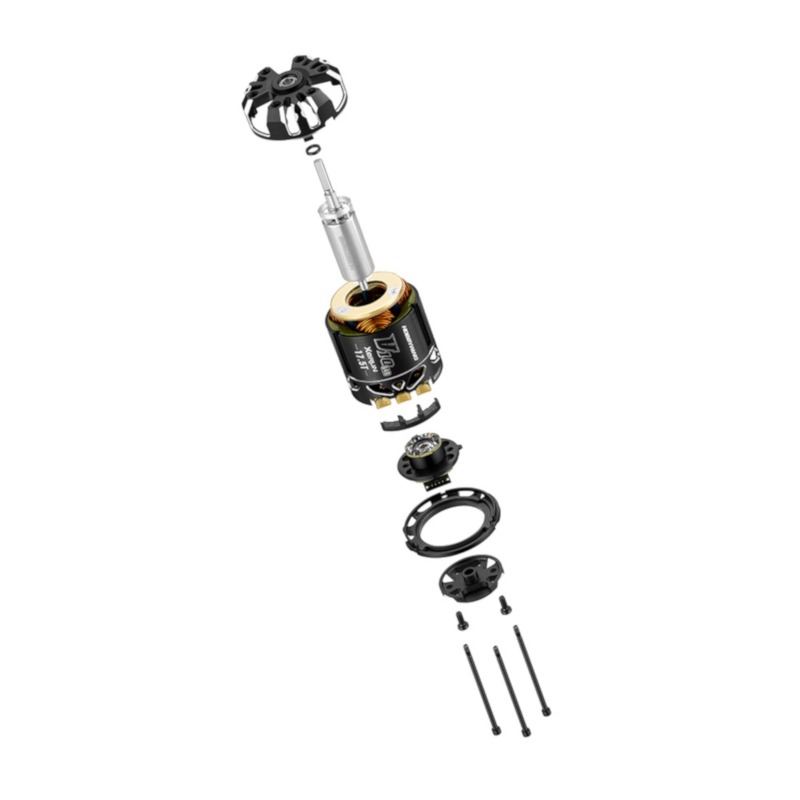

The G4R features dual sensor ports providing racers with options for sensor wire routing. The unused port is protected by the included silicon port plug. The G4R uses a sleek and simple modular design. This makes regular service and cleaning simple and direct. Cleaner motors last longer and run more efficiently.

Parameters:

• KV Rating: 3150KV
• LiPo Cells: 1-3S LiPo
• No-Load Current: (A): 4.6A
• Max Power Output (W): 213W
• Current at the point of: 49.4A

Feature:

• For: 1/10 RC Stock Racing
• Material: Metal
• Color: Black
• Low internal resistance, high efficiency
• Good heat dissipation with low temperature rise
• Wear-resistant silent gasket
• 220℃ high temperature resistant enameled wire
• Dual sensor port
• Easy Maintenance
• Industry-leading materials and excellent product design

Specification:

• O.D.(mm): 35.8mm
• Length (mm): 51.3mm
• Shaft Diameter (mm): 3.175mm
• Weight (g): 158g
• Front Bearing: D9*D4*t4
• Rear Bearing: D8*D3*t4

Include:

• Hobbywing XERUN V10 17.5T 3150V G4R – ROAR Competition Sensored Brushless Motor (1 set)
