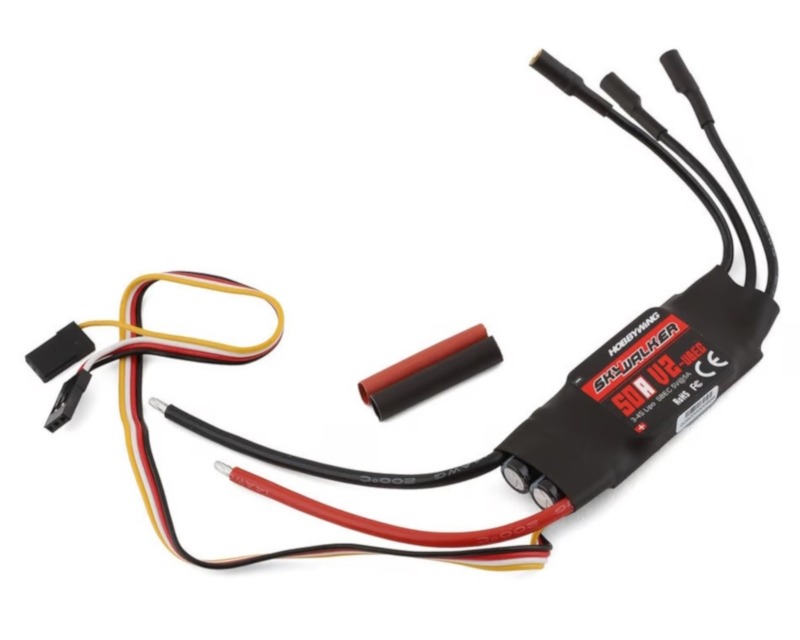

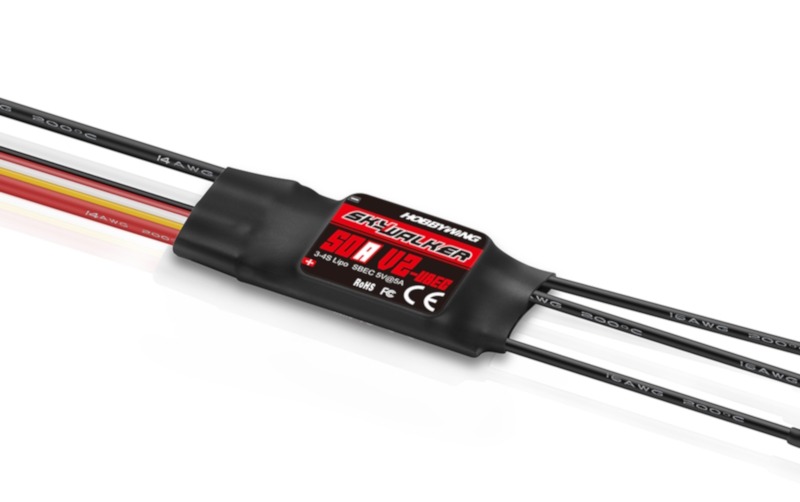

Hobbywing – SKYWALKER – 50A V2 Brushless ESC (3-4S)

Hobbywing – 80060442 – Skywalker 50A – 4S – V2 Brushless ESC

Introducing the Hobbywing Skywalker V2 speed controls for aircraft.

High Quality & Reliable
High-performance 32-bit ARM Microprocessor running up to 96MHz. Support maximum speed up to 300,000 RPM(2-pole motor). High quality, and reliability makes the SKYWALKER V2 series very cost effective.

DEO Technology / Active Freewheeling
The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages. Fast and smooth throttle response, better stability and flexibility during flight. Higher driving efficiency, longer flight times.
Lower ESC temperature, more reliable operation.

Reverse Brake
With Reverse Brake and Linear Reverse Brakes mode enabled can effectively shorten the landing distance of the aircraft to simulate the landing of a real aircraft. Normal Brake Mode and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode. (This is HOBBYWING’s registered patented)

Search Mode
Search mode can help users find their aircraft by pulsing the motor to beep after the aircraft falls into a visually obstructed environment and is difficult to find. This mode can also be used to prompt the user to disconnect the battery of an ESC that has not been working for a set time to prevent the battery from running out of power and being damaged.

Programmable Perameters
Programmable with the LED Program Box, or transmitter. Users can easily program the SKYWALKER V2 to their preference.

Multiple Protections
Multiple protection features include abnormal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the life of the ESC

Specifications

Model: 50/70A
Input Voltage: 3-4S LiPo
BEC Output: BEC 5V/5A
Continues Current: 50A

Peak Current: 70A
Dimensions: 60x2x8mm (LxWxH)

Weight: 36g

Wire Input: 14AWG – 100mm

Wire Output: 16AWG-75mm

Output Connectors: 3.5mm Bullets (Female)

ESC Programming via Transmitter, LED Progream Box, Program Port – Program Wire Firmware
