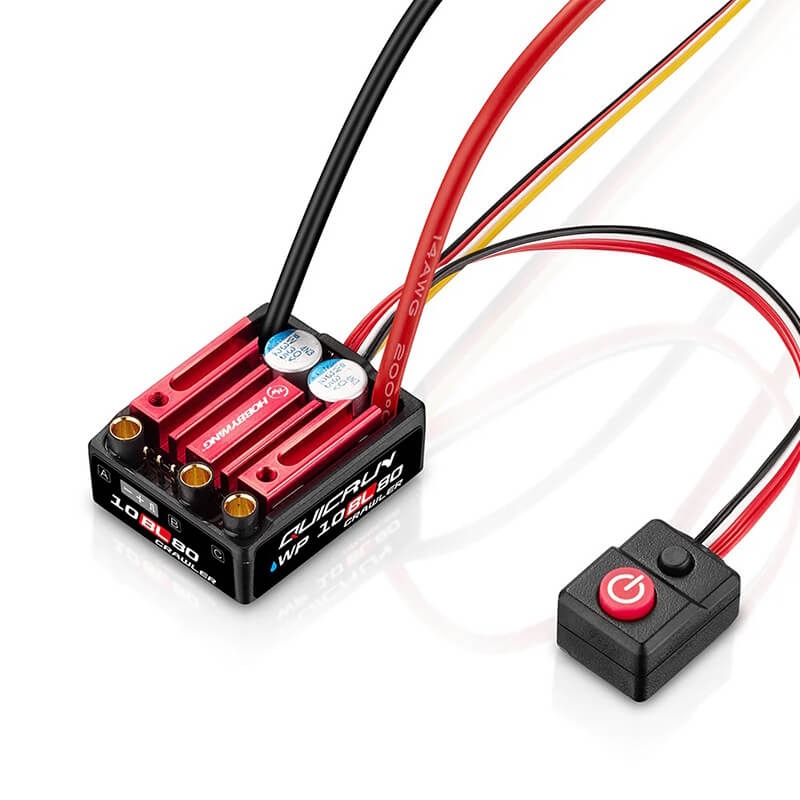

Hobbywing – 30108002 – QuicRun WP 10BL80 Crawler ESC – Brushless & Brushed Crawler ESC
Overview:
Compact, Powerful, and Capable
Compact Dimensions 36×30×15.5mm
The ESC delivers high-performance output of 4S/80A.
It features strong low-speed torque, low startup speed, and smooth operation, making it an ideal power choice for 1/10th scale crawling.
Real-Time Drag Brake Adjustment, Precise Control
The ESC supports AUX channel control of drag brake force. By connecting the Aux input signal wire to an available channel on the receiver, you can adjust the drag brake power as you drive from your remote control.
Built-in BEC Supporting High-voltage Servos
The integrated high-voltage BEC provides up to 11A of output current.
Supports selectable output voltages of 6V/7.4V/8.4V.
It easily powers high-torque, high-voltage servos, meeting a wide range of demands.
Supports Brushed and Brushless Modes
The ESC is compatible with both Brushless and Brushed motors.
Note: The ESC has been factory pre-set to brushless mode by default. When connecting a brushed motor, be sure to connect the “A” and “C” wires and switch the ESC to “Brushed Motor” mode. Operating in the wrong mode may cause damage to the ESC.
Supports Fan Installation
The ESC includes mounting holes for a cooling fan to be installed. Depending on vehicle load and appplication requirements, users can choose whether to install the fan to ensure the ESC operates within the ideal temperature range (around 60℃ on the case).
Note: A fan and screws are included in the package by default.
Easy Installation, Ready for Immediate Usage
The ESC comes equipped with integrated 3.5mm female connectors on the output side, enabling seamless connection to HOBBYWING motors or other motors with compatible plugs.
No soldering is needed.
High Level Protection
The ESC’s protection rated IP67, offering outstanding waterproof and dustproof performance. It can be used in muddy, sandy, icy, snowy, or wet terrain under various weather conditions without concern.
Compatible with both LED and LCD Program Boxes
The ESC supports both the LED Program Box and the more advanced LCD Program Box PRO, giving users the flexibility options for setup and adjustment to suit different tuning needs.
Extensive Parameter Settings
The ESC offers 13 adjustable parameters, including essential options commonly used in crawler power systems, such as drag brake force and drag brake rate. Drivers can fine-tune settings precisely to meet the requirements of different conditions and terrain.
Running Mode
Drag Brake Force
Neutral Range
Motor Type
Drag Brake Rate
FOC Power
Cutoff Voltage
Max. Reverse Force
Low Speed Throttle
Motor Rotation
Max. Brake Force
BEC Voltage
Punch
Specs:
Type
-
- Scale
- Brushed/Brushless
- Sensored/Sensorless
- Waterproof
-
- 1/10th
- Brushless
- Sensorless
- Waterproof
Specifications
-
- Cont./Peak Current
- Input Voltage
- BEC Output
-
- 80A/240A
- 2-4S LiPo
- 6V/7.4V/8.4V,5A

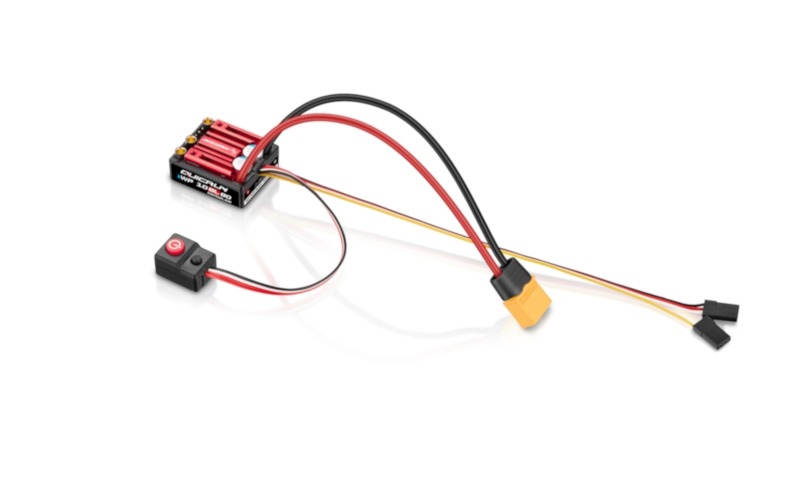

Wires & Connectors
-
- Input Wires
- Output Wires
- Input Connectors
- Output Connectors
-
- Black-14AWG-175mm*1,Red-14AWG-175mm*1
- No
- XT60
- 3.5MM Gold (female)
Fan
-
- Type
- Size
- Voltage Range
- Powered by
-
- Framed
- 25x25x7mm
- 6-8.4V
- Powered by BEC
ESC Programing via
-
- SET Button on ESC
- LED Program Box
- LCD G2 Program Box (STOPPED)
- LCD PRO
- OTA Programmer
- WiFi Module (STOPPED)
- Program Port
-
- Supported
- Supported
- Supported
- Supported
- Not Supported
- Not Supported
- Independent program port
Data Recording
-
- Extreme value
- Real-time Data
- Historical data (Graph)
-
- Not Supported
- Not Supported
- Not Supported
Size & Weight
-
-
- 36*30*15.5mm
- 47.8g( Included wires & connectors)

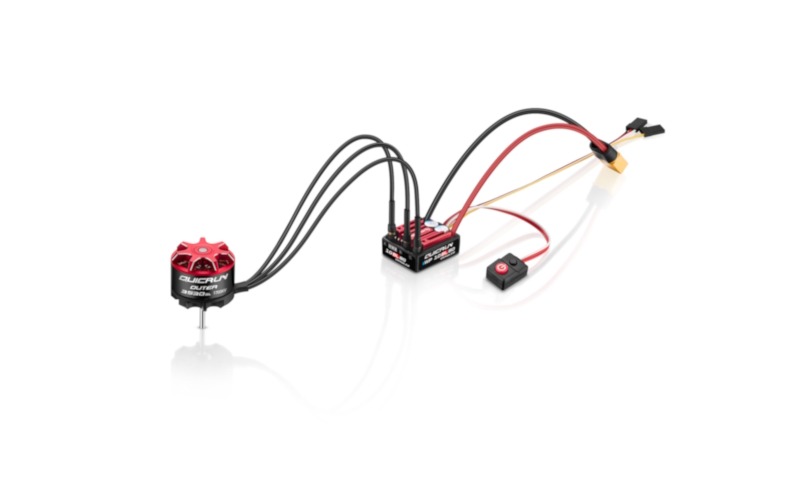

Applications
-
- Motors:
- Vehicles
- KV Rating/T Count
-
- Sensorless / Sensored Brushless Motor
- 1/10th Crawlers
- Outer 3530SL外转子无感无刷电机；540、555等有刷电机
