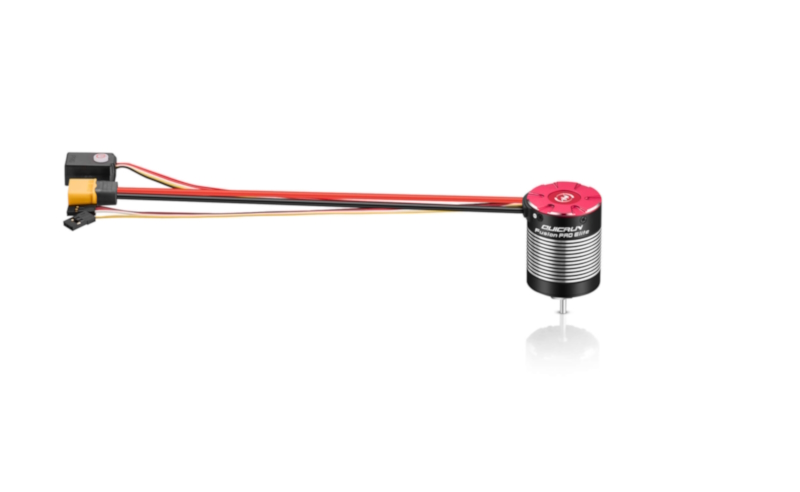

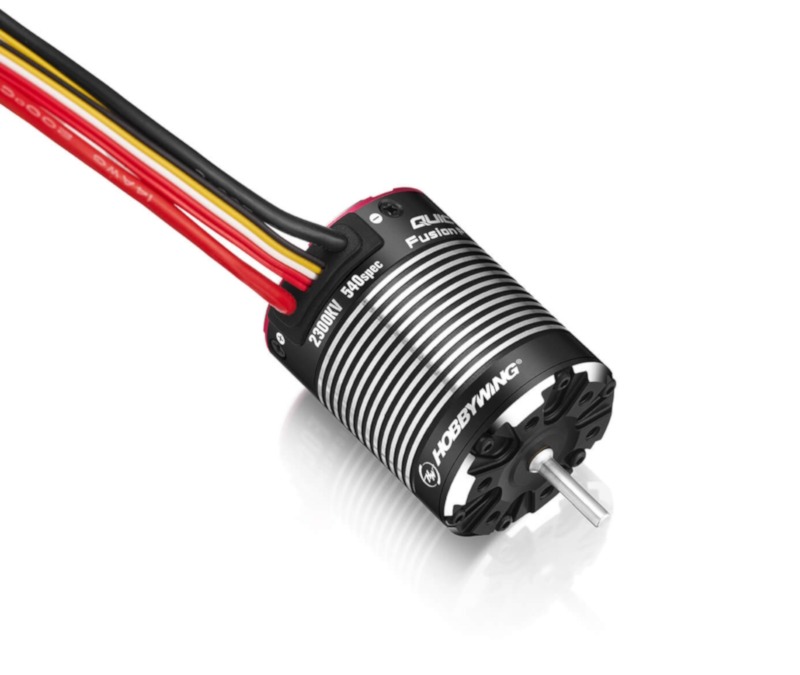

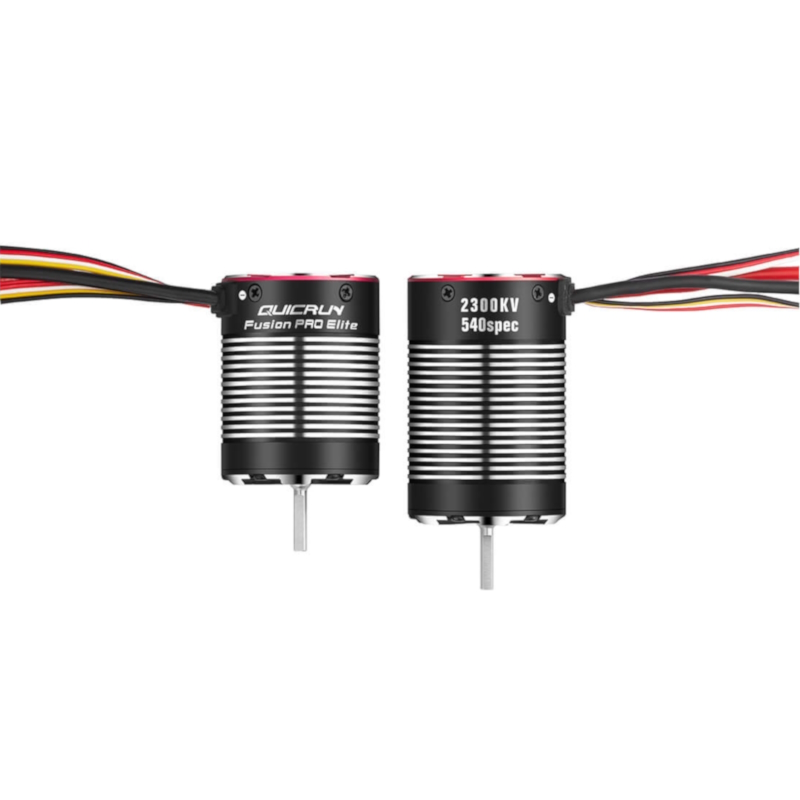

Hobbywing - QuicRun Fusion PRO Elite
Hobbywing - QuicRun Fusion PRO Elite - Image 2
Hobbywing - QuicRun Fusion PRO Elite - Image 3
,

Hobbywing – QuicRun Fusion PRO Elite

R3,474.95

SKU: HW30120500 Categories: , Tags: , , Brand:
Hobbywing – 30120500 – QuicRun Fusion Pro Elite, Integrated Crawler Power System



Overview:

Compact yet Powerful

Fits nearly all 1/10th scale vehicles on the market. This ultra compact 2-in-1 motor and ESC allows for super clean installation and wiring.

Featuring an ultra-short integrated design with a length of just 48.5mm, the motor is 9.5mm shorter than the Pro Standard version.

It’s 1.3mm shorter than the AXE 540.

Supports 2-4S Lipo,
Ideal Choice for 1/10th Climbing Vehicles
The ESC supports 2-4S LiPo batteries
Maximum continuous output current of 50A
Combined with its compact designs, it meets the demands of most 1/10th scale crawler applications, providing stable, consistent power without performance drop-offs.
AUX External Control, Channel for Real-time Parameter Adjustment

By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters (like drag brake force) in on the fly from your radio.

On trail tuning has never been this easy.

FOC Drive, Quiet, Powerful Torque with Excellent Linearity

The power system uses FOC (Field-oriented control) drive, delivering significantly stronger low-speed torque and smoother performance than conventional sensored systems.

It eliminates motor noise for near-silent operation, allowing you to fully enjoy the experience.

Closed loop, Intelligent Torque Control for Precise Throttle Matching and Amazing Control

The ESC features an intelligent torque output and speed closed-loop control system that automatically adapts to changing terrain conditions.

The ESC increases output torque to overcome obstacles when encountering resistance.

On descents, it reduces torque output and stablizes vehicle speed, making driving remarkably simply.

IP67 All-terrain Protection

The entire power system is rated IP67, delivering outstanding waterproof and dustproof performance. Whether in rain, snow, mud, sand, or standing water, it handles harsh environments with confidence.

Note: The IP67 rating protects against splashes, water exposure, and dust under normal use but is not permanent. Protective performance may decline over time due to aging.

Do not submerge the product for extended periods, as this may cause damage.

Built-in 10A High-performance BEC
Built-in BEC capable of delivering up to 10A of output current.
Supports selectable voltages of 6V/7.4V/8.4V
It effortlessly powers standard and high-voltage servos, as well as accessories like lighting systems and winches.
Five Selectable Operating Modes

The ESC offers versatile control with five operating modes, this flexibility easily adapts to a wide range of applications.

.1 Constant Speed Mode(Direct Forward/Reverse)
.2 Normal Mode(Forward/Reverse with Brake)
.3 Normal Mode(Direct Forward/Reverse without Constant Speed)
.4 Hybrid-RPM Matching Mode
.5 Hybrid-Normal Mode
Compatible with both LED and LCD Pro Program

The ESC supports not only the simple LED Program Box but also the more advanced LCD Pro

Program box, which offers a complete range of settings and professional-level adjustments.

Hobbywing LED Program Box

LED Program Box
Hobbywing LCD Program Box Pro

LCD Program Box Pro
Extensive Parameters Options

The ESC offers 14 adjustable parameters to meet a wide variety of setup application requirements.

Running Mode
Lipo Cells
Cutoff Voltage
Thermal Protection
Motor Rotation
BEC Voltage
Drag Brake Force
Drag Brake Rate
Max. Reverse Force
Max. Brake Force
RPM Decrease Rate
Punch
Neutral Range
AUX CH Function
Type
  • Scale
  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • 1/10th
  • Brushless
  • Sensored
  • Waterproof
Specifications
  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • KV
  • Motor Poles
  • 50A/150A
  • 2-4S LiPo,6-12 Cells NiMH
  • 6V/7.4V/8.4 adjustable,continuous current 5A (Switch mode)
  • 2300KV
  • 4
Wires & Connectors
  • Input Wires
  • Input Connectors
  • Black-14AWG-220mm*1 Red-14AWG-220mm*1
  • XT60
ESC Programing via
  • SET Button on ESC
  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Not Supported
  • Supported
  • Supported
  • Supported(Bluetooth not supported)
  • Not Supported
  • Separate Program Port(switch position)
Firmware
  • Firmware Upgrade
  • Not Supported
Size & Weight
  • Diameter / Length of motor
  • Shaft diameter / exposed shaft length
  • Weight
  • 37mm/48.5mm
  • 3.175mm/16mm
  • 178.5g (including wires & connectors)
Applications
  • Vehicles
  • 1/10th Crawlers
