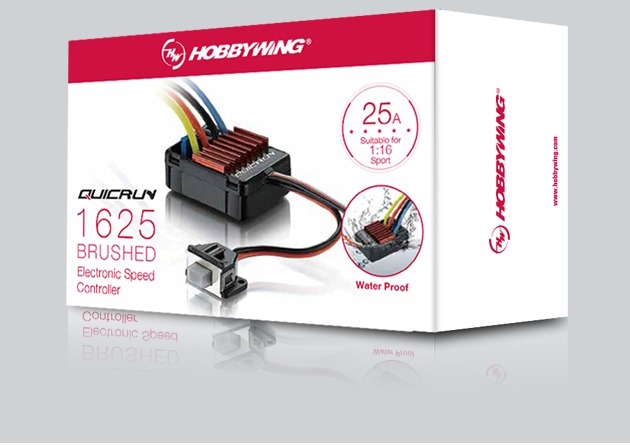

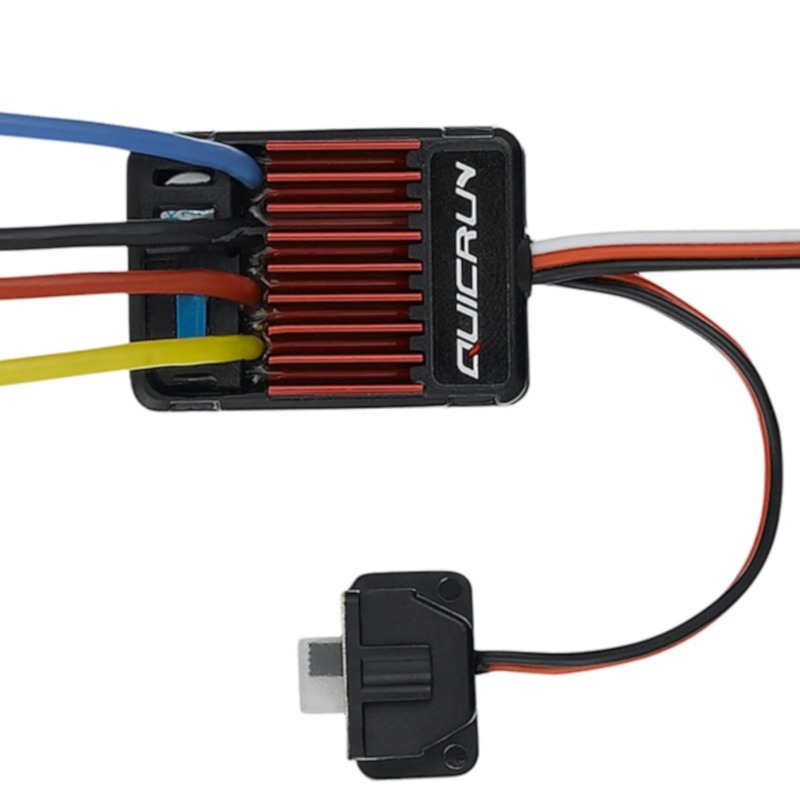

Hobbywing – QuicRun 1625 Brushed 25A ESC

R489.95

SKU: HW30120000 Category: Tags: , , Brand:
Hobbywing -30120000 – QuicRun WP 1625 Brushed ESC



Overview:



Easy Operation – This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

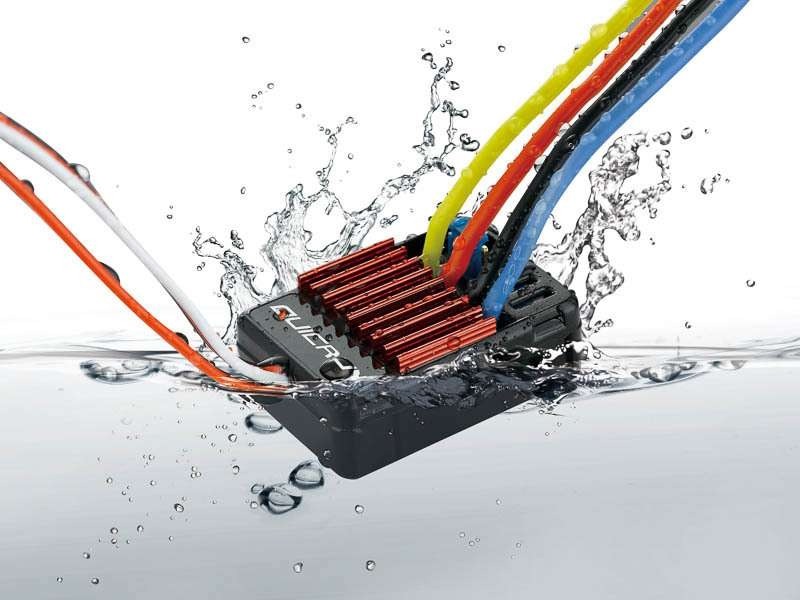

Applicable to All Weather Conditions – The waterproof and dust-proof design allows the QUICRUN WP-1625 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability – Reliable hardware combined with advanced software technology allows the QUICRUN WP-1625 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use – This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application- This ESC is designed for 1/16th, 1/18th scale touring cars, buggies, monster trucks and trucks.

Specs:
Product Name
Product Number
Type Scale

Brushed/Brushless

Waterproof

Specifications Cont./Peak Current

Input

BEC Output

Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors

Fan Size

Voltage Range

Powered by

ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box (STOPPED)

LCD PRO

OTA Programmer

WiFi Module (STOPPED)

Program Port

Firmware Firmware Upgrade
Size & Weight Size

Weight

Applications Motors

Vehicles

KV Rating/T Count

Product Name QuicRun WP 1625 Brushed
Product Number 30120000
Type Scale

Brushed/Brushless

Waterproof

1/16th,1/18th

Brushed

WP

Specifications Cont./Peak Current

Input

BEC Output

25A/100A

2-3S LiPo/6-9 Cells NiMH

Linear Mode:6V/1A

Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors

Red-18AWG-75mm*1/Black-18AWG-75mm*1

Blue-18AWG-75mm*1/Yellow-18AWG-75mm*1

Small-sized TAMIYA Connector

4.0 Bullet Connectors (Female)

Fan Size

Voltage Range

Powered by

No

No

No

ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box (STOPPED)

LCD PRO

OTA Programmer

WiFi Module (STOPPED)

Program Port

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Jumper Cap

Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight

34.0×24.0x14.0mm

24g

Applications Motors

Vehicles

KV Rating/T Count

Brushed Motors

1/16th, 1/18th Touring Cars/Buggies/Monster Trucks

2S LiPo: RPM≤30000

3S LiPo: RPM≤20000

(280/370/380 Size Motors)
