Hobbywing – EzRun MAX8 G2S Brushless ESC

R2,939.95

SKU: HW30103205 Category: Tags: , , Brand:
Hobbywing – 30103205 – EzRun MAX8 G2S 1/8 Brushless ESC



Overview

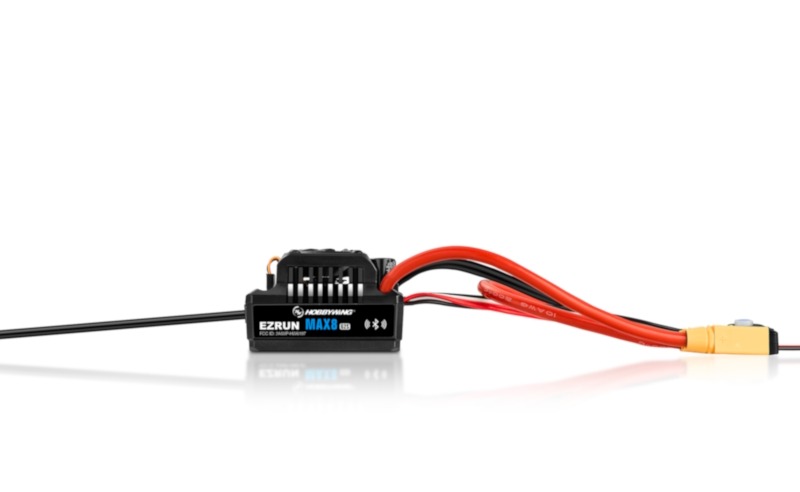

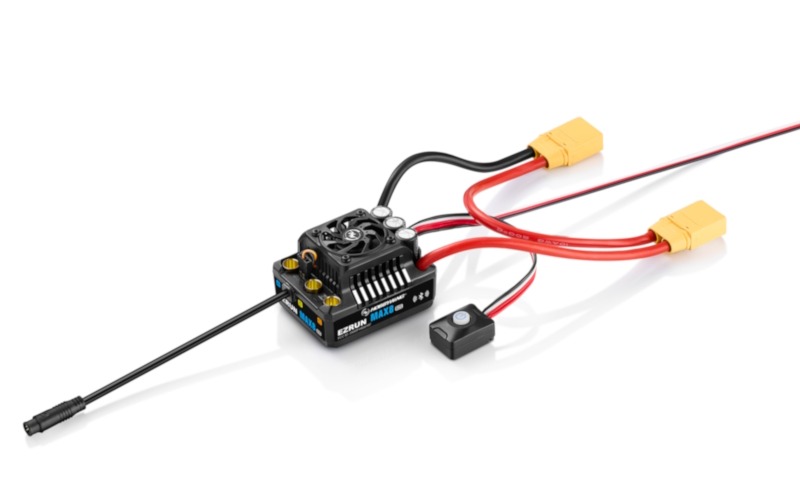

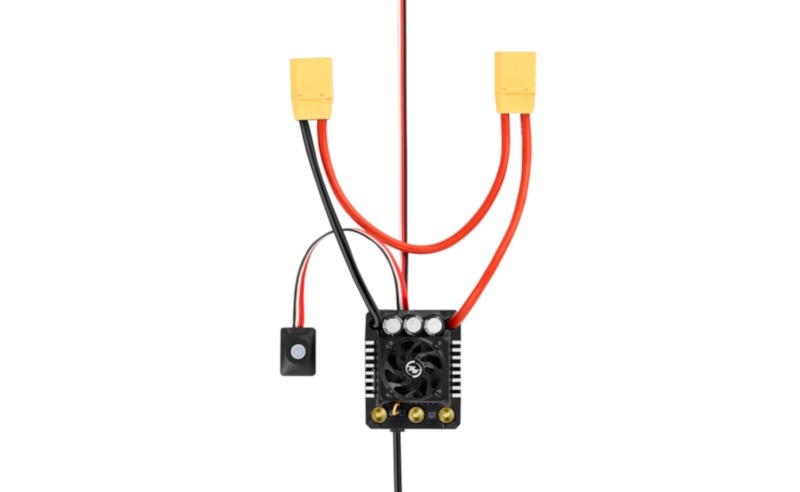

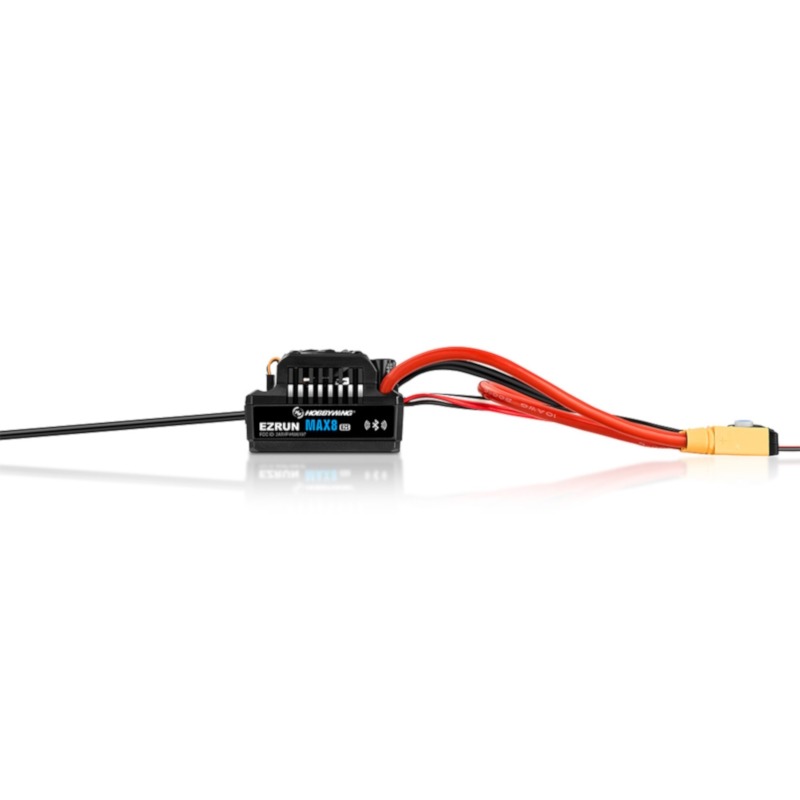

The Hobbywing EzRun MAX8 G2S is a 160A waterproof, sensored/sensorless brushless electronic speed controller (ESC) designed for 1/8 scale RC cars, short course trucks, and monster trucks operating on 3S to 6S LiPo power.

Standout Features

  • Built-in Bluetooth: Allows direct real-time data logging, parameter tuning, and firmware updates via a smartphone app without needing an external program box.
  • Turbo Timing Support: Features a 32-degree turbo timing adjustment to boost top-end RPM performance with compatible motors.
  • Thermal Management: Utilizes a patented frameless 30x30x10mm cooling fan design coupled with an internal copper thermal sink.
  • Rugged Design: Enhanced waterproof and dust-proof casing with an advanced electronic switch layout to handle extreme off-road elements.
Key Specifications
  • Continuous / Peak Current: 160A / 1050A
  • Input Voltage: 3S-6S LiPo
  • BEC Output: Adjustable 6V / 7.4V / 8.4V (6A continuous)
  • Motor Limits (1/8 size 4278): 4S LiPo KV ≤ 3000; 6S LiPo KV ≤ 2400
  • Dimensions & Weight: 60 x 48 x 40.5 mm, 192g (with wires)
  • Connectors: Pre-soldered XT90 input plug and 6.5mm female bullet motor connectors
