Hobbywing – ExRun MAX10 SCT Brushless ESC 120A

R1,829.95

Out of stock

SKU: HW30102601 Category:

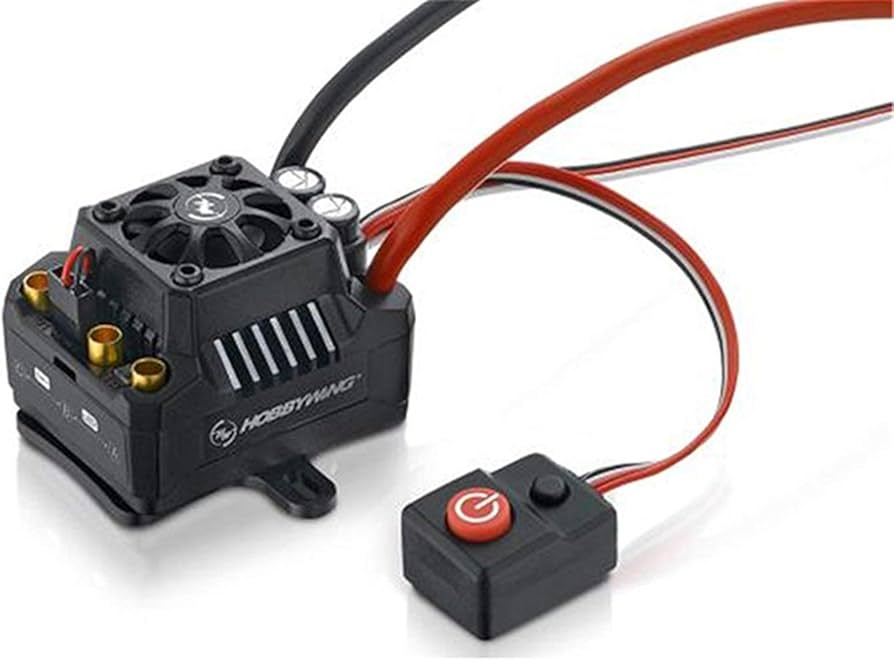

Hobbywing – 30102601 – EzRun MAX10 SCT 120A Brushless ESC

Wide Applicability

This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like
trucks, short-course trucks, monster trucks, and etc.

Product Name EzRun MAX10 SCT
Product Number 30102601
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof

1/10th

BL

SL

Yes

Specifications Cont./Peak Current

Input

BEC Output

120A/830A

2-4S LiPo/6-12 Cells NiMH

Switch Mode:6V/7.4V,4A

Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors

Red-12AWG-200mm*1/Black-12AWG-200mm*1

Black-12AWG-200mm*3

No

4.0 Bullet Connectors (Female)

ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port

Supported

Supported

Supported

Supported

Supported

FAN/Program Port

Fan Size

Voltage Range

Powered by

25.0×25.0x10.0mm

5-7.4V

Powered by BEC

Firmware Firmware Upgrade Supported
Size & Weight Size

Weight

49.0×39.5×34.7mm

105g

Applications Motors

Vehicles

KV Rating/T Count

SL BL Motors/SD BL Motors(only in SL mode)

1/10th SCTs/Truck/Monster Truck

2S LiPo:KV≤6000;3S LiPo:KV≤4000;4S LiPo:KV≤3000(36XX Series of Motors)

Brand

Hobbywing

Founded in 2005, the first company in China to engage in the Research and Development of brushless power systemsfor drones and remote control model products. A national high-tech enterprise for production and sales, the company (including the wholly-owned subsidiary Huizhou Hobbywing Motor Co., Ltd.) has a production and operation area of ​​36,600 square meters, of which 26,000 square meters of factory buildings are located in Huinan High-tech Park, Huizhou (under the jurisdiction of Zhongkai High-tech Zone), Opened in March of 2021. The Headquarter is located in Building 4, Yasen Industrial Innovation and Technology Industrial Park, Baolong Industrial City, Longgang District, Shenzhen, Guangdong Province. In the east of Shenzhen, the national high-tech park is surrounded with attractive environment with ease of transporting around. Huizhou Hobbywing Motor Co., Ltd., a wholly-owned subsidiary, is located in Zhisheng New Industrial Park, Huinan High-tech Park, Huizhou City, and undertakes the processing and manufacturing of motors and speed controllers. We are committed to provide global customers with the best brushless technology available. At present, we have grown into the largest UAV brushless power system and remote control model brushless power system (electronic speed control and brushless motor) leader in China. The company has strong technical strength, and all products have complete independent intellectual property rights.
