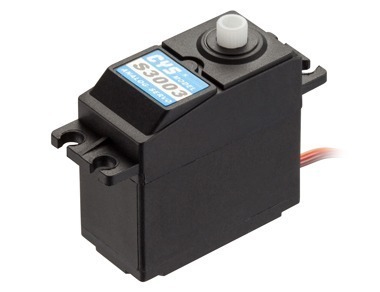

CYS Servo – S3003 Analog STD Servo 3-3.5kg

R159.00

Out of stock

SKU: CYS-S3003 Category: Tag:

Item NO.: CYS-S3003
Description : 3Kg Standard Size Analog Servo
Size : 40.8*20.1*38mm
Torque : 3.0Kg.cm ~ 3.5Kg.cm
Speed : 0.12sec ~ 0.12sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 36g±1g

Application&Features

Type: Analog
Weight: 36g±1g
Size: 40.8*20.1*38mm
Control System: ( )Pulse Width Control 1500usec Neutral
Operating Voltage: 6.0~7.4Volts
Operating Temperature Range: (-)10 to 50 degree C
Operating Speed: (6.0V)0.12sec/60° at no load
Operating Speed: (7.4V)0.10sec/60° at no loa
Stall Torque: (6.0V)3.0kg.cm
Stall Torque: (7.4V)3.5kg.cm
Operating Angle:45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain: (6.0V)20mA/idle and 160mA no load operating
Current Drain: (7.4V)20mA/idle and 200mA no load operating
Stall Current: 0.8A/0.9A
Dead Band Width: 4usec
Motor Type: Iron Motor
Bearing Type: Dual Ball Bearing*2
Horn gear spline: 25T
Gear Type: Plastic
Connector Wire: Length300mm±5mm
Wire info: Brown/Black = Negative
Red = Positive
Orange/White = Signal

Brand

CYS Servo

Who we are and What we offer ?

CYS Model Technology Co.LTD – located in Guangdong,Guangdong, which is the high-tech enterprise engaged in designing, manufacturing and selling the professional servo motor such as RC planes servo motor, Robotic servo motor, Industrial servo, high precision gear system and micro DC planetary reducer.

Product Applications

– RC Model: RC car. RC plane. RC boat . Drone. – Smart Robotic: Service robot. Educational robot,Escort robot. – Smart Industrial : Industrial machine arm. – Smart Safeguard Systems – Smart health care – Smart Home : Automatic door. Electronic locks. Automatic windows

With its advanced testing instrument, Automatic CNC machining center, CNC gear hobbing machine, high precision CNC lathes, assembly line, etc. And with the mission” Quality first, Customer first” , we’d like to offer the best even better support and service for customers.

Company Certificates

Quality Management System Certificate ISO 9001 :2015CE(EMC) Certificate
CE(EMC) Certificate-1CE(EMC) Certificate-2
CE(EMC) Certificate-1-1CE(EMC) Certificate-2-1
