R/C Off-Road Cars

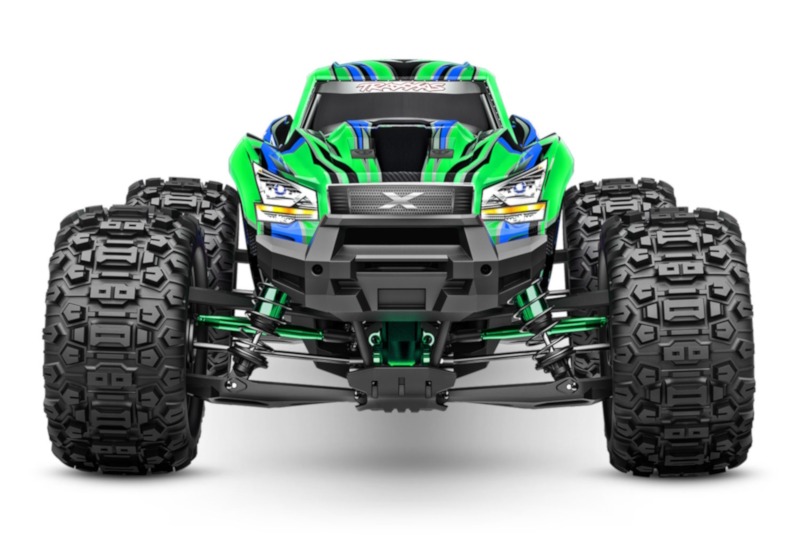

Traxxas – X-MAXX Ultimate

Name: Traxxas - X-MAXX Ultimate
SKU: T77097-4
Price: 35651.30 ZAR
Availability: BackOrder

R40,999.00

Available on back-order

SKU: T77097-4 Category: R/C Off-Road Cars Tags: RC Car, Traxxas

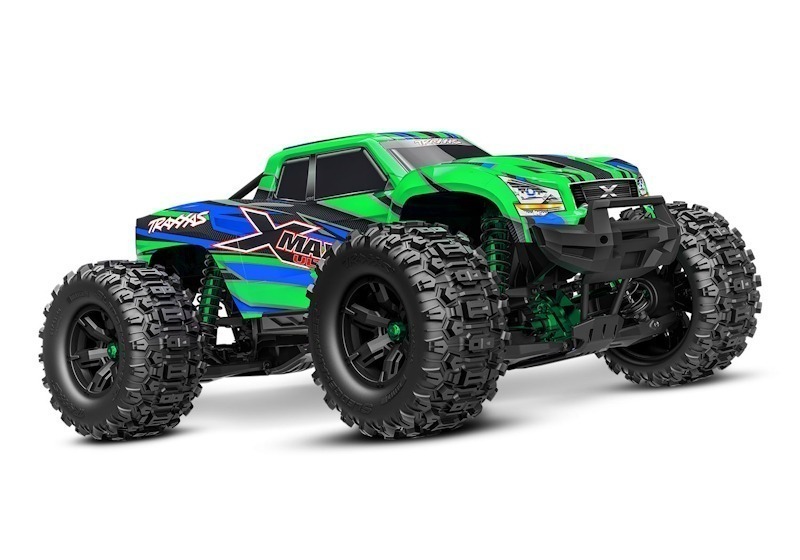

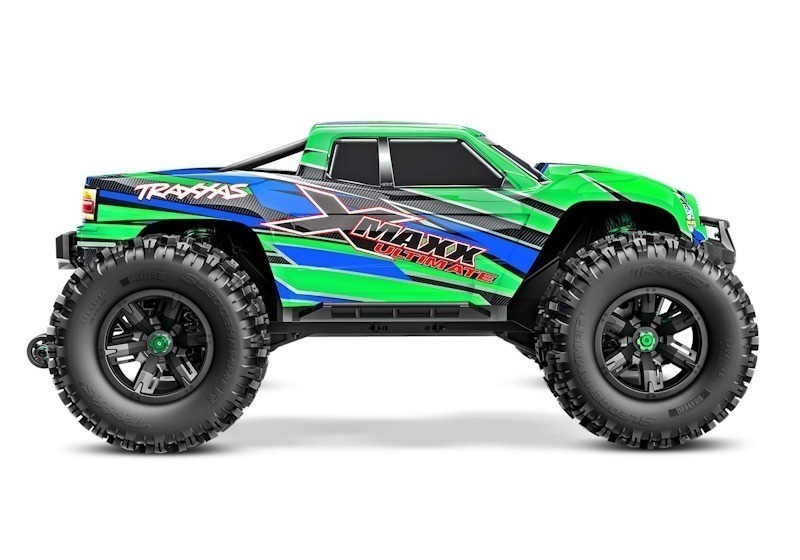

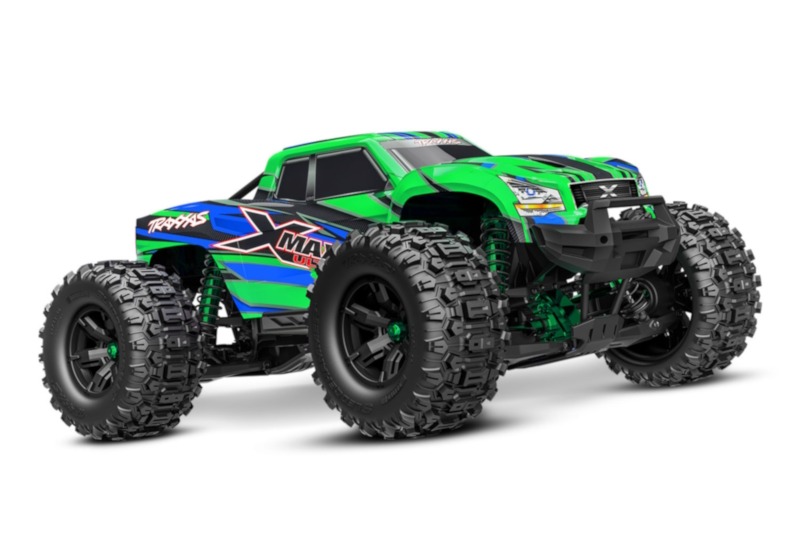

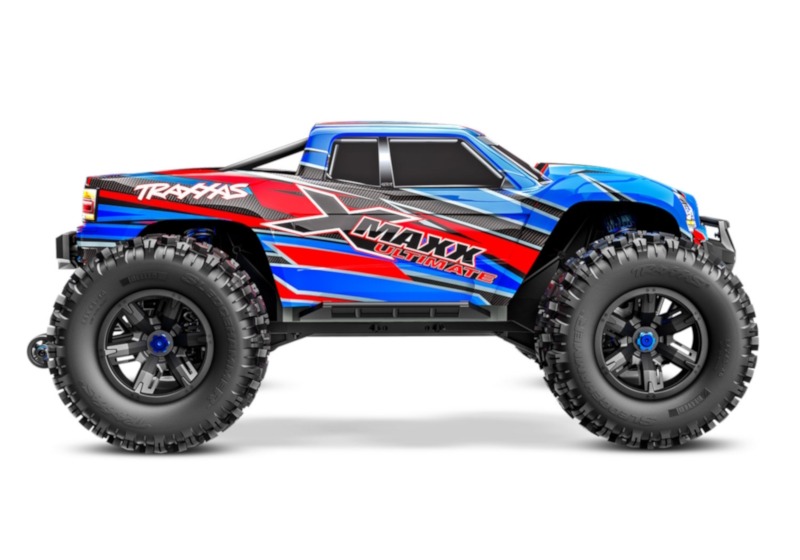

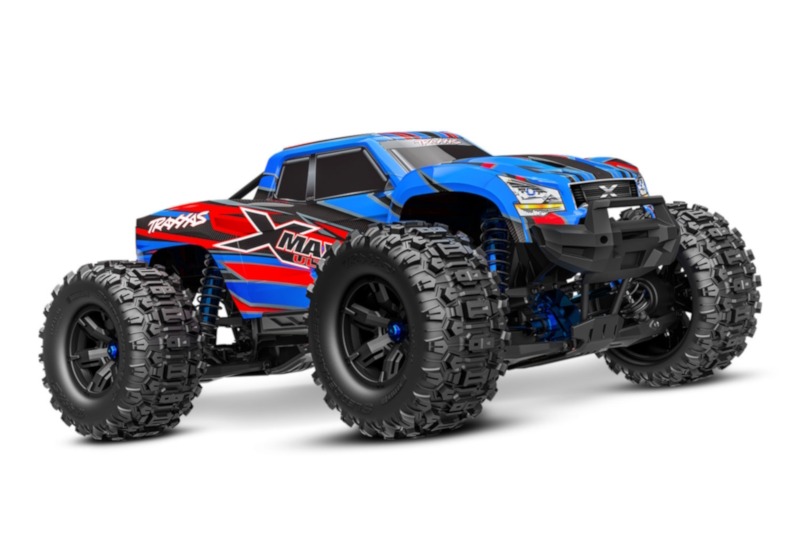

Traxxas – 77097-4 – X-MAXX Ultimate

X-Maxx^® is the truck that defines Traxxas Tough. The new 2024 Limited Edition X-Maxx Ultimate comes outfitted with over $1,000 in high-strength aluminum and performance upgrades, along with all-new belted Sledgehammer^® tires. Don’t miss your chance to own the Ultimate X-Maxx

Length:	30.67 inches (779 mm)
Front Track:	21.3 inches (540 mm)
Rear Track:	21.3 inches (540 mm)
Ground Clearance:	4.2 inches (107 mm)
Weight:	22.20 pounds (9.5 kg) 25.06 pounds (11.39 kg) with two 4s 6700 mAh LiPo batteries
Height (ride):	13.99 inches (355 mm)
Wheelbase:	18.92 inches (480 mm)
Shock Length:	7.4 inches (187 mm)
Tires (pre-glued):	Belted Sledgehammer^® 8.4″ x 4.0″ (203 mm)
Wheels:	4.3″ x 5.7″ (110×145 mm)
Wheel Hex Size:	24 mm splined hex
Speed Control:	Velineon^® VXL-8s^™
Motor (electric):	Velineon 1200XL
Transmission:	Single-speed

Overall Drive Ratio:	8.11 (stock, out-of-box)
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	Module 1.0
Chassis Structure/Material:	Composite nylon tub
Brake Type:	Electronic
Drive System:	Shaft-driven 4WD
Steering:	Aluminum bellcrank
Radio System:	TQi^™ 2.4 GHz transmitter with factory-installed wireless module
Servo:	Torque: 450 oz-in speed: 0.17 sec/ 60 degrees (6.0 volts)
Top Speed:	50+ mph with two 4s LiPo batteries and optional gearing (sold separately)
Skill Level:	6
Battery Tray:	197 mm x 52 mm x 44 mm
Required Batteries:	4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2)

High Performance Aluminum Upgrades
- 6061-T6 aluminum C-hubs
- 6061-T6 aluminum steering blocks
- 6061-T6 aluminum rear hub carriers
- 6061-T6 aluminum differential housings
- 6061-T6 aluminum motor mounts
- 6061-T6 aluminum wheelie bar wheels
- Aluminum motor washers
VXL-8s^™ waterproof electronic speed control
- 8s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link^™
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
Velineon 1200XL Brushless Motor
- 4-pole 1275 kV
- 5 mm output shaft
- Aluminum slip-on heat sink
- Dual motor cooling fans
50+ mph with Two 4s LiPo Batteries and Optional Spur Gear (sold separately)
Traxxas Stability Management^® (TSM)
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
TQi^™ 2.4 GHz 2-Channel Radio System with Wireless Module
- Factory-installed telemetry sensors
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
Clipless Body Mount System
- One-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection

Drivetrain
- Full-time shaft-driven 4-wheel drive
- Machined, hardened steel pinion and spur gear
- All-metal gears and CV driveshafts
- Torque-Biasing Center Drive^™ absorbs shocks and distributes power
- 24 mm splined wheel hexes
- Wheel hexes retained with a clip
- 17 mm hex on outside of wheel
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- Fully machined aluminum stub axles
- Splined aluminum center driveshaft
Fixed Motor Mounting System
- Rigid aluminum motor mounts
- Preset gear mesh adjustments
- No manual adjustments required
- Motor retention separate from gear mesh

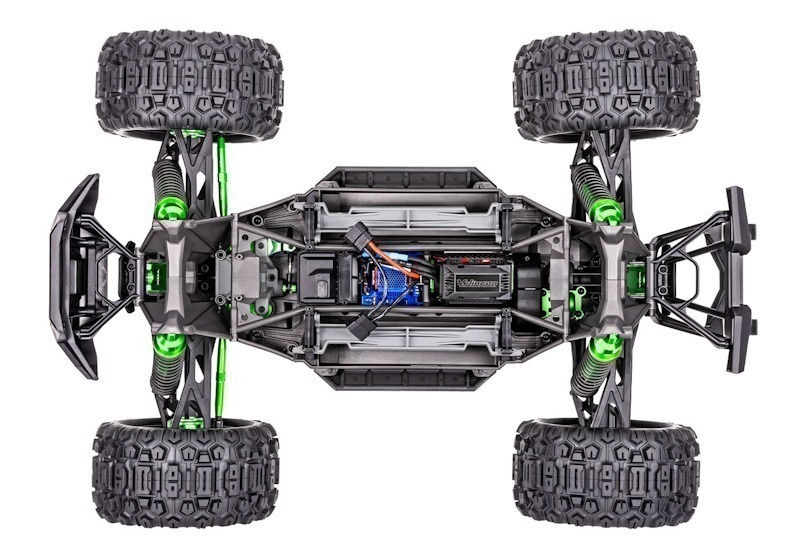

Modular Composite Chassis
- Modular chassis interlocks with front and rear bulkheads
- Motor mounts to rear bulkhead to eliminate gear crunching flex
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
Snap-Lock Battery Retention System
- No body clips or hook and loop straps
- Battery hold-downs pivot for easy access
- Adjustable for battery size
- More secure than conventional retention systems
- Integrated into chassis top brace for improved battery tray and chassis stiffness

Steering
- 6061-T6 aluminum steering bellcranks
- 2085X high-output metal gear steering servo
- Double-shear aluminum servo horn
- Heavy-duty servo saver spring

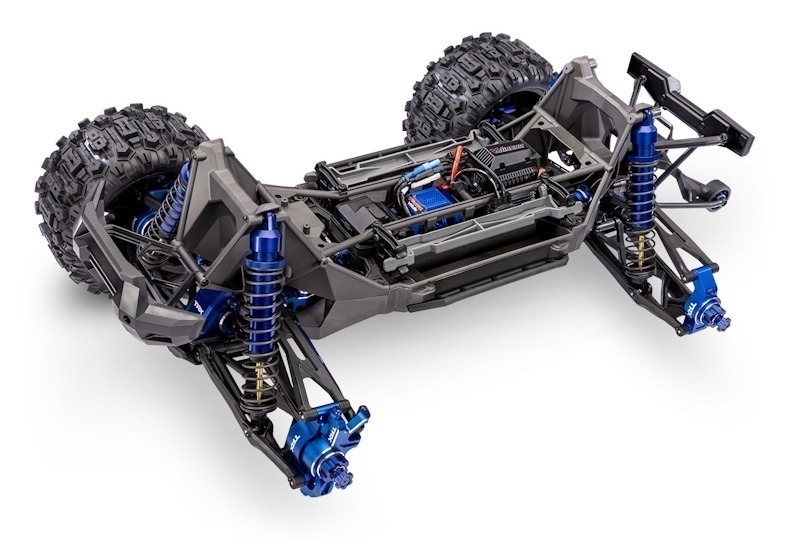

Suspension
- TUBES 7075-T6 Aluminum front toe links
- All critical suspension points have double shear strength
- High strength steel suspension pins with aluminum retainers
- Suspension pins retainers won’t come loose or “back-out”
- 4 mm machined pivot balls
- C-hub and steering block geometry maximizes steering angle
- Adjustable roll center
- Steel upper and lower tie bars
- Full contact sealed bearings used in exposed locations
Aluminum GTX^™ Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Ultra-smooth TiN-coated 5.2 mm damper shafts
- Lower seal cartridge includes integrated wiper seal combination
- Adjustable aluminum upper spring retainer
- Aluminum shock caps with pivot balls
- Fixed shock locations
- Lower spring perches bolted on

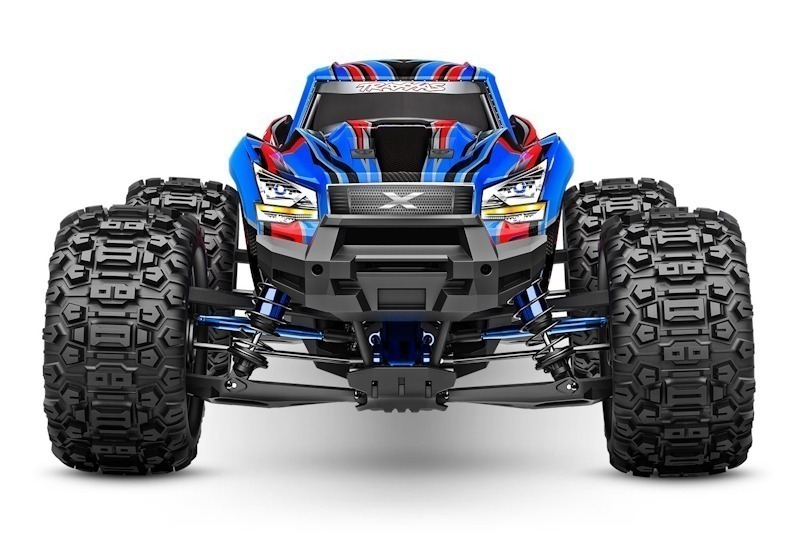

Bumpers
- Front energy absorbing rubber impact bumper
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
Wheels/Tires
- Massive 8.4″ Sledgehammer^® belted tires
  - Virtually eliminates ballooning at high speeds
  - Open tread block design
  - 2-piece foam insert
  - High-strength glue and bead design
- Large, dual-diameter wheels

Brand

Traxxas

Traxxas, The Fastest Name in Radio Control^® is the number-one selling name in Ready-To-Race^® nitro and electric radio controlled (RC) vehicles. Traxxas is dedicated to innovative thinking and fun designs that make it easy for anyone to get started in radio control. Traxxas products include trucks, cars, speedboats, and quadcopters as well as a full line of accessories for a completely personalized experience. Traxxas has been engineering and building the world’s fastest and most innovative Ready-To-Race® radio-controlled performance machines since 1986. Traxxas models are fully assembled with powerful, feature-rich radio systems and are Ready-To-Drive® in just minutes, including the 100mph Traxxas XO-1 supercar. Traxxas performance, durability, and world-class customer support all come together to deliver an award-winning radio-controlled experience that’s designed to last for years of fun.

Traxxas Firsts

FIRST Fuel Burning Ready-to-Run RC
FIRST Ready-to-Run RC
FIRST Driver-actuated Forward/Reverse Transmission
FIRST Remote-operated Locking Differentials
FIRST High/Low Transmission
FIRST Auto-shifting 2-Speed Transmission
FIRST Waterproof Electronics
FIRST 2.4GHz Transmitter with Apple iOS interface
FIRST 100mph RTR Vehicle
FIRST Self-Righting Monster Trucks
