Traxxas – 58094-1 – 2017 Ford Raptor
Ford F-150 Raptor Styling,
Award-Winning Slash Performance!

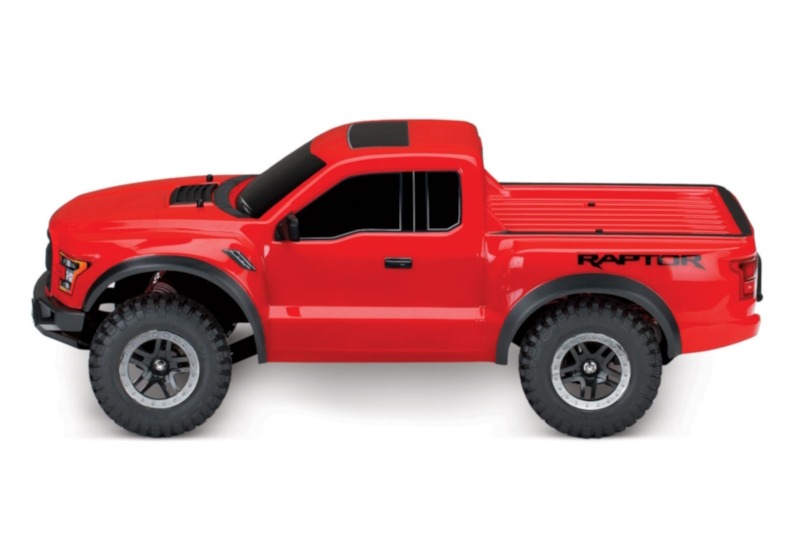

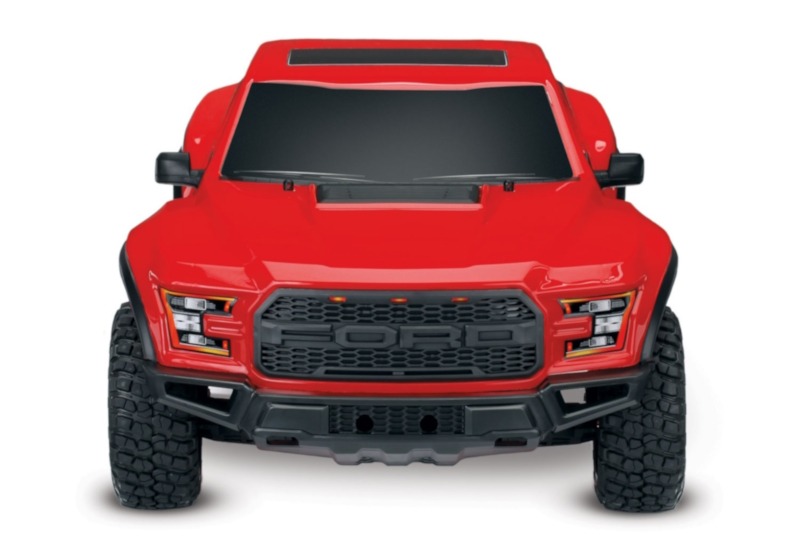

The Ford® Raptor replica from Traxxas takes you off-road with a whole new level of scale realism. The sleek Raptor body is fully detailed with an injection molded nylon composite grill and front bumper to truly capture the depth and detail of Ford’s original design. Integrated hood vents and side mirrors complete the look. The heavy-duty body is extra tough for all your off-roading adventures.
| Length |
|
22.36 inches (568 mm) |
| Front Track |
|
11.65 inches (296 mm) |
| Rear Track |
|
11.65 inches (296 mm) |
| Weight |
|
76.2 ounces (2.16 kg) |
| Height (overall) |
|
8.425 inches (214 mm) |
| Wheelbase |
|
13.2 inches (335 mm) |
| Front Shock Length |
|
Long |
| Rear Shock Length |
|
XXLong |
| Front Tires |
|
Scale All-Terrain; 2.2″ |
| Rear Tires |
|
Scale All-Terrain; 2.2″ |
| Front Wheels |
|
2.2″ Satin-Finish “beadlock” with black split-spoke center |
| Rear Wheels |
|
2.2″ Satin-Finish “beadlock” with black split-spoke center |
| Speed Control Type |
|
Waterproof XL-5 ESC |
| Motor (electric) |
|
Titan® 12T 550 (12-turn) |
| Gear Ratio (internal) |
|
2.72 (final drive: 12.58) |
| Differential Type |
|
Steel Composite Planetary |
| Gear Pitch |
|
48-Pitch |
| Transmission |
|
Metal Gear Magnum 272™ |
| Steering |
|
Bellcrank |
| Chassis Type |
|
Modified Tub |
| Chassis Material |
|
Composite Nylon |

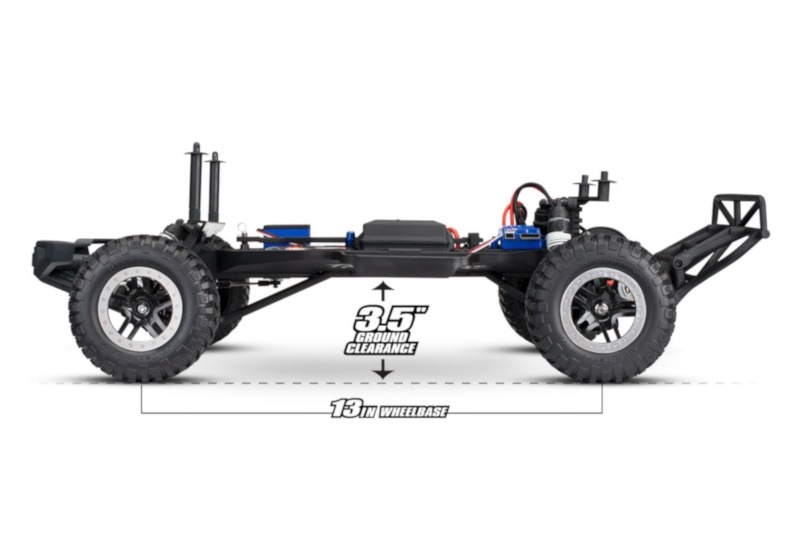

| Center Ground Clearance |
|
3.5 inches (89 mm) |
| Top Speed |
|
30+mph* |
| Skill Level |
|
1 |
| Radio System |
|
TQ™ 2.4GHz (2-channel) |
| Included Charger |
|
Traxxas 4-amp DC Peak Detecting Fast Charger |
| Included Batteries |
|
Traxxas Power Cell NiMH Battery with iD® |
| Required Batteries |
|
4 “AA” (transmitter) |
|
| Input voltage: |
|
4-7 Cells (4.8 to 8.4 Volts DC) |
| Case Size: |
|
31 mm x 55 mm x 15.5 mm |
| Weight: |
|
2.44 Ounce |
| Motor Limit: |
|
15-turns** (540 Size)
12-turns** (550 Size) |
| On Resistance Forward: |
|
0.007 Ohms |
| On Resistance Reverse: |
|
0.014 Ohms |
| BEC Voltage: |
|
6.0 VDC |
| BEC Current: |
|
1A |
| Power Wire: |
|
14 Gauge / 5″ |
| Input Harness Wire: |
|
26 Gauge / 9″ |
| PWM Frequency: |
|
1600 Hz |
| Low Voltage Detection (LVD): |
|
2-Stage indicators, switchable (on or off) |
| Thermal Protection: |
|
Thermal shutdown |
| Profile selection: |
|
Sport Mode:
100% FWD, 100% brakes, 100% REV
Race Mode:
100% FWD, 100% brakes, no REV
Training Mode:*
50% FWD, 100% brakes, 50% REV |
| Single-button setup: |
|
Yes, Traxxas EZ-Set® |
| For full details, click here |
|
*Patented **Properly Geared |
|
MODEL 58094-1: Fully-assembled, Ready-To-Race®, with TQ™ 2.4GHz radio, 4-amp DC Peak Detecting Fast Charger, Waterproof Electronics with XL-5 Electronic Speed Control and ProGraphix® painted body.
* With 7-cell battery and included optional 23-tooth pinion gear.
