RGT Racing – Suzuki Jimny New – Cruiser V3

RGT Cruiser RC4 V3 with Suzuki Jimny Body

Basing on RC4 V2 platform, RGT team redesigns and upgrades V2 into V3 version. Thus, the RGT Cruiser RC4 V3 is a new and better off-road crawler with higher performance.
Compared to RC4 V2 version in structure, not only retaining the original features, such as the integrated chassis rail, the steel solid link, all bearing, precise universal transmission and adjustable oil shock, the RC4 V3 also adds the following features: the more powerful one-piece axle housing design the removable axle cover and the gear inside the diff change into metal material the bigger steering angle which could reach 45 degrees maximum positive Ackerman angle. Besides, the battery tray mounted in front will prevent V3 from rollover when climbing.
RC 4 V3 uses a custom-made and multi-functional electronic part, which gets the ESC, LED light control and receive function together and jointly developed by Fly Sky and Hobby Wing for RC4 V3. We believe that the quality and use effect of this custom part is guaranteed, as it is designed by two famous brands in the model industry.

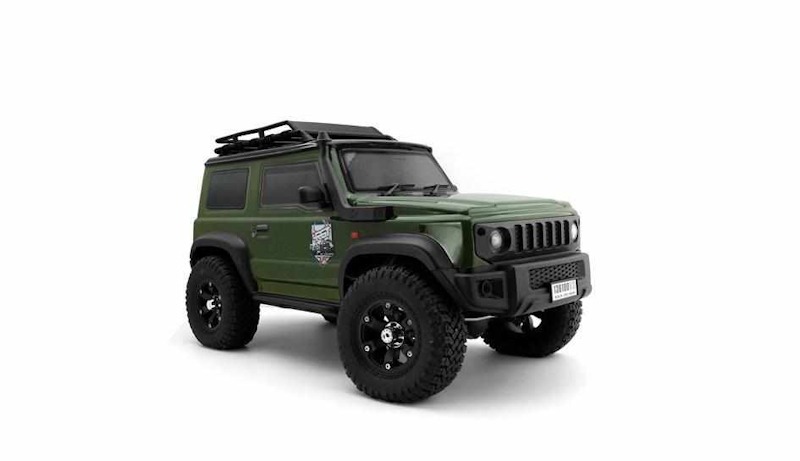

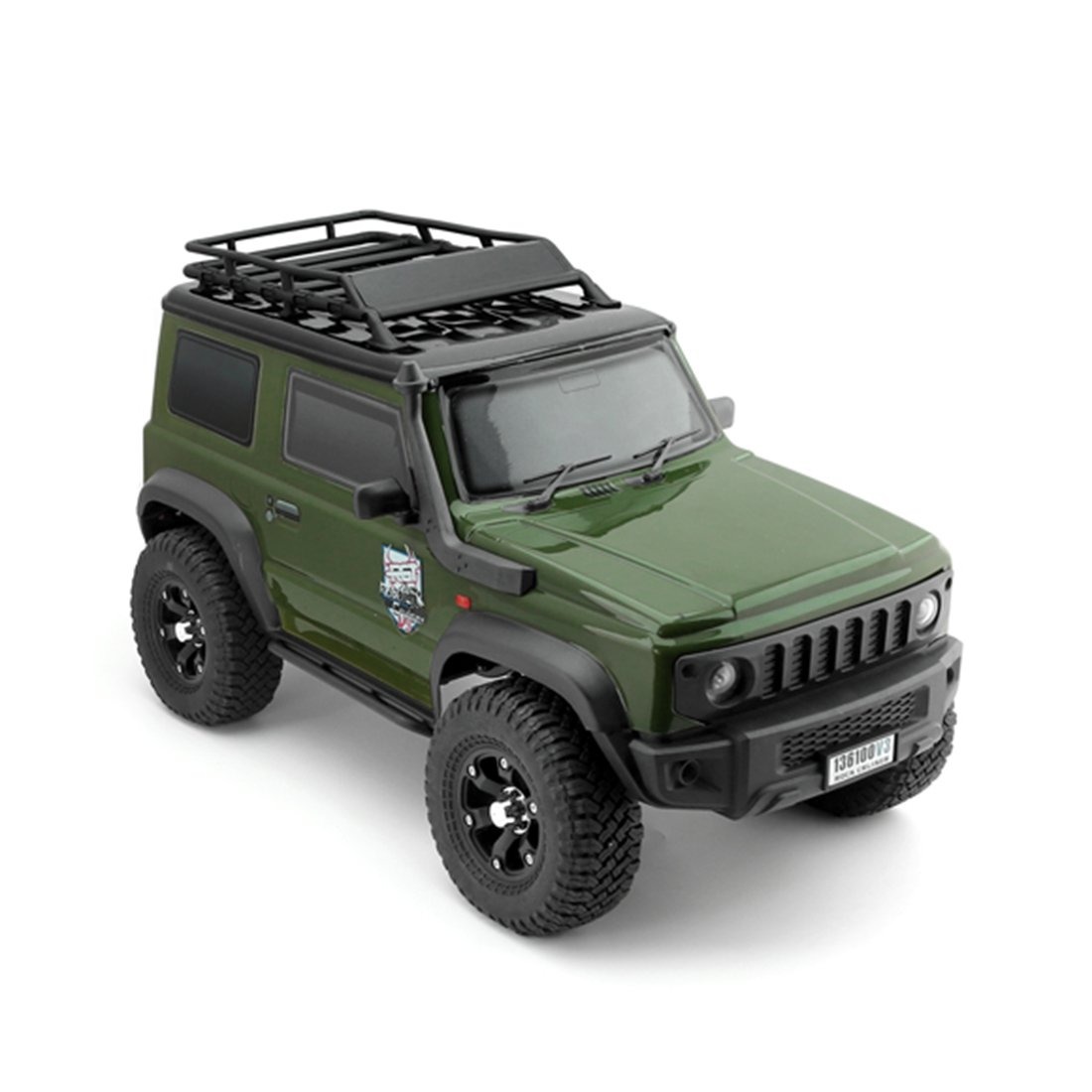

In terms of appearance, RC4 V3 has chosen an off-road vehicle with a relatively historical brand. The hidden front body post and the flip body make the surface undamaged and more beautiful, and easily replace the battery. With the added body accessories, such as front and rear bumper, air grill, snorkel, rear-view mirror, wiper, roof rack, etc., the RC4 V3 shows more realistic and awesome. Also, RC4 V3 is equipped with multifunctional light set with angel eyes and front and rear turning signals. More, the all-new beadlock wheel with a spare tire is another important design point.

Features：

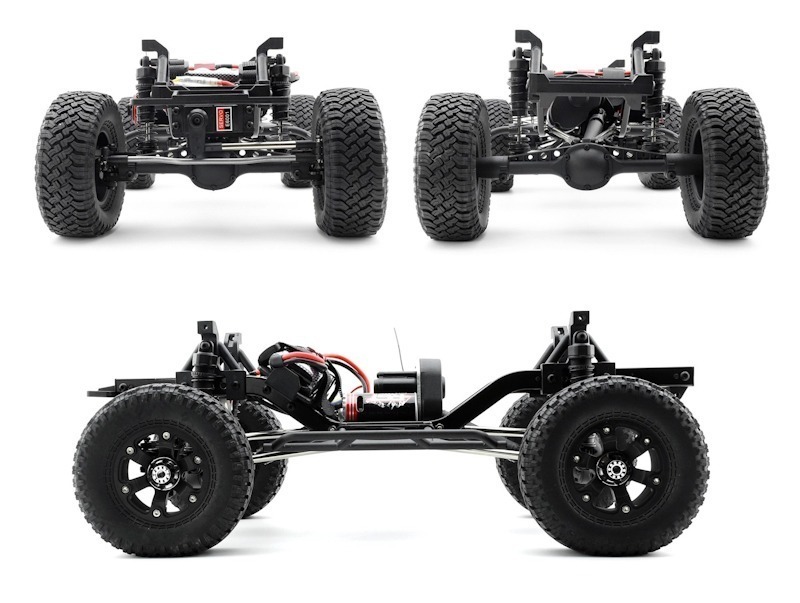

– New 1.0 Steel C-type chassis rail with movable battery tray mounting in front or rear.

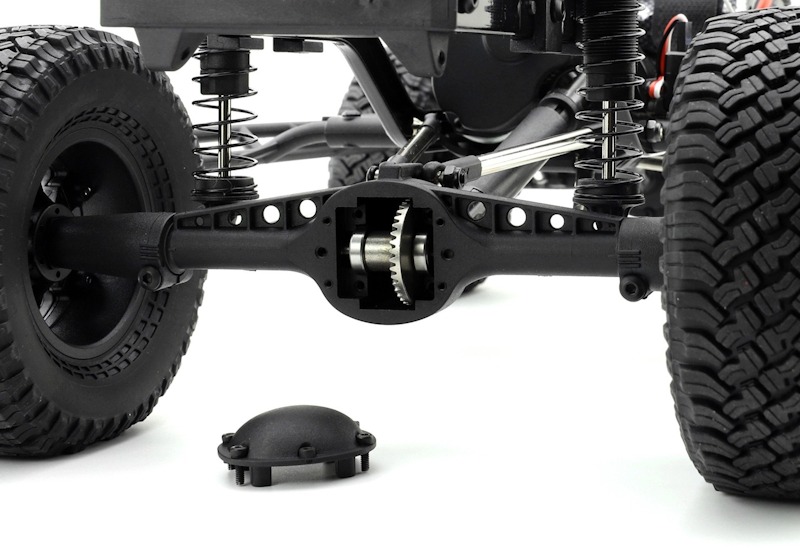

– All ball bearing, New One-piece molded axle housing, the metal spool gear and removable gear cover could be installed for option, more realistic.
– New steering structure, the 45 degrees steering angle maximum, Positive Ackerman Angle, CVA universal metal driveshaft.

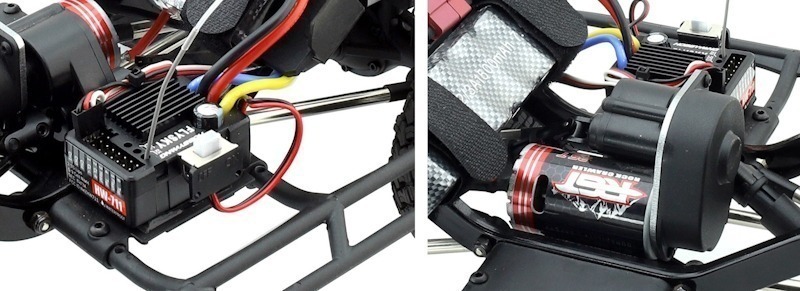

– New special custom waterproof 40A ESC, 4 channel Receiver and Intelligent Light Control three-in-one electronic system, jointly developed by Fly Sky and Hobby Wing.
– Full 4 wheel drive, with telescopic UJ main Drive Shaft ,Nickel-plated heavy duty steel links.
– 1.9 inch beadlock wheel, high realistic, easy to maintain.
– Hidden front body post and flip body design, no hole in body surfaceRealistic Bodyshell, equipped with front and rear bumper, grill, snorkel, rear-view mirror, wiper, roof rock and other body accessories, and the smart LED light set.

Specification Parameter:
Length: 465 mm（18.13in）
Width: 215mm (8.36)
Height: 230mm (8.97in)
Wheelbase: 255mm (9.95 in)
Ground Clearance: 68mm (2.65in)
Gear Ratio: 88:1
Wheel: 19”100*38mm (3.9*1.48in)
Weight: 1.94KG
Motor: RC 390
Servo: 6KGESCHW-711
Transmitter: 2.4GHz
Battery: Ni-Mh 7.2V 1500mAh
