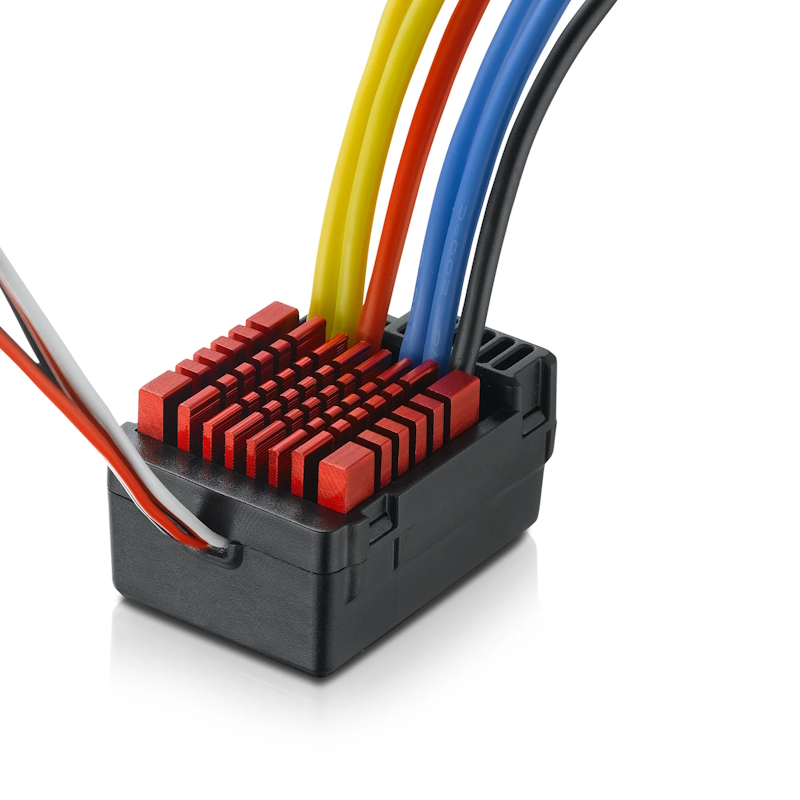

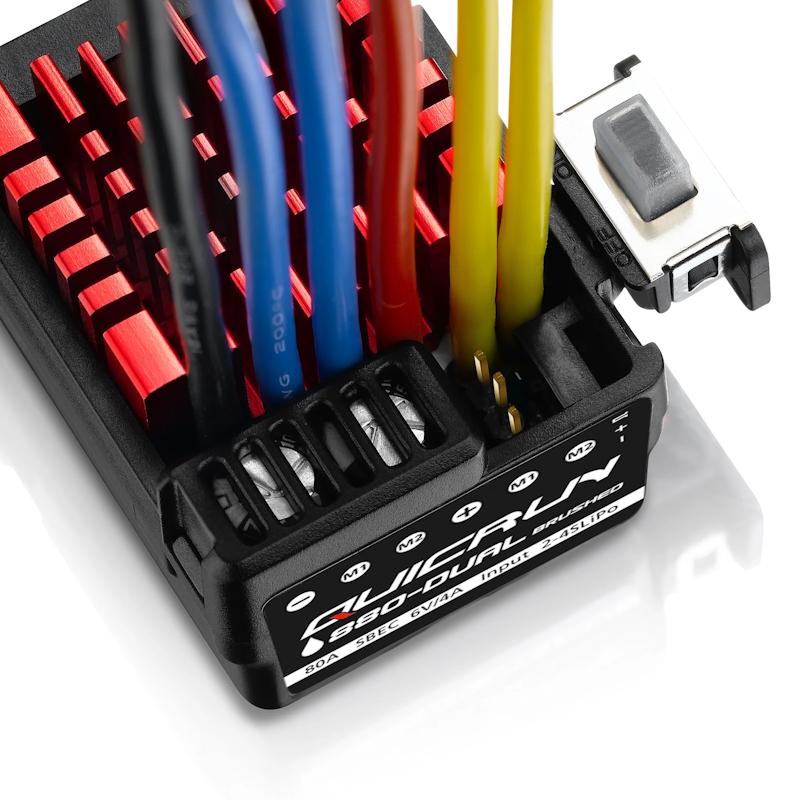

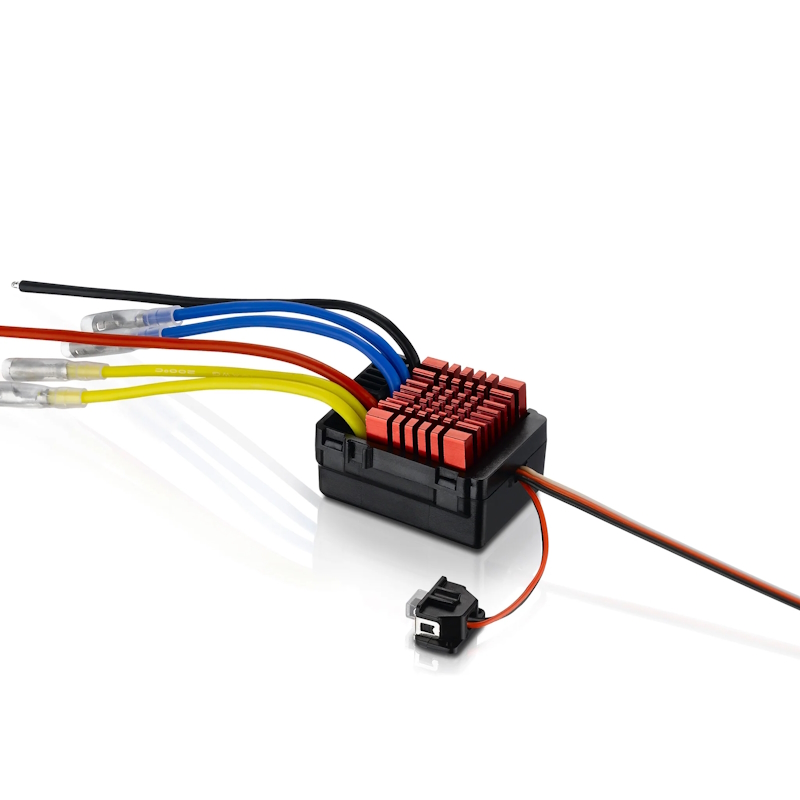

Hobbywing – QuicRun 880 Dual Brushed ESC

R969.95





Availability: Only 1 left in stock

SKU: HW30120301 Category: Tags: ,
Added to wishlist
Hobbywing – 30120301 – QR880 DUAL Brushed ESC: Suitable for 1:8 / 1:10 All purpose

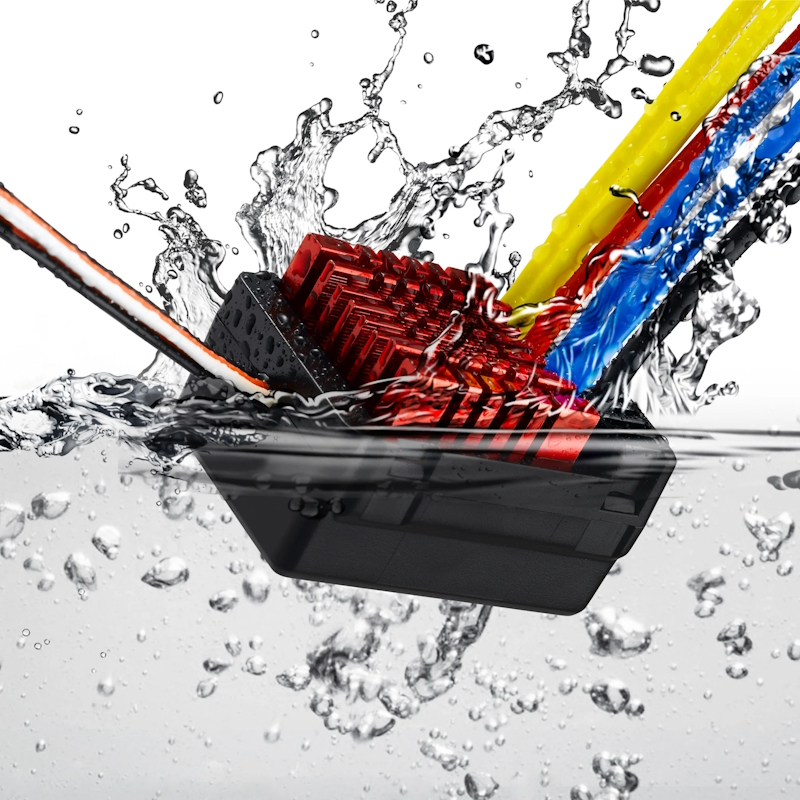

Water-proof and dust-proof for all weather races.



Please make sure to uninstall the cooling fan before using this ESC in water.

Clean and dry soon after use to avoid rusting the connectors.

  • Fully waterproof design for all conditions. (Note: Please clean and dry it after use for avoiding rusty connectors).
  • HOBBYWING patented copper heat-conductive plates attached to the MOSFET board allows the internal heat to be quickly transferred to the aluminum heat sink for great heat dissipation.
  • Built-in switch-mode BEC with cont. current of 4A.
  • Tunable drag brake and drag brake rate for different vehicles, tracks, and control feel.
  • Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
  • 9 levels of acceleration/ punch from soft to aggressive for different vehicles, tires and tracks.
  • Proportional brake with 9 levels of initial brake force, maximum brake force, and drag brake force.
  • Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
  • Separate programming port to easily connect the LED program card (purchase separately) to the ESC.
  • ESC programming via HOBBYWING LED Program Card (purchase separately).

Model / SKU: QUICRUN-880-DUAL-Brushed ESC / 30120301
Cont./Peak Current: 80A/400A
Motor Type Supported: Brushed Motor (540, 550, 775 Size Motor)
Applicable Car: Various 1/10th & 1/8th Vehicles
Motor Limit: Brushed Motor Limit with 2S LiPo /6S NiMH: ≥ 12T or RPM<30000@7.4V (540, 550 Size Motors)
Brushed Motor Limit with 3S LiPo /9S NiMH: ≥ 18T or RPM<20000@7.4V (540, 550 Size Motors)
Brushed Motor Limit with 4S LiPo /12S NiMH: ≥ 24T or RPM<15000@7.4V (540, 550 Size Motors)LiPo / NiMH Cells: 2-4S LiPo or 5-12S NiMH
BEC Output: 6V@4A (Switch-Mode)
Connectors: Input End: No Connectors Output End: 4.0mm Female Bullet Connectors
Size/ Weight: 45.9*34.7*26.5mm/ 75g
Programming Port: Separate Port
Waterproof Waterproof

Note: WP-880-DUAL BRUSHED ESC has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turn of the motors needs to be increased.



Brand

Hobbywing

Founded in 2005, the first company in China to engage in the Research and Development of brushless power systemsfor drones and remote control model products. A national high-tech enterprise for production and sales, the company (including the wholly-owned subsidiary Huizhou Hobbywing Motor Co., Ltd.) has a production and operation area of ​​36,600 square meters, of which 26,000 square meters of factory buildings are located in Huinan High-tech Park, Huizhou (under the jurisdiction of Zhongkai High-tech Zone), Opened in March of 2021. The Headquarter is located in Building 4, Yasen Industrial Innovation and Technology Industrial Park, Baolong Industrial City, Longgang District, Shenzhen, Guangdong Province. In the east of Shenzhen, the national high-tech park is surrounded with attractive environment with ease of transporting around. Huizhou Hobbywing Motor Co., Ltd., a wholly-owned subsidiary, is located in Zhisheng New Industrial Park, Huinan High-tech Park, Huizhou City, and undertakes the processing and manufacturing of motors and speed controllers. We are committed to provide global customers with the best brushless technology available. At present, we have grown into the largest UAV brushless power system and remote control model brushless power system (electronic speed control and brushless motor) leader in China. The company has strong technical strength, and all products have complete independent intellectual property rights.

Reviews

There are no reviews yet.

Be the first to review “Hobbywing – QuicRun 880 Dual Brushed ESC”
