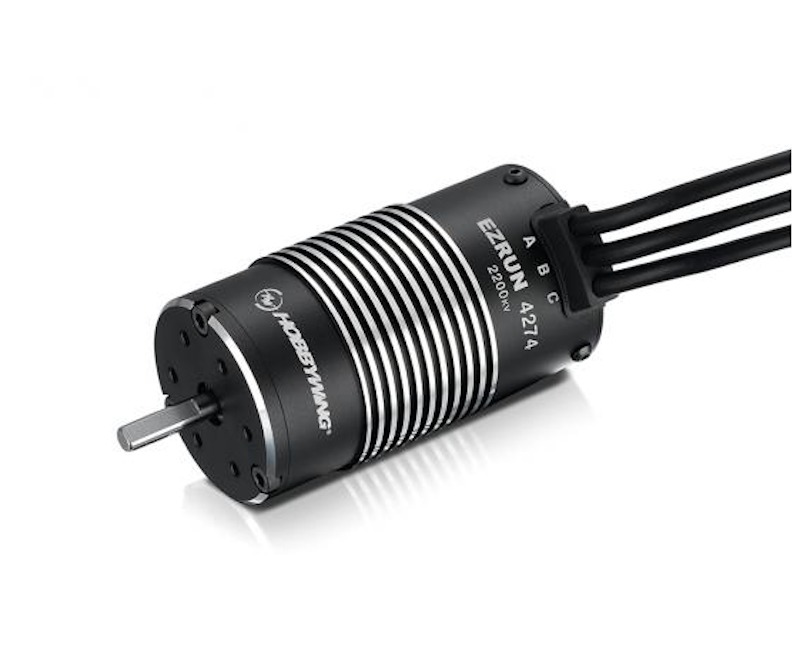

Hobbywing – 30402500 – EZRUN SL-4274 2200KV Black Brushless Motor
High Torque
The 4 pole design will guarantee the motor to produce very large amounts of torque,
a much faster acceleration response and a very stable output of power to the drive-train.
High Efficiency
Hobbywing’s temperature control technology has been designed to protect the motor
from being damaged by heat thus less heat more efficient the motor will run and
perform. The output performance of this motor has an efficiency rate of up to 90%
meaning that if the energy consumption of the motor is at 1000 watts your guaranteed
that 900 watt of that power will be available and no less.
Great Construction
The motor housing is made from hard anodized aluminum, motor windings are
wound from pure oxygen-free double insulated copper wire, the advanced rotor
structure is designed to handle high temperature from the use of rare earth
magnets, output shaft from high quality polished alloy steel and the imported
bearings which are implemented are high precision metal caged for a minimum
to zero friction which in turn will guarantee strength, outstanding performance,
high durability and smoothness of the motor.
Wide Application
This motor can also provide a powerful upgrade solution for all popular
1/8th scale monster trucks such as TRAXXAS E-REVO, E-MAXX, HPI
SAVAGE, and THUNDER TIGER E-MAT plus other trucks and buggies.
| Product Name | EzRun 4274-SL-2200KV | |
| Product Number | 30402500 | |
| Type | Scale
Brushed/Brushless Sensored/Sensorless Pole Count |
1/8th
BL SL 4 |
| Specifications | KV Rating
LiPo Cells No-load Current(A) |
2200
2-6S 5 |
| Size & Weight | O.D.(mm)
Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing |
42.0 (1.654in)
74.0 (2.913in) 5.0 (0.196in) 418 (14.745oz) D5*D16*t5 D5*D13*t4 |
