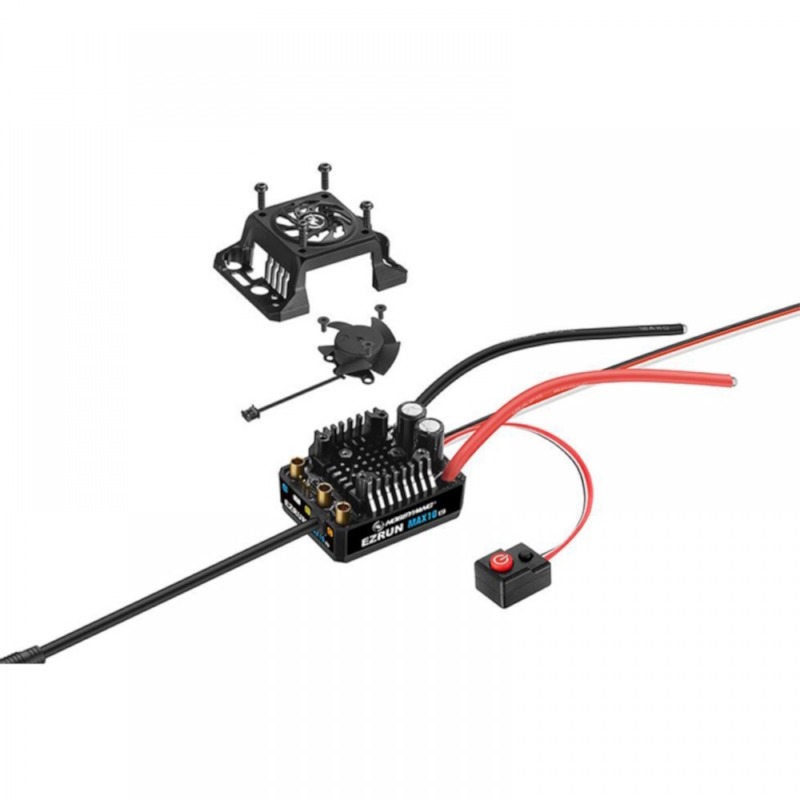

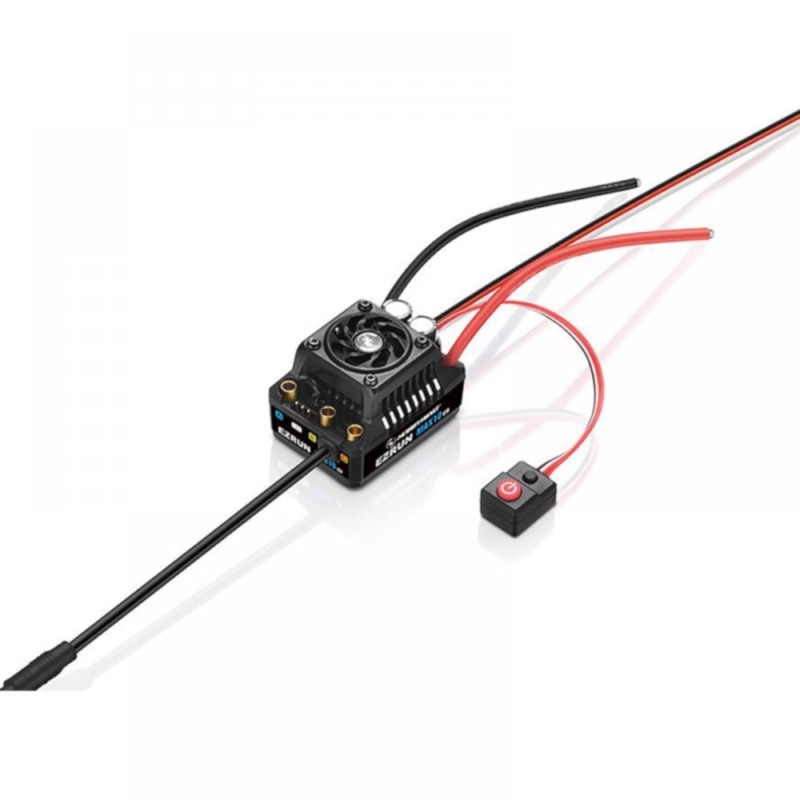

Hobbywing – EZRUN MAX10 G2 – 80A Brushless ESC

Hobbywing EZRUN MAX10 G2 Brushless 80A Electronic Speed Control

Generation 2

1/10th Buggy, On-road, and Light-weight SCT/Truck/Monster Truck

What is the box?

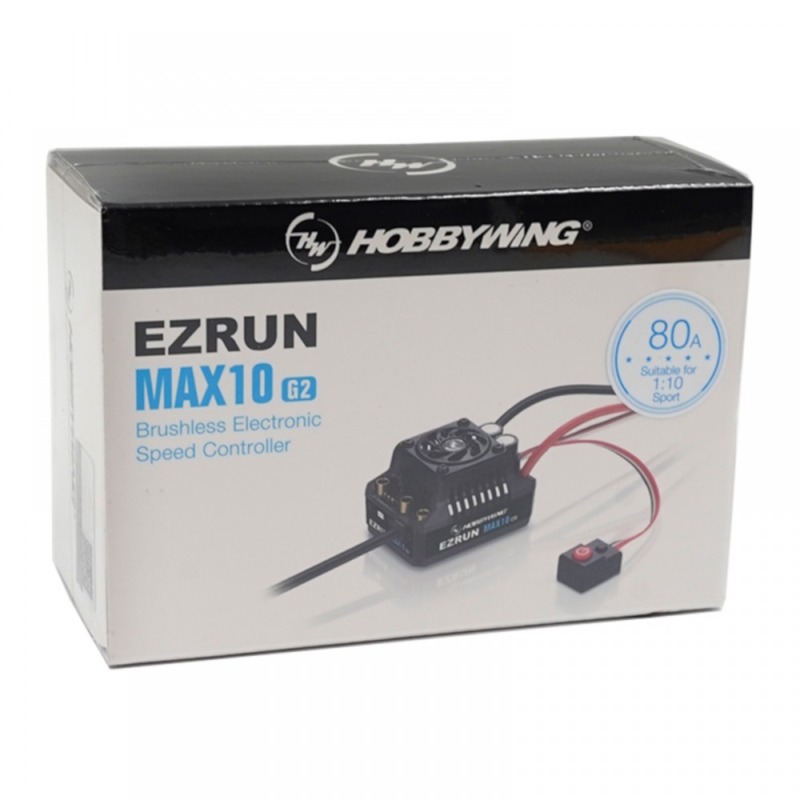

• (1) Ezrun MAX10 G2 ESC
• (1) User’s manual
• (1) HOBBYWING decal

Features

The Hobbywing EZRun Max10 G2 80A 30102604 is an impressive electronic speed controller designed for RC vehicles and is known for its high performance and reliability. It’s a popular choice among hobbyists and enthusiasts who are into RC cars, trucks, and other recreational vehicles. With its advanced features and specifications, the Max10 G2 80A ESC is a great option for those looking to enhance the speed, control, and overall performance of their RC vehicles.

One of the key features of the Hobbywing EZRun Max10 G2 80A 30102604 is its powerful 32-bit microprocessor, which provides precise and responsive control over the motor. This allows for smooth and efficient operation, giving users the confidence to push their vehicles to the limit without sacrificing stability or durability. The ESC also features an integrated switch mode BEC with a maximum output of 6A, ensuring a consistent and reliable power supply to the vehicle’s electronics.

The Max10 G2 80A ESC is designed to handle high-voltage inputs, with a maximum input voltage of 3S Lipo or 9-cell NiMH. This makes it suitable for a wide range of applications, from casual bashing to competitive racing. The ESC is also equipped with multiple protection features, including low-voltage cutoff, thermal overload protection, and motor lock-up protection, which help to safeguard both the ESC and the connected motor from damage due to misuse or external factors.

In addition to its technical prowess, the Max10 G2 80A ESC is also user-friendly, with a built-in data logger that allows users to record and review various performance metrics, such as motor RPM, voltage, and temperature. This data can be used to fine-tune the vehicle’s setup and optimize its performance for specific conditions or racing tracks. Furthermore, the ESC is compatible with Hobbywing’s programming card, which provides a convenient interface for adjusting settings and parameters without the need for complex programming equipment.

Hobbywing’s commitment to quality and innovation is evident in the design and construction of the Max10 G2 80A ESC. The use of high-quality components and materials ensures long-term reliability and performance, even in demanding operating conditions. The ESC’s compact and lightweight design also makes it easy to install and integrate into a wide range of RC vehicles, without compromising on durability or functionality.

Overall, the Hobbywing EZRun Max10 G2 80A 30102604 ESC is a top-of-the-line option for RC enthusiasts looking to upgrade their vehicles with a high-performance electronic speed controller. Its advanced features, robust construction, and user-friendly design make it a standout choice for those who demand the best in terms of speed control and reliability for their RC vehicles.

Specs:

ESC
MAX10 G2 80A

Scale Vehicles
1/10 On-road/Off-road Short Course Truck(Light-duty)

Cont./Peak Current
80A/520A

Motor Mode
Sensored and sensorless brushless mode

Input
2-3S Lipo

Motor Limit
2S Lipo: KV≤ 6000 (3652)
3S Lipo: KV≤ 4200 (3652)

BEC Output
6V / 7.4V adjustable, continuous current 5A (Switch-mode)

Programming Port
Independent

Power Connection
XT60

ESC Programming
Same

Switch Mode
Same

Capacitor protection
Yes

Waterproof
Yes

Size (L.W.H) mm
53 x 39.5 x 37.2mm

Weight g
120g (with wires)

* You must derive the correct final drive ratio (FDR) of your vehicle before pairing a 4268 motor with a 4S LiPo battery or ESC and or a motor will be overloaded. (misused). Contact your vehicle manufacturer to find out the correct gear ratio.
