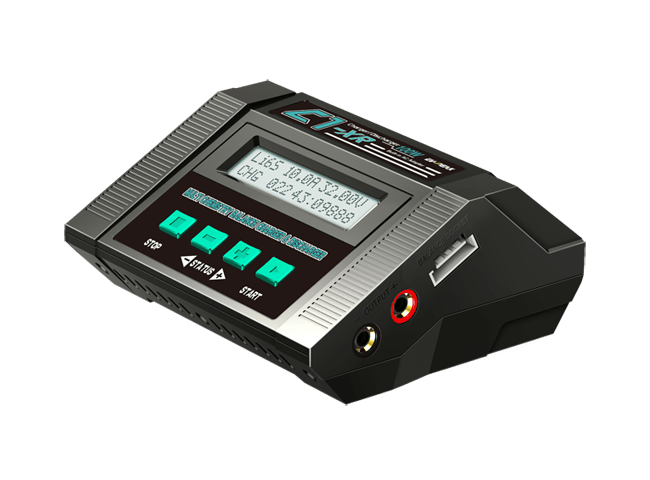

EV-Peak – C1-XR Multi-Chemistry Balance Charger

R975.00

Out of stock

SKU: C1XR Category: Tags: ,
EV-peak Chargers
EV-Peak – C1-XR Multi-Chemistry Balance Charger & Discharger



Hi-Voltage Capable
This charger features a Hi-Voltage LiHV mode that allows you to safely charge Hi-Voltage LiHV capable batteries. You can adjust the charging end voltage of this mode up to 4.40V per cell, which is considerably higher than 4.20V per cell of an ordinary LiPo battery. Charging at this higher end voltage requires a Hi-Voltage LiHV capable battery, but the power gains are significant to the overall punch and power for the R/C model. But please note: battery voltages exceeding 4.20V per cell is prohibited from sanctioned racing rules, such as ROAR, IFMAR, etc.
Dual Power Input
The power source can be 11-18V DC input or a 100-240V AC source. With a built in power supply, users can directly connect the AC power cord to the main AC input. The power supply can accept AC power from all over the world without the worry of damage.
Features:

  • Single Channel Digital AC/DC Balance Charger
  • Maximum 10A Charge Current, up to 100W
  • Hi-Voltage LiHV charging mode allows charging end voltage up to 4.40V
  • Supports up to 6S Lithium & 15 Cell Nickel Battery Packs
  • Lithium, Nickel & Lead Acid Compatible
  • Multiple Safety Functions
  • Multiple Charge Modes
  • Back-Light Screen
  • Small & Lightweight Portable Design
  • Measure the Internal Resistance of Battery Pack

Specifications:
AC Input Voltage: 100V-240V
DC Input Voltage: 11V-18V
Chemistry: LiPo, LiFe, LiHV, NiMH, NiCd, Pb
Cell Count: LiPo/Li-Ion/LiFe/LiHV: 1-6S NiMH/NiCd: 1-15 cells Pb: 2-24V
Voltage Cutoff (per cell): LiPo: 4.18-4.22V Li-Ion: 4.18-4.20V LiFe: 3.68-3.8V LiHV: 4.30-4.40V
Display: LCD blue back light (non-touch)
Dimensions: 130x115x61mm
Charge Current: 0.1A-10A
Charge Power: 100W max.
Balance Current: 400mA/cell
Cooling System: Fan
Weight: 380g
Safety Timer: 1-720min or off
Discharge Current: 0.1A-2.0A
Discharge Power: 5W max.

Memory: 10 different profiles

Brand

EV-Peak

(EV-PEAK)has been determined to become the world's leading supplier of fast and intelligent charging management system, with products exported to Europe, America, Japan and Korea, as well as Hong Kong and Taiwan. Our products are widely used in model airplanes, drones, electric vehicles, robots and other fields.
