Tamiya – 56348 – RC 1/14 Mercedes-Benz Actros 3363 6X4 Gigaspace
RC Mercedes-Benz Actros
Description
The 2012 Truck of the Year award-winning Actros series is the flagship of the world’s leading truck manufacturer, Daimler AG (Germany). This RC model assembly kit recreates the dual rear axle-driven Actros 3363 6×4 GigaSpace model, which runs on a 15.6-liter turbocharged inline-6 engine capable of 630hp. The model’s highly detailed body breathtakingly captures the powerful form of the truck, including depictions of auxiliary lights on cab roof and bumper. Its ladder frame chassis features aluminum side channels with resin cross members, while the suspension employs leaf springs and friction dampers. An assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter.
Realistic Lights, Sounds, and Vibration
Tamiya Multi-Function Control Units (included for Japanese market only, available separately overseas) offer light, sound, and vibration operation to accompany your RC truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.
Specifications
Length: 538mm, Width: 195mm, Height: 305mm, Weight (without optional parts): Approx. 3.9kg
Wheelbase: 237＋103mm
Tread: 155mm (Front), 138mm (Rear, Double Tire)
Chassis: Aluminum & Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle (Front/Rear): 0°/0°
Camber Angle (Front/Rear): 0°
Toe Angle: 0°(Front & Rear)
Dampers: Aluminum Dummy Dampers (Front & Rear)
Drivetrain: Rear Double Axle Drive
Transmission: 3-gear transmission (gear shifting operated via transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff. Gear: 3-bevel diff
Motor: Type 540
Tire Width/Diameter: 30mm/85mm (Front), 22mm/83mm (Rear)
Requires 4-channel radio, 7.2V battery pack & charger, and TS paint. (sold separately).
- Adjustable Gear Ratio 3-speed transmission
- Bearings Metal bushings
- Body Material ABS Plastic
- Body Stickers Included
- Chassis Material Aluminum & plastic
- Chassis Type Semi-Truck
- Construction Type Assembly kit
- Differential Type Gear
- Drive Type 2WD
- Electronic Speed Control (esc) Sold Separately
- Led Light Buckets Yes
- Led Lights Not Included, but sold separately
- Motor 540-brushed type
- Required To Complete 4-channel radio gear, servos, ESC, 7.2volt battery & charger, and Tamiya TS Paints
- Scale 1/14
- Shock Damper Friction damper
- Special Feature 1 Length: 538mm, Width: 195mm, height: 305mm
- Special Feature 2 The body of the Actros 3363 is recreated accurately using newly-molded parts differentiating it from the 1851 spec model
- Special Feature 3 The tried and tested Tamiya 3-axle chassis utilizes a tough ladder frame with aluminum side channels and resin cross members. A realistic drivetrain setup sees the front mounted motor powering twin rear axles.
- Special Feature 4 3-speed transmission can be controlled via 4ch R/C transmitter. Item 7255252 is the perfect radio to compliment the Actros kit
- Special Feature 5 Metal leaf spring dampers with built-in coil springs provide durable suspension
- Special Feature 6 Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailers

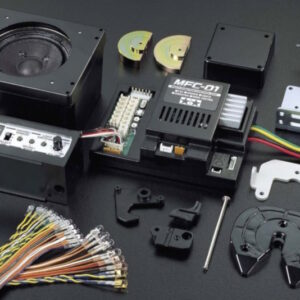

- Special Feature 7 Compatible with the tractor truck option parts (TROP) Items 56531, 56532 and 56536. Use with Multi-Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds
- Special Feature 8 Compatible with the tractor truck option parts (TROP) Items 56531, 56532 and 56536. Use with Multi-Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds
- Suspension Leaf spring
- Terrain Use On-Road
