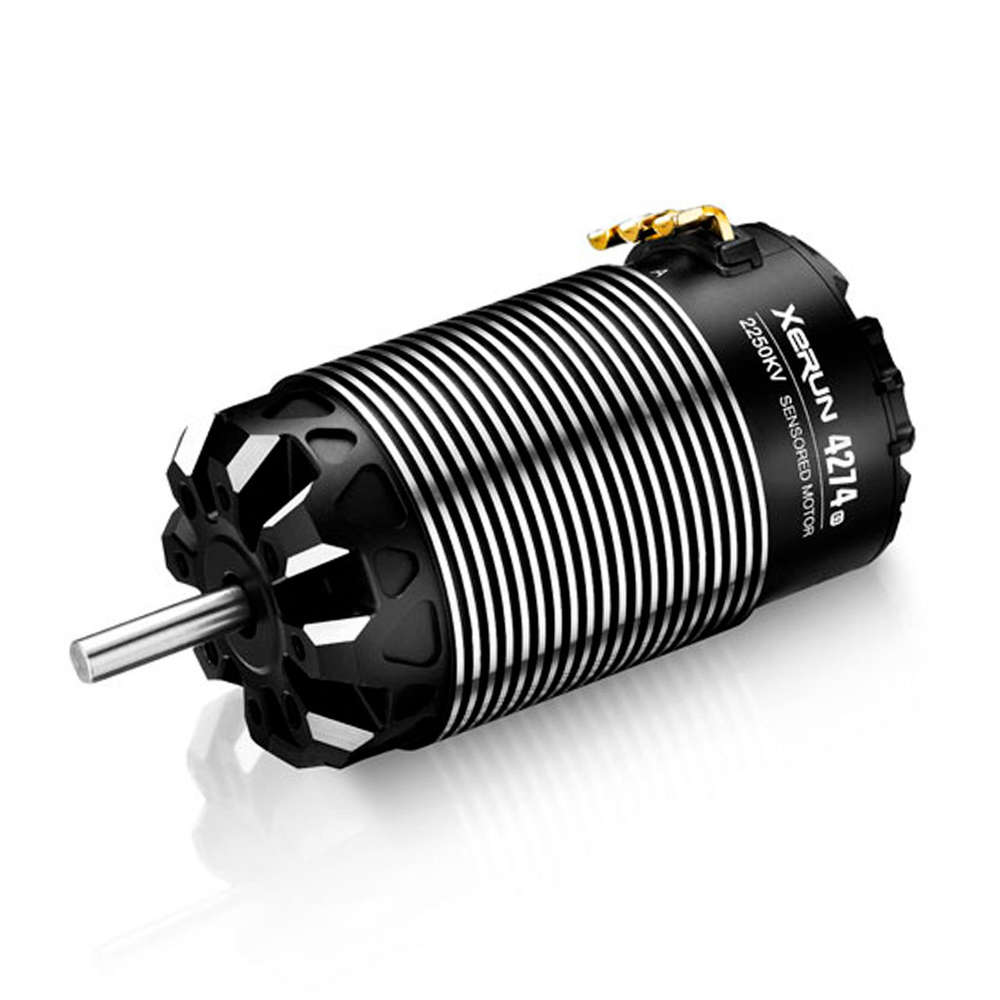

Hobbywing – XERUN-4274SD-2250KV-G3 Brushless Motor

R3,565.00

Out of stock

SKU: HW30405001 Category:
Hobbywing – 30405001 – XERUN 4274SD 2250KV Black G3 Sensored Brushless Motor



A special feature of these motors is the installed chip that’ll be recognized by Hobbywing ESCs (XERUNG XR8, XR8 Plus or XR8 Pro). The ESC creates a driving system which is handled complete by sensor. This results in more power and a finer driving experience.
On top of that the Hall-Sensor-System makes sure that the car drives clean and stable.
The motors can be used with other ESCs as well, but the sensor-mode won’t be active the whole time or at all.
In combination with the XR8 ESCs the motor offers the opportunity to use the “turbo timing”. This system is known from 1/10 cars – the ESC uses the full power of the motor.
Features:

  • Low temperature
  • Low load torque
  • High quality materials and excellent craftmanship
  • Easy montage
  • dustproof after IP5X standards (1900kV, 2200kV and 2250kV)

Technical data:

  • Scale: 1/8
  • Type: Brushless sensored
  • Pole: 4
  • U/min per Volt: 2250 KV
  • LiPo: 2-6S
  • consumtion under load: 5A
  • Timing: 20-40 Grad (adjustable)
  • Outer diameter: 42mm
  • Length: 74mm
  • Shaft diameter: 5mm
  • Weight: 354g
  • Sutiable for: 1/8 Truggy
